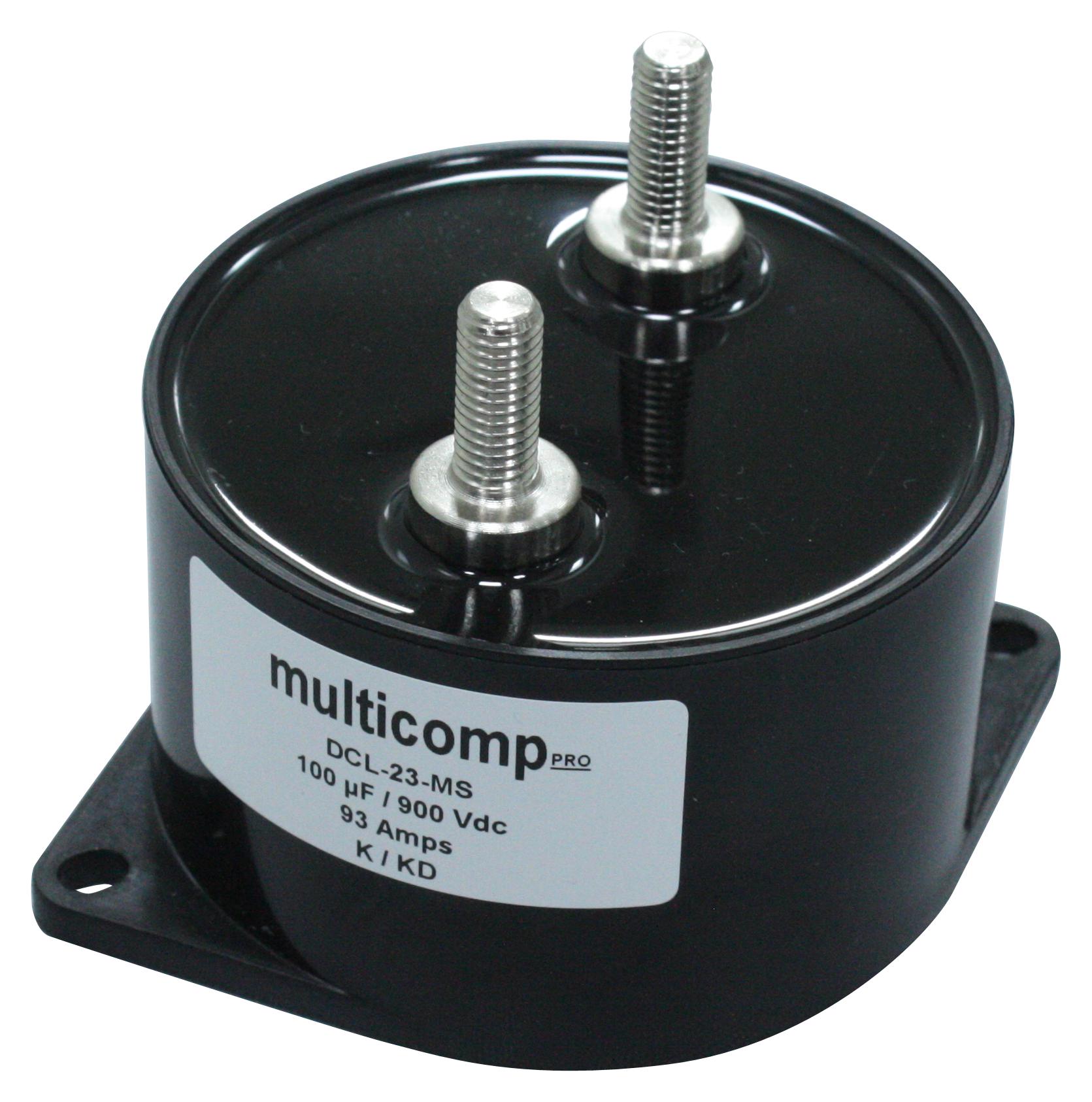

MULTICOMP PRO MP003981 DC Link Film Capacitor
The DC Link Film Capacitors with screw and stud terminals are designed for high-performance DC filtering in inverter and motor drive applications. Constructed using metallized polypropylene film, these capacitors feature low inductance, low ESR, and high thermal conductivity for durability and efficiency. They have integrated mounting flanges, flame retardant UL94-VO enclosures, and a life expectancy of up to 100,000 hours. Suitable for electric vehicle inverters, wind and solar power systems, these film capacitors ensure reliable operation in demanding electrical environments.
MULTICOMP PRO MP003981 DC Link Film Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265μF
- Rated voltage: 700V DC to 1600V DC
- Test voltage: 1.3 times rated voltage for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1,000 MΩ x μF at 25°C
- Certificates: IEC 61071, IEC 60068, UL94-VO flame retardant
- Physical dimensions vary by capacitance and voltage, typically length around 30-85 mm with various diameters
Buy the Buy multicomp DC Link Film Capacitors Part Number MP003981 Online
Purchase multicomp DC Link Film Capacitors with screw and stud terminals online today for high-efficiency, durable DC filtering in inverters, electric vehicles, and energy systems. Engineered with metallized polypropylene film, these capacitors feature UL94-VO flame retardant enclosures, integrated flanges, and a long life expectancy of up to 100,000 hours. Suitable for renewable energy, motor drives, and EV inverters, they provide low ESR, low inductance, and excellent thermal conductivity, ensuring consistent performance in demanding environments. Shop now for fast delivery and quality assurance.
Buy multicomp DC Link Film Capacitors Part Number MP003981 now and ensure reliable high-voltage performance in inverter and motor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003981?
You can click on the BUY or RFQ button to purchase MP003981 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003981?
You can download the MP003981 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003981?
MULTICOMP PRO
