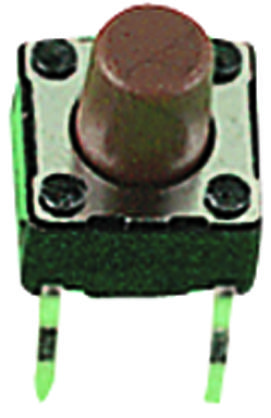

MULTICOMP PRO MCDTS61K Tactile Switch
The Multicomp Pro MCDTS6 series ultra-compact tactile switches are designed for high-density mounting in industrial and automation applications. Measuring 6mm x 6mm, these non-illuminated through-hole switches feature a SPST-NO configuration with a 50mA at 12V DC rating. They provide positive tactile feedback with a sharp click, a travel of 0.25mm, and are built with insert moulding to prevent flux buildup during soldering. Available in black, brown, and red caps, they offer long operating life up to 200,000 cycles and operate reliably within -25°C to +70°C. Suitable for power management, process control, and automation systems, these switches ensure durability and consistent performance in demanding environments.
MULTICOMP PRO MCDTS61K Tactile Switch Specifications:
- Contact Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. 500VDC
- Dielectric Strength: 250VAC/minute
- Travel: 0.25mm
- Material: Phosphor Bronze Dome
- Operating Life: 100,000 cycles at 260gf; 200,000 cycles at 100gf/160gf
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Dimensions: 6mm x 6mm; Height: 4.3mm or 5mm depending on model
- Tolerance: +0.2mm Max.
Buy the Multicomp Pro MCDTS6 – Reliable Tactile Switch for Industrial Applications
Discover the durable, high-quality tactile switches of the Multicomp Pro MCDTS6 series, ideal for high-density industrial applications. These compact, non-illuminated switches offer positive tactile feedback, reliable operation, and long lifespan. With ratings up to 50mA at 12V DC, they are suitable for automation, power management, and process control systems. Available in various cap colors and sizes, they provide excellent performance across wide temperature ranges. Purchase online today and enhance your electronic projects with dependable switching components, backed by a 12-month warranty.
Buy Multicomp Pro MCDTS6 tactile switches now and experience unmatched reliability and performance in automation systems and power management.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTS61K?
You can click on the BUY or RFQ button to purchase MCDTS61K from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTS61K?
You can download the MCDTS61K datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTS61K?
MULTICOMP PRO
