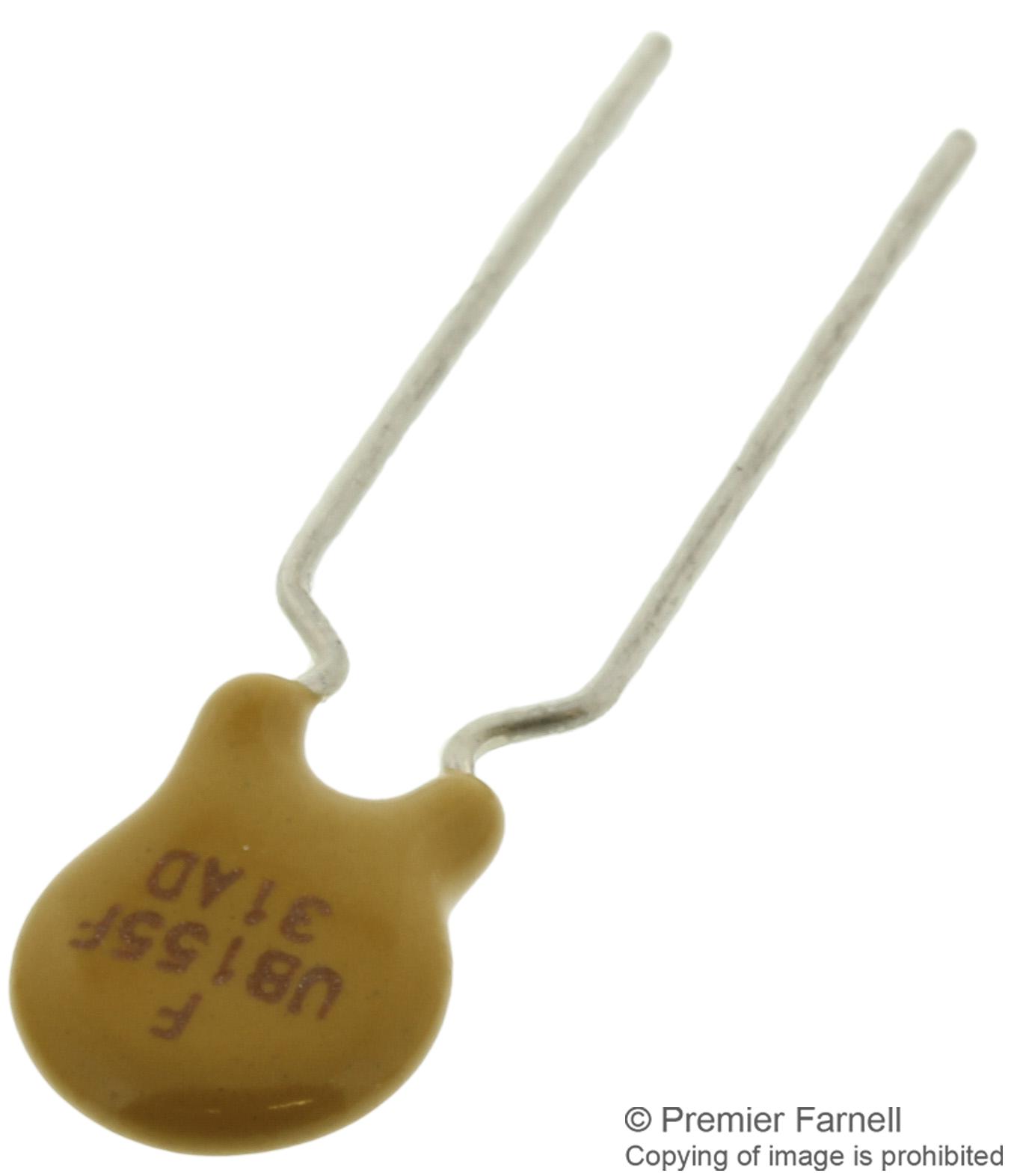

MULTICOMP PRO MC36250 Radial Leaded PTC
Multicomp Pro Radial Leaded PTC resettable fuse ensures reliable overcurrent protection for low voltage USB devices, computers, and peripherals. It features low resistance, fast trip time, and a low trip-to-hold ratio, with voltage ratings of 16V and 30V, and a temperature range of -40°C to 85°C. Made with tin-plated copper leads and flame-retardant epoxy coating, this fuse complies with RoHS standards. It is suitable for applications requiring quick response to overcurrent conditions and durable solderability, with physical dimensions optimized for easy installation.
MULTICOMP PRO MC36250 Radial Leaded PTC Specifications:
- Lead material: Tin plated copper
- Soldering characteristics: MIL-STD-202, Method 208E
- Insulating coating: Flame retardant epoxy
- Maximum voltage: 16V /30V
- Temperature range: -40°C to 85°C
- Rated current range: 0.75A to 25A
- Maximum fault current: Up to 40A
- Typical resistance: As per model, e.g., 0.23Ω to 0.07Ω
- Physical dimensions: Lead size 24 AWG, diameter 0.51mm; width 6.9mm to 11.4mm
- Body length: 5.1mm, overall length varies up to 76mm
- Lead length: Ranges from 6.9mm to 18.3mm depending on model
- RoHS compliant
- Solder ability tests: ANSI/J-STD 002
- Flame retardant epoxy coating
- Lead material: Tin-plated copper for durability
Buy the Multicomp Series Radial Leaded PTC: MC36250
Purchase the Radial Leaded PTC resettable fuse online today and ensure dependable overcurrent protection for your USB devices, computers, and peripherals. Designed with low resistance, fast trip response, and RoHS compliance, it provides optimal safety and performance. Easy to install with tin-plated copper leads, it withstands soldering heat and operates efficiently in temperatures from -40°C to 85°C. Get peace of mind with this durable fuse, ideal for low voltage electronic applications requiring quick fault response and long-term reliability.
Buy Multicomp Pro MC36250 now and experience unmatched reliability and fast overcurrent protection for your electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC36250?
You can click on the BUY or RFQ button to purchase MC36250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC36250?
You can download the MC36250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC36250?
MULTICOMP PRO
