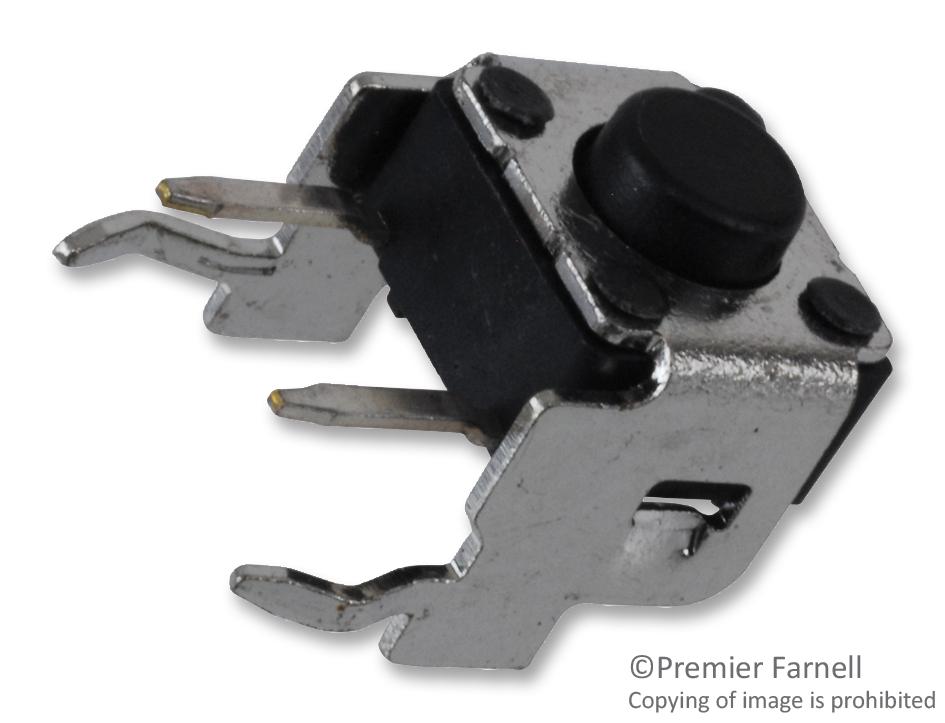

MULTICOMP PRO MCDTSA62K Tactile Switch
The MCDTSA6 series tactile switch features a single-pole normally open contact configuration with silver-clad brass terminals. It delivers a distinct click with positive tactile feedback, suited for user interfaces and control panels. Its ultra-miniature and lightweight design supports high-density mounting, while special contact moldings prevent flux build-up during soldering and enable auto-dipping. Operating between -25°C and 70°C, it offers various sizes and actuator lengths, ensuring high reliability and robust performance for industrial electronics and automation applications. The switch’s durable construction ensures long-lasting service in demanding environments.
MULTICOMP PRO MCDTSA62K Tactile Switch Specifications:
- Materials: Cover stainless steel, base nylon thermoplastic, stem nylon thermoplastic, contact disc phosphor bronze with silver cladding, terminal brass with silver cladding, cap thermoplastic ABS
- Operation Force: 100gf, 160gf, 260gf (±50gf)
- Stroke: (12 x 12) 0.35 ±0.1mm, (6 x 6) 0.25 ±0.2mm
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 50,000 to 500,000 cycles depending on force
- Current Rating: 50mA at 12V DC
- Contact Resistance: > 100mΩ
- Insulation Resistance: 10MΩ at 500V DC
- Dielectric Strength: 250V AC for 1 minute
- Soldering: Wave at 260°C max 5s, Hand at 320°C for 2s
- Dimensions: Varies with model, generally 4.3mm to 7.3mm height, PCB hole diameter 21±0.05mm
Buy the Multicomp Series MCDTSA6 Tactile Switch: MCDTSA62K
Purchase the Multicomp Series MCDTSA62K tactile switch online today to integrate a high-reliability, miniature, SPNO switch into your industrial or control project. Its compact design, positive tactile feedback, and broad temperature range make it ideal for demanding environments. Featuring special contact moldings to prevent flux build-up and support auto-dipping, this switch offers long life—up to 500,000 cycles—and high durability. Whether for automation, control panels, or electronic devices, buy online now for fast delivery and trusted quality.
Order your Multicomp Series MCDTSA62K tactile switch today and ensure reliable, high-density control with a robust and precise click feel.
