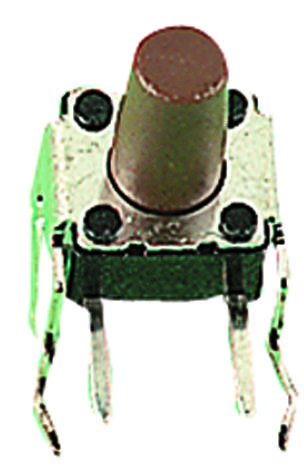

MULTICOMP PRO MCDTSA65K Tactile Switch
This compact tact switch offers high reliability and long operating life, suitable for high-density mounting in electronic devices. Made with stainless steel and nylon thermoplastic, it features various actuator colors and operating forces for versatile applications. The switch's contact disc is phosphor bronze with silver cladding, ensuring excellent electrical performance. It is rated for 50mA at 12V DC, with an electrical life of up to 500,000 cycles. Its robust design withstands vibration and shock tests, making it ideal for reliable switching in demanding environments. It supports wave and hand soldering processes, compatible with standard PCB drilling specifications.
MULTICOMP PRO MCDTSA65K Tactile Switch Specifications:
- Material: Cover stainless steel, base nylon thermoplastic, contact disc phosphor bronze with silver cladding, terminal brass with silver cladding, cap thermoplastic ABS
- Operation Force: 100gf, 160gf, 260gf (±50gf), standard 350g Salone
- Stroke: 0.35mm (+0.1mm) for 12mm * 12mm models, 0.25mm (+0.2mm) for 6mm * 6mm models
- Operating Temperature: -25°C to +70°C, Storage Temperature: -25°C to +80°C
- Electrical Life: 50,000 to 500,000 cycles depending on force, Current Rating: 50mA at 12V DC
- Contact Resistance: >100mΩ, Insulation Resistance: 10MΩ at 500V DC, Dielectric Strength: 250V AC for 1 minute
- Soldering: Wave solder maximum 260°C for 5 seconds, Hand solder at 320°C for 2 seconds, PCB hole diameter 21±0.05mm
- Vibration & Shock Resistance: Meets MIL-STD-202F standards and tests
Buy the Multicomp Series MCDTS 12mm Tact Switch: MCDTSA65K
Experience high reliability with the Multicomp Series tactile switch, designed for high-density electronic applications and long-term durability. Made from stainless steel and nylon thermoplastic, it features multiple actuator colors, operating forces, and a sturdy contact design for excellent electrical performance. Suitable for PCB assembly with wave and hand soldering processes, it withstands vibration and shock tests, ensuring dependable operation in demanding environments. Enhance your electronic devices with this proven, versatile switch, backed by a comprehensive warranty and positive user reviews. Buy online today for quality you can trust.
Order your Multicomp Series MCDTSA65K tactile switch today and give your electronic projects the reliable, durable performance they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTSA65K?
You can click on the BUY or RFQ button to purchase MCDTSA65K from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTSA65K?
You can download the MCDTSA65K datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTSA65K?
MULTICOMP PRO
