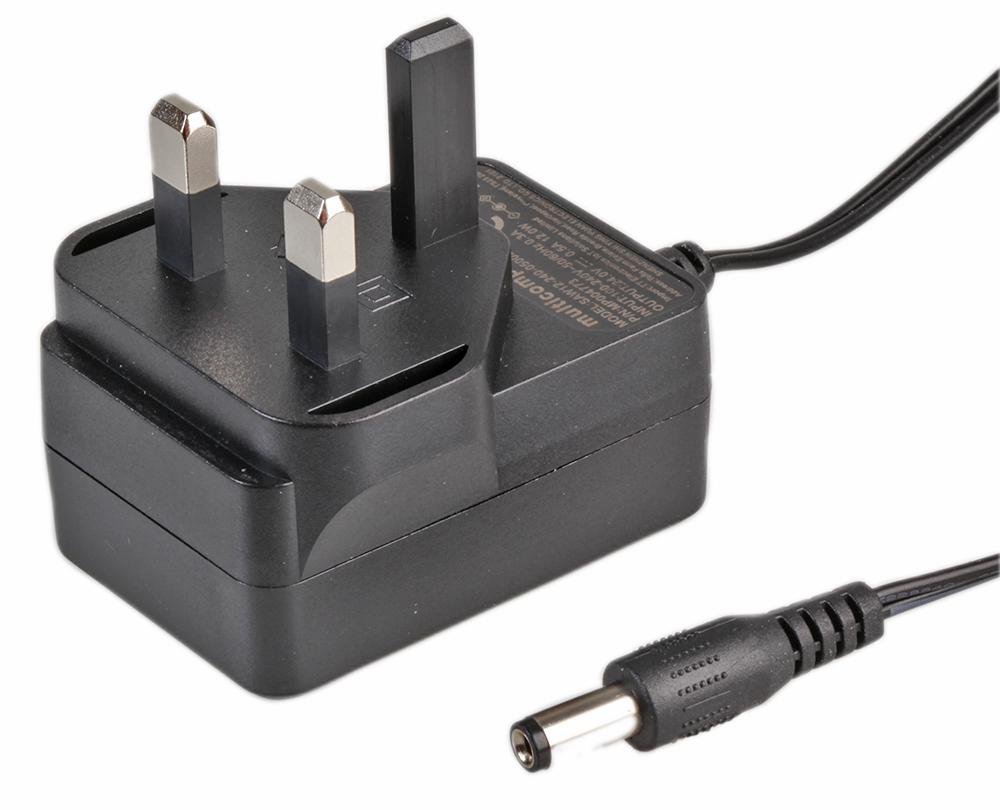

MULTICOMP-PRO MP004773 Power Supply Adapter
The 12W UK Wall Plug Adapter is a compact, efficient power supply providing 24V DC at 0.5A, suitable for various general power applications. Compliant with RoHS, CE, and GS standards, it features an easy-to-use UK fixed AC head, Level VI efficiency, and auto-recovery overload protection. Its slim design measures approximately 70mm x 50mm x 77mm, weighs 139g, and operates reliably in temperatures from 0°C to +40°C with an operating humidity of 10% to 90%. Designed with safety and EMI standards, it ensures safe, stable power delivery for your devices.
MULTICOMP-PRO MP004773 Power Supply Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Output Voltage: +24V DC
- Output Current: 0.5A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive, Straight Angle
- Total Output Regulation: 15%
- Line and Load Regulation: 45%
- Ripple & Noise: 100mVp-p
- Efficiency: Min 83%
- Over Voltage Protection: 25V DC Max
- Over Load Protection: 2.5A Max with Auto-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Humidity (Operating): 10% to 90%
- Size: Max 70mm(L) x 50mm(W) x 77mm(H)
- Weight: 139g
- Safety Compliance: GS/CE
- EMI Standard: ENE ooo
- MTBF: 50,000 Hours
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA Max
Buy the Multicomp UK Plug Adapter – Reliable Power Supply for Industrial Applications
Purchase the multicomp series MP004773 UK power adapter online today to get a reliable and efficient power solution with RoHS, CE, and GS approvals. This compact, 12-watt unit provides 24V DC at 0.5A, perfect for various general power applications. Its slim design measures approximately 70mm x 50mm x 77mm, weighing 139g, with built-in overload protection and high efficiency for stable operation. Order now to ensure your projects have consistent, safe power suitable for industrial use.
Order your multicomp series MP004773 UK plug power adapter today and ensure dependable power delivery for your industrial projects.
