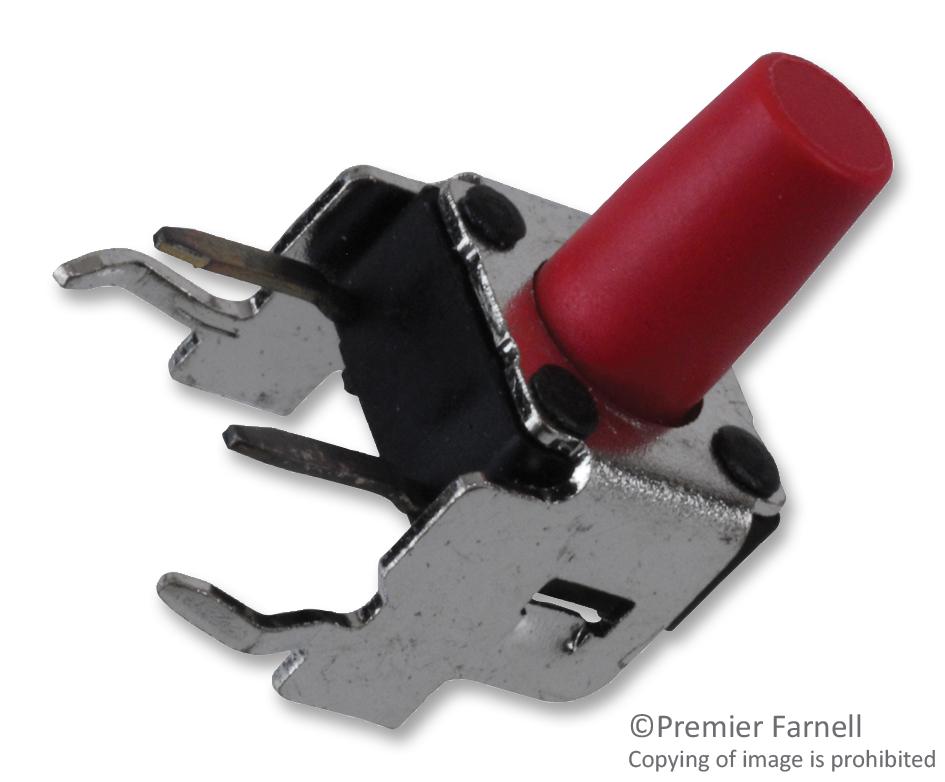

MULTICOMP PRO MCDTSA65R Tactile Switch
The MCDTSA65R tactile switch offers a compact 6mm x 6mm footprint with a high reliability long operating life, making it ideal for high-density electronic assemblies. It features a 50mA current rating, a contact resistance of less than 100m, and a dielectric strength of 250V AC for 1 minute. The switch operates within -25°C to +70°C, supports wave and hand soldering, and has a PCB hole diameter of 0.05mm. Its robust construction and multiple operating force options provide consistent tactile feedback in various applications.
MULTICOMP PRO MCDTSA65R Tactile Switch Specifications:
- Dimensions: 6mm x 6mm, height varies with model
- Operation Force: 100gf to 260gf
- Contact Resistance: > 100m maximum
- Insulation Resistance: 10MΩ at 500V DC
- Dielectric Strength: 250V AC / 1 minute
- Mechanical Life: up to 500,000 cycles
- Operating Temperature: -25°C to +70°C
- Soldering: Wave at 260°C max 5s, Hand at 320°C 2s
- PCB Hole Diameter: 0.05mm
- Material: Contact discs phosphor bronze with silver cladding, cover stainless steel, body nylon thermoplastic
- Electrical Life: 50,000 to 500,000 cycles depending on model
- Current Rating: 50mA, 12V DC
- Shock & Vibration Resistance tested to MIL-STD standards
Buy the Multicomp 6mm x 6mm Series – Reliable Tactile Switch for Industrial Applications
Enhance your electronic designs with our high-reliability tactile switch, offering precise tactile feedback, long life, and easy soldering. Its compact size saves space, making it perfect for high-density assemblies. Whether for industrial equipment, control panels, or consumer electronics, this switch guarantees dependable operation with a maximum current rating of 50mA at 12V DC. Support wave and hand soldering processes, ensuring quality connections. Improve your product's durability and user experience by choosing this robust, UL-listed component today.
Buy Multicomp 6mm x 6mm tact switch now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTSA65R?
You can click on the BUY or RFQ button to purchase MCDTSA65R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTSA65R?
You can download the MCDTSA65R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTSA65R?
MULTICOMP PRO
