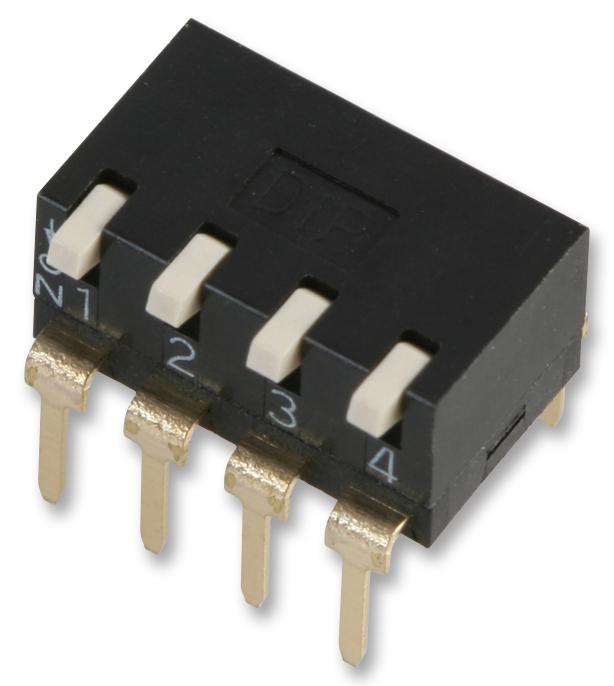

MULTICOMP PRO MCEPI04 Piano Type Dual Line Switch
This dual in line switch features a piano-type design with a maximum operating force of 800 gf and a mechanical life of 2,000 cycles. It operates within -20°C to +85°C and stores at -40°C to +85°C. Made of UL94V-0 Nylon with gold-clad copper contacts, it supports a rated current of 25mA at 24V DC and has a dielectric strength of 500V AC for 1 minute. Suitable for applications requiring single pole, single throw switching in compact electronic interfaces, it ensures durability and reliable performance with carefully engineered soldering processes.
MULTICOMP PRO MCEPI04 Piano Type Dual Line Switch Specifications:
- Mechanical: Max operating force 800 gf, Mechanical life 2000 cycles, Operating temperature -20°C to +85°C, Storage temperature -40°C to +85°C
- Electrical: Life 2000 cycles, Rating 25mA at 24V DC, Contact resistance 100mΩ at 500V DC, Insulation resistance 100MQ at 500V DC, Dielectric strength 500V AC/1 minute
- Materials: Cover, base, stem made of UL94V-0 Nylon high-temperature thermoplastic, Contact made of alloy copper with gold cladding, Terminal made of brass with gold cladding
- Soldering & assembly: Recommended wave soldering at 260°C max for 5 seconds, hand soldering with 30W iron at 350°C max for 5 seconds, reflow profile set at 260°C max, top tape sealed type for spray cleaning
Buy the Multicomp Series Piano Switch: MCEPI04
Purchase the Multicomp Series Piano Switch MCEPI04 online today and enjoy fast shipping, competitive prices, and proven durability. Perfect for engineers and electronics enthusiasts, this switch provides reliable operation with a mechanical life of 2,000 cycles, UL94V-0 nylon construction, and gold-plated contacts. Its compact design makes it ideal for space-constrained applications requiring single pole, single throw switching, ensuring long-term performance, easy installation, and seamless integration into your projects. Order now to enhance your electronic setups with this high-quality switch.
Buy Multicomp Series Piano Switch MCEPI04 now and experience unmatched reliability and performance for your electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCEPI04?
You can click on the BUY or RFQ button to purchase MCEPI04 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCEPI04?
You can download the MCEPI04 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCEPI04?
MULTICOMP PRO
