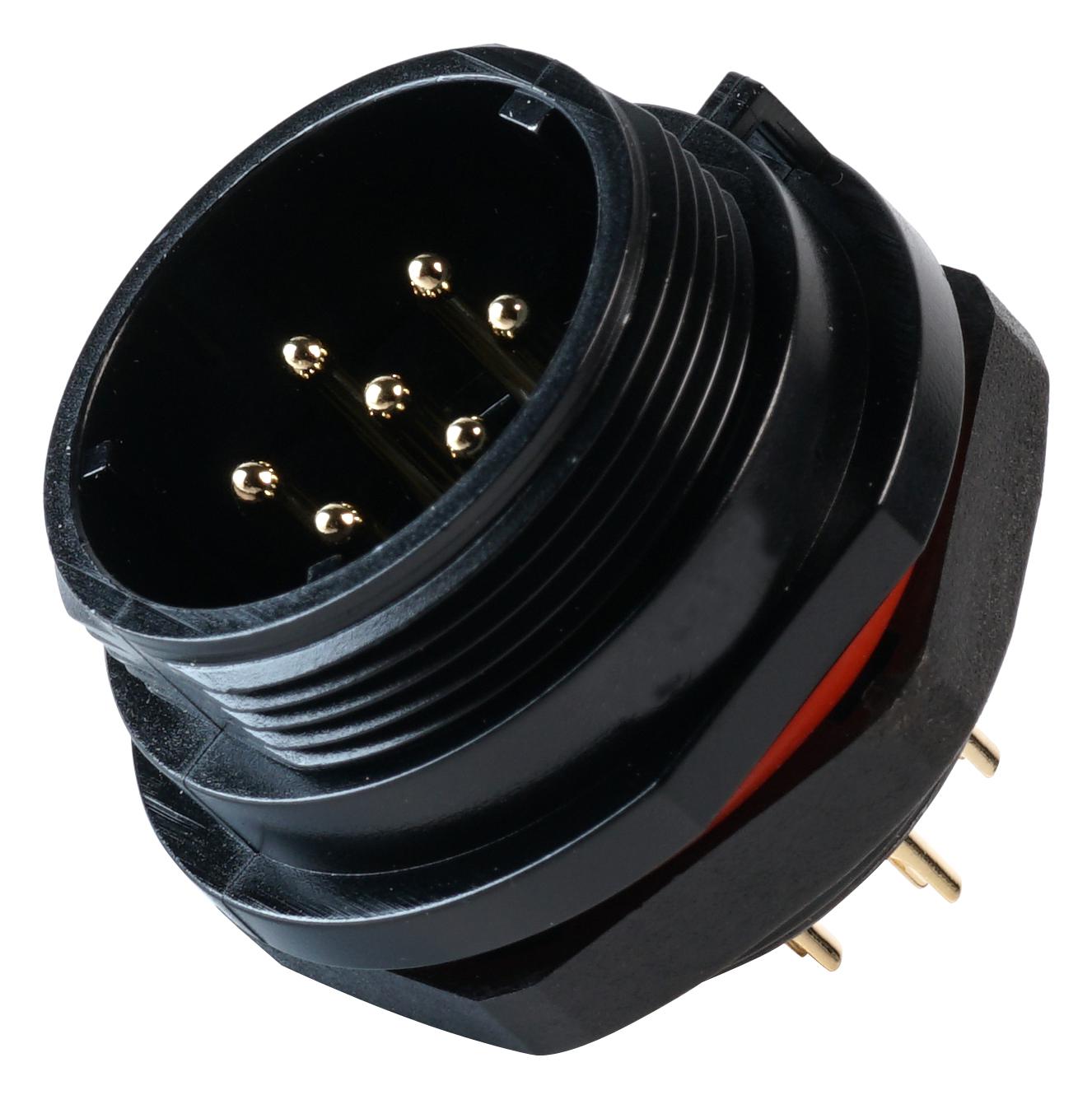

MULTICOMP-PRO MP002605 Industrial Circular Connectors
The MP-T21 IP68 series connectors are robust and weatherproof, featuring threaded coupling and high IP68 rated sealing. They come in versatile configurations including panel, cable, and inline mounts, supporting 2 to 12 poles with solder or screw terminations for flexible wiring. Constructed from nylon66 shells, PPS inserts, and brass contacts with gold plating, they withstand harsh environments and operate from -40°C to +85°C. Suitable for industrial automation, security, medical, and testing applications, these connectors ensure reliable, corrosion-resistant connections for indoor and outdoor use with optional protective caps.
MULTICOMP-PRO MP002605 Industrial Circular Connectors Specifications:
- Coupling: Threaded
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Rated Current: 5 to 30 A depending on contact size
- Rated Voltage: 400-500 V AC
- Contact Resistance: 1 to 5 mΩ
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder or Screw
- Cable Outer Diameter Range: 7mm to 12mm
- Flammability: V-0 (fire resistant)
- Certifications: RoHS compliant
- Dimensions: Fits 21mm panel cutout, includes locking nut and rubber seals
Buy the multicomp U+2013 Reliable Industrial Connectors for Automation Applications
Discover the durability and versatility of multicomp IP68 circular connectors, ideal for industrial automation, security systems, and outdoor applications. Offering configurations from 2 to 12 poles, these connectors feature threaded couplings, gold-plated brass contacts, and nylon66 shells. They withstand extreme temperatures and harsh environments with a protected IP68 rating. Easy to install with screw or solder terminations, they include optional protective caps for enhanced sealing. Perfect for demanding applications requiring reliable, corrosion-resistant, and weatherproof connections in both indoor and outdoor settings.
Buy multicomp IP68 connectors now and ensure reliable, weatherproof connections suitable for harsh industrial environments.
