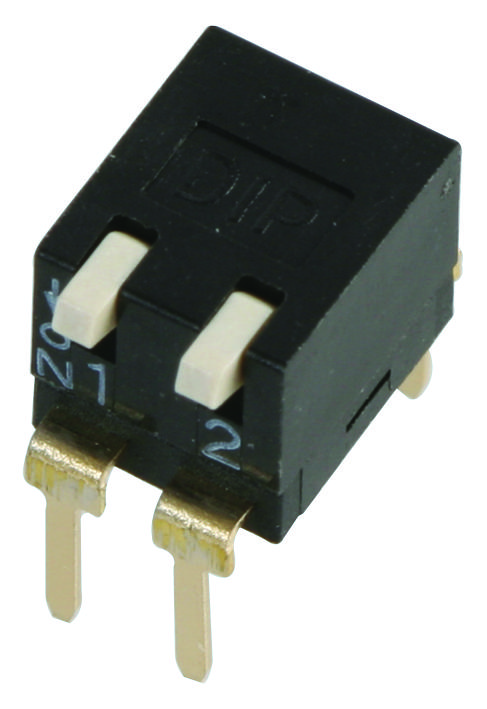

MULTICOMP PRO MCEPI10 Dual Inline Switch
Dual In Line Switches offers reliable and durable piano-type multicomp switch designed for versatile circuit applications. Crafted with UL94V-0 Nylon thermoplastic, it features a white stem and black cover and base, with gold-clad copper contacts for excellent conductivity. Rated for 25mA, 24V DC and with a mechanical life of 2,000 cycles, it is suitable for a wide temperature range from -20°C to +85°C (operating) and -40°C to +85°C (storage). The switch supports single pole, single throw circuits with various dimensions tailored for PCB mounting, ensuring easy integration into multiple electronic projects.
MULTICOMP PRO MCEPI10 Dual Inline Switch Specifications:
- Max. operating force: 800 gf
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +85°C
- Mechanical life: 2,000 cycles
- Electrical life: 2,000 cycles
- Rating: 25mA, 24V DC
- Max. contact resistance: 100mQ at 500 V DC
- Max. insulation resistance: 100MQ at 500 V DC
- Dielectric strength: 500V AC / 1 minute
- Circuit: Single pole and single throw
- Material: Cover, base, stem - UL94V-0 Nylon thermoplastic; Contact - Alloy copper with gold cladding; Terminal - Brass with gold cladding
- Dimensions vary: 4.98mm x 2.54mm to 25.3mm x 22.86mm depending on model
- Soldering: Wave, hand, or reflow soldering compatible, with specified temperatures and durations
Buy the Buy Multicomp Pro Dual In Line Switch Part Number MCEPI10 Online
Order the reliable dual inline switch online from Multicomp Pro today. Designed for durability, it features gold-plated contacts, UL94V-0 nylon thermoplastic, and supports high-temperature soldering methods. Perfect for PCB mounting with various dimension options, this switch ensures excellent conductivity and long-lasting performance. Whether for industrial equipment or electronic projects, purchase online to benefit from fast delivery, trusted quality, and unmatched convenience. Enhance your device’s reliability—buy now and experience top-tier switching performance.
Buy Multicomp Pro MCEPI10 now and experience unmatched reliability and performance in versatile switch applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCEPI10?
You can click on the BUY or RFQ button to purchase MCEPI10 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCEPI10?
You can download the MCEPI10 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCEPI10?
MULTICOMP PRO
