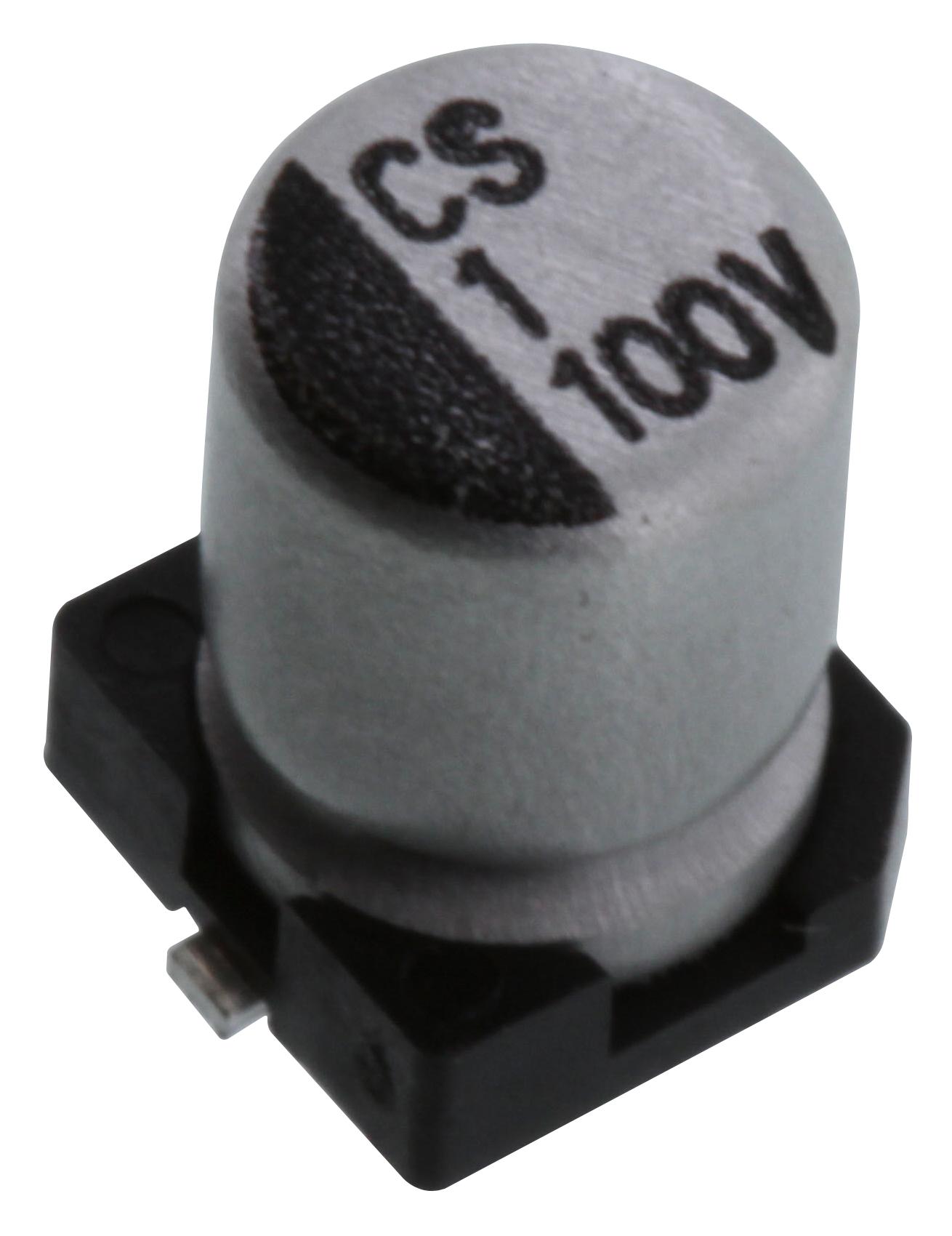

MULTICOMP PRO MCESL100V105M4X54 Electrolytic Capacitor
This high-reliability surface-mount aluminum electrolytic capacitor is designed for high-density PC boards. It guarantees 2000 hours at 85°C and features a working voltage range of 4 to 100V with capacitance from 0.1 to 1500uF. The capacitor offers excellent low temperature characteristics, low dissipation factor at 120Hz, and robust load life and shelf life performances. It is supplied with carrier taping for automatic assembly, making it ideal for electronic applications requiring dependable, long-lasting capacitors with precise specifications.
MULTICOMP PRO MCESL100V105M4X54 Electrolytic Capacitor Specifications:
- Operating temperature range: -40°C to +85°C
- Working voltage range: 4 to 100V
- Capacitance range: 0.1 to 1500uF
- Capacitance tolerance: 420% (120 Hz, 20°C)
- Maximum leakage current: 1<0.01 CV or 3 (WA) after 2 minutes
- Dissipation factor at 120Hz, 20°C: 0.90 to 0.12 depending on model
- Tan δ (max): 0.35 to 0.10 depending on model
- Load life: 2000 hours at 85°C, within +25% of initial value
- Shelf life: 1000 hours at 85°C with same parameters as load life
- Soldering heat resistance: 250°C hot plate for 30 seconds
- Dimensions: Diameter varies, maximum 40.5mm, length varies per capacity
- Materials: Aluminum oxide dielectric with conductive polymer, low ESR
- Application: Power supplies, consumer electronics, high-density PCBs
- Includes carrier taping for automatic placement
Buy the Buy Brandname Capacitor Part Number MCESL100V105M4X5.2 Online
Purchase the Brandname seriesMCESL100V105M4X5.2 electrolytic capacitor online now and ensure long-lasting performance for your power management and electronic circuits. This surface-mount device is designed for demanding high-density PCBs, with a working voltage of 4 to 100V and capacitance from 0.1 to 1500uF. Guaranteed 2000 hours at 85°C, it provides excellent low-temperature characteristics, low ESR, and robust life expectancy, making it the ideal choice for reliable and efficient electronic applications requiring precision and durability.
Order your Brandname SeriesMCESL100V105M4X5.2 reliable electrolytic capacitor today and enhance your electronic projects with high performance and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCESL100V105M4X54?
You can click on the BUY or RFQ button to purchase MCESL100V105M4X54 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCESL100V105M4X54?
You can download the MCESL100V105M4X54 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCESL100V105M4X54?
MULTICOMP PRO
