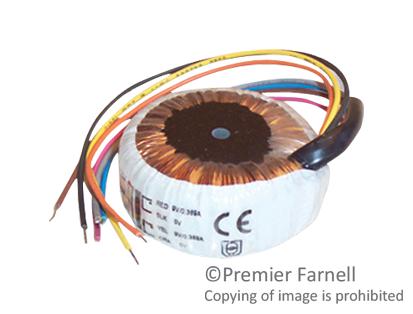

MULTICOMP-PRO MCFM5007 Miniature Toroidal Transformer
The Multicomp MCFM series are miniature open-style toroidal transformers equipped with flying leads. These high-quality devices feature a single primary winding tapped for 115V and 230V at 50/60Hz, with dual secondary windings that can be connected in series, parallel, or used independently. Power ratings range from 1.6VA to 7.0VA, suitable for low-power electronic applications. They have double insulated primary leads, a resin-filled center with an M4 clear mounting hole, and flexible leads that can be trimmed without enamel removal. Designed and tested in accordance with EN standards, they offer reliable performance for sensitive electronics, rated up to 80% efficiency at a maximum ambient temperature of 40°C.
MULTICOMP-PRO MCFM5007 Miniature Toroidal Transformer Specifications:
- Power Rating: 1.6VA to 7.0VA
- Primary Voltage: Tapped at 115V and 230V, 50/60Hz
- Secondary Windings: Dual, connect in series or parallel or independent
- Efficiency: Up to 80%
- Maximum Ambient Temperature: 40°C
- Insulation: Double insulated primary leads
- Construction: Resin-filled center with M4 clear mounting hole
- Lead Length: 150mm, stripped and tinned for last 6.0mm
- Dimensions: Diameter 42-51mm, Height 23-24mm depending on model
- Standards: EN60742, EN60065, EN60950
- Temperature Rating: Class A (105°C)
- Voltage Tolerance: Primary +1% at nominal load
Buy the Multicomp Miniature Toroidal Transformers – Reliable Power Supply for Industrial Applications
Purchase the Multicomp miniature toroidal transformers online and ensure your electronic projects have a dependable power source. These transformers feature dual secondary windings, high-quality construction, and flexible leads that can be trimmed for custom applications. Designed to meet international standards, they deliver up to 80% efficiency in low-power equipment. Whether for hobbyist or professional electronics, these transformers are easy to install, highly reliable, and perfect for sensitive electronic circuits requiring stable voltage conversion. Get yours today for confident performance in your low-power electronic setups.
Buy Multicomp miniature toroidal transformers now and experience reliable power conversion with high efficiency and flexible wiring options for your low-power electronics.
