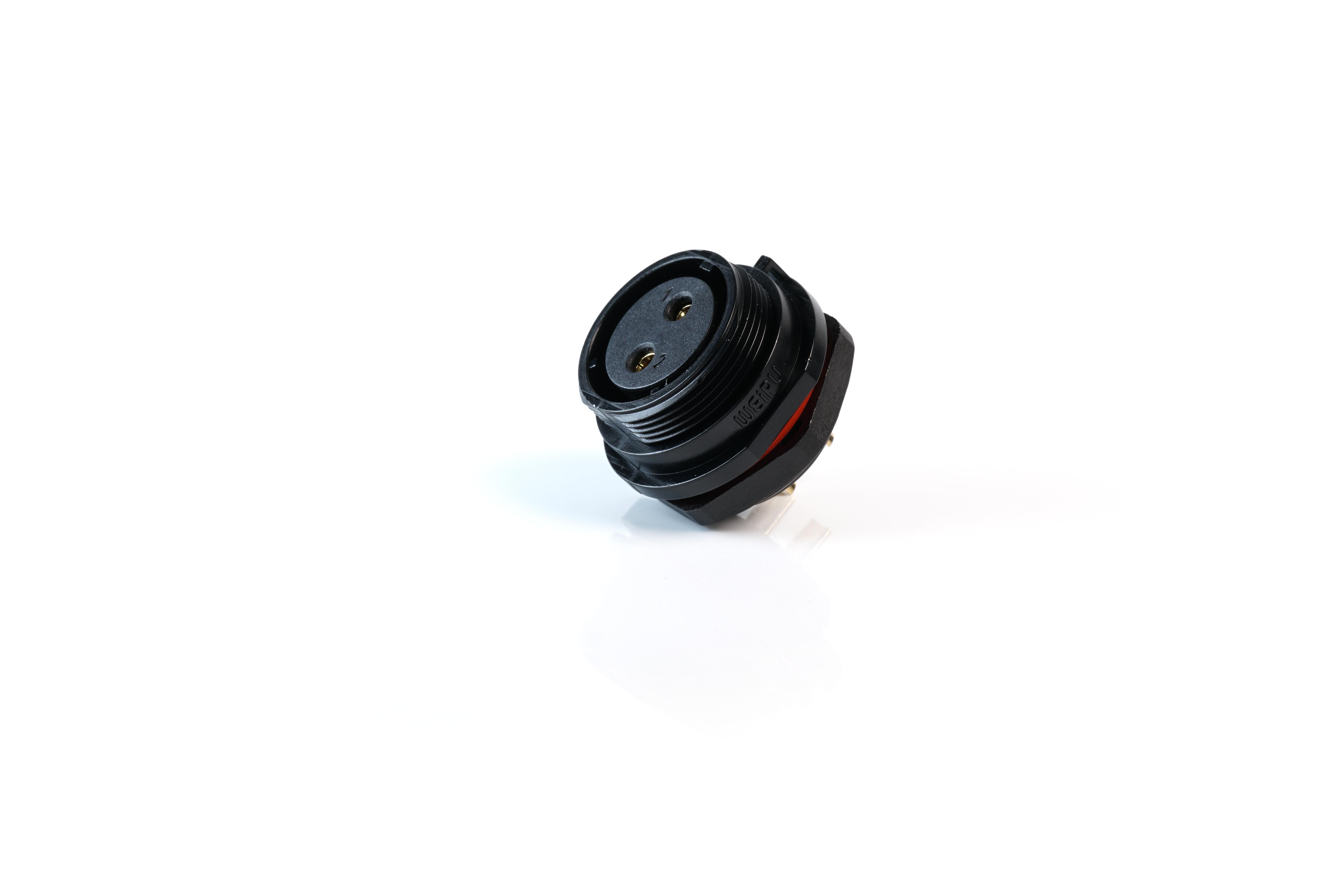

MULTICOMP-PRO MP002618 Industrial Waterproof Connectors
The MP-T21 IP68 series connectors are rugged, weatherproof devices designed for reliable industrial and outdoor use. Featuring threaded coupling and IP68 sealing, they provide secure cable-to-panel or cable-to-cable connections in harsh environments. Available in multiple configurations with 2, 3, 4, 5, 7, 9, and 12 poles, these connectors support solder or screw terminations. They include cable, in-line, and panel mount options, each supporting up to 12 contacts, with an IP68-rated dust cap for protection. Made from nylon66 shells, brass contacts, and PPS inserts, these connectors are fire-resistant, temperature-rated from -40°C to +85°C, and support up to 500 mating cycles, making them ideal for automation, security, and industrial control applications.
MULTICOMP-PRO MP002618 Industrial Waterproof Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Termination: Solder and Screw
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Contact Resistance: 1 mΩ for 2-5 contacts, 2.5-5 mΩ for higher contact counts
- Rated Current: 30A for 2-4 contacts, 15A for 5 contacts, 5A for 7-12 contacts
- Rated Voltage: up to 500V (AC), 400V for 12 contacts
- Cable Compatibility: 4/11 mm² for solder, 1.5/15 mm² for screw
- Cable Outer Diameter Range: 7mm to 12mm
- Design: Panel, Cable, and Inline Mount options
- Additional: Dust Cap available, RoHS compliant
Buy the multicomp U2022 Reliable Connector Series for Industrial Applications
Purchase multicomp IP68 waterproof connectors online now for your industrial automation, outdoor applications, and control systems. Designed for rugged environments, these connectors feature threaded coupling, multiple mounting options, and solder or screw terminations. They support up to 12 contacts, with excellent sealing and chemical resistance to ensure long-lasting performance. Made from high-quality nylon66 shells, brass contacts, and PPS inserts, they withstand extreme temperatures and moisture, ideal for secure connections in harsh environments. Easily integrate into your automation or security systems with these reliable, weatherproof connectors available for immediate online purchase.
Get multicomp IP68 connectors today—built for durability, reliable connection, and versatile installation in demanding environments.
