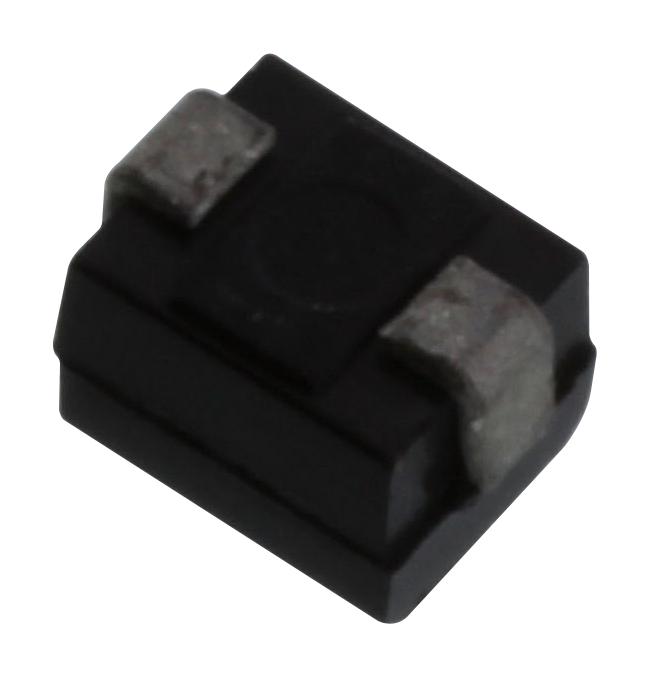

MULTICOMP PRO MCFT000188 Ferrite Chip Inductor
These ferrite wire wound chip inductors are compact and highly reliable, suitable for various electronic devices such as micro televisions, radios, and mobile phones. Constructed with ferrite cores and tinned copper wire, they feature RoHS compliance and excellent solderability for automatic mounting. Designed to withstand mechanical shocks, pressure, sudden temperature changes, and humidity, they ensure stable electrical performance in demanding environments. Different sizes (0805, 1008, 1210, 1812) accommodate various inductance needs, with high Q factor and SRF values, making them ideal for RF and high-frequency applications.
MULTICOMP PRO MCFT000188 Ferrite Chip Inductor Specifications:
- Sizes available: 0805, 1008, 1210, 1812
- Inductance range: 0.15uH to 470uH
- RoHS compliant
- Construction: Ferrite core, Tinned Copper Wire, Electrode (Ag/Pd+Ni+Sn)
- Rated Current: Varies by size and type, up to 1,400mA
- Q factor: Up to 850 at test frequencies
- SRF: Up to 1205 MHz
- DC Resistance: Varies with model, as low as 0.15Ω
- Temperature range: -40°C to +85°C
- Packaging: Tape and reel options, quantities up to 2000 units
- Environmental: Resistant to mechanical shocks, pressure, humidity, and temperature changes
- Reflow soldering compatible: Peak temperature 265°C for 10 seconds, max 3 reflow cycles
Buy the Ferrite Series Wire Wound Chip Inductor: MCFT000188
Order the Ferrite Chip Inductor MCFT000188 online today to ensure your electronic projects have reliable performance and high-quality components. Designed for RF and high-frequency applications, this inductor features a ferrite core, durable construction, and RoHS compliance. It offers excellent solderability, resistance to mechanical shocks and humidity, and a wide range of inductance values. Perfect for mobile phones, radios, and micro devices, it guarantees stability in demanding environments. Purchase now for fast delivery and optimal electronic performance.
Get Ferrite Series wire wound chip inductor MCFT000188 today—built for RF applications, durability, and easy surface mounting.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT000188?
You can click on the BUY or RFQ button to purchase MCFT000188 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT000188?
You can download the MCFT000188 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT000188?
MULTICOMP PRO
