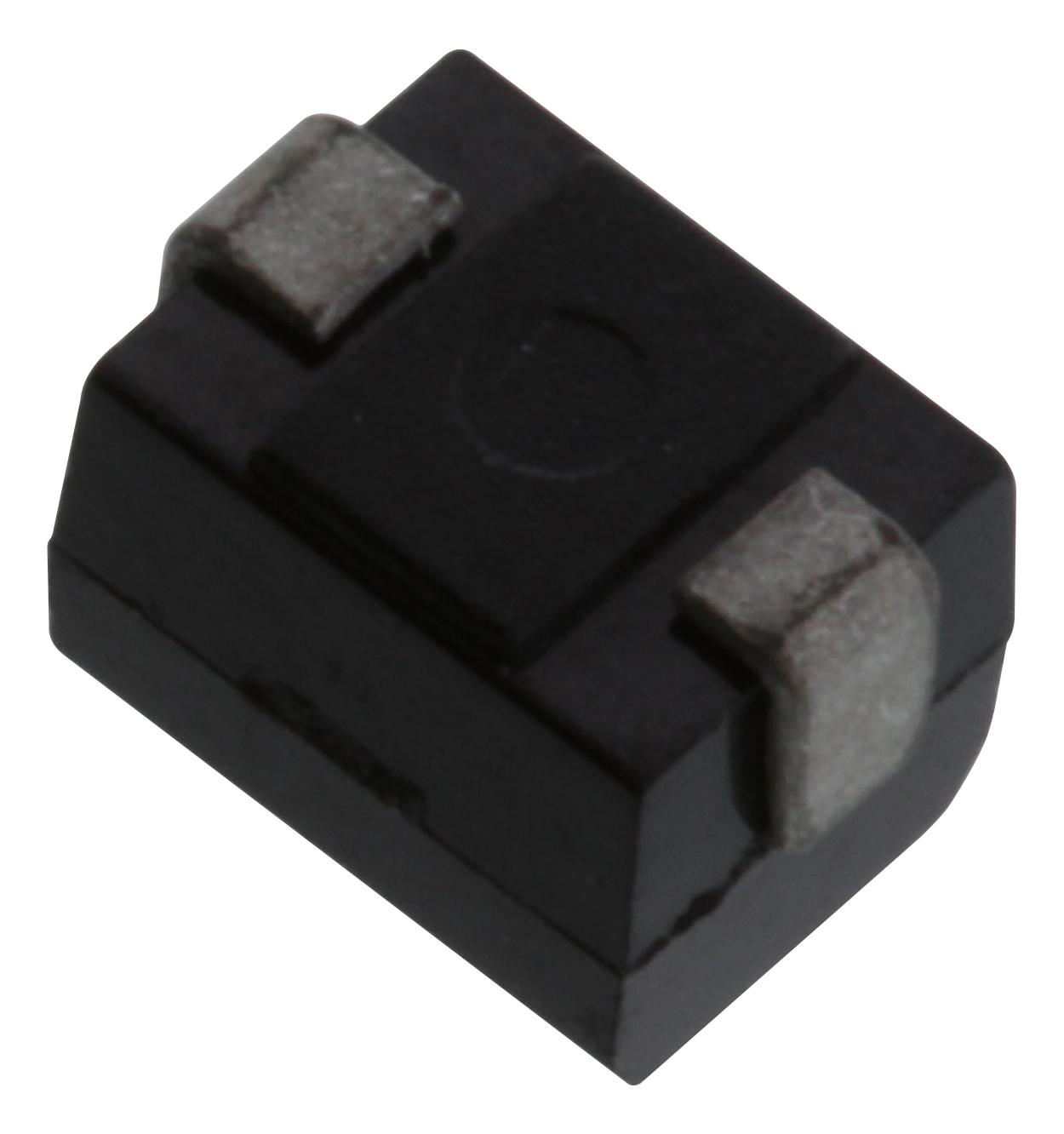

MULTICOMP PRO MCFT000197 Wire Wound Chip Inductor
These high-quality ferrite wire wound chip inductors are optimized for compact electronic applications, offering excellent electrical performance, RoHS compliance, and reliable mechanical stability. Designed for automatic mounting and strong solderability with flow, soldering iron, or wave methods, they feature highly resistant terminals capable of withstanding pull forces, mechanical shocks, and pressure. Their construction with ferrite cores and magnet wire ensures consistent inductance and Q characteristics, making them ideal for use in microelectronics, televisions, cameras, radios, and mobile devices, providing durable operation even under extreme temperature and humidity conditions.
MULTICOMP PRO MCFT000197 Wire Wound Chip Inductor Specifications:
- Inductance: 0.15uH to 680uH (various models)
- Tolerance: ±5%, ±10%, ±20%
- Test Frequency: 25.2 MHz, 7.96 MHz, 2.52 MHz, 1.0 MHz, 13 MHz, 35 MHz
- Q Factor: 45 to 850 depending on model
- SRF: 45 to 1100 MHz
- DCR: Ranges from 0.15 mΩ to 2.6 mΩ
- Rated Current: 30 mA to 1,400 mA depending on model
- Physical Dimensions: 0805, 1008, 1210, 1812 sizes with specific length, width, and height in millimetres
- Material: Ferrite core with magnet wire, RoHS compliant
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: 25°C ±3°C; Humidity: <80% RH
- Durability: Resistant to mechanical shocks, pressure, sudden temperature changes, humidity, and soldering conditions
Buy the Buy Multicomp Pro Wire Wound Chip Inductor Part Number MCFT000197 Online
Purchase the Multicomp Pro wire wound chip inductor MCFT000197 online today to ensure excellent electrical stability and mechanical resilience for your electronic projects. These RoHS compliant inductors feature precise inductance values, high Q levels, and broad frequency performance, making them suitable for microelectronics, TVs, cameras, radios, and communication devices. Their strong solderability, resistance to shocks and pressure, and operation under various environmental conditions guarantee lasting durability. Order now to benefit from fast delivery and competitive pricing, and elevate your device reliability with these top-quality components.
Buy Multicomp Pro MCFT000197 now and experience reliable performance with RoHS compliant ferrite core inductors designed for demanding electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT000197?
You can click on the BUY or RFQ button to purchase MCFT000197 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT000197?
You can download the MCFT000197 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT000197?
MULTICOMP PRO
