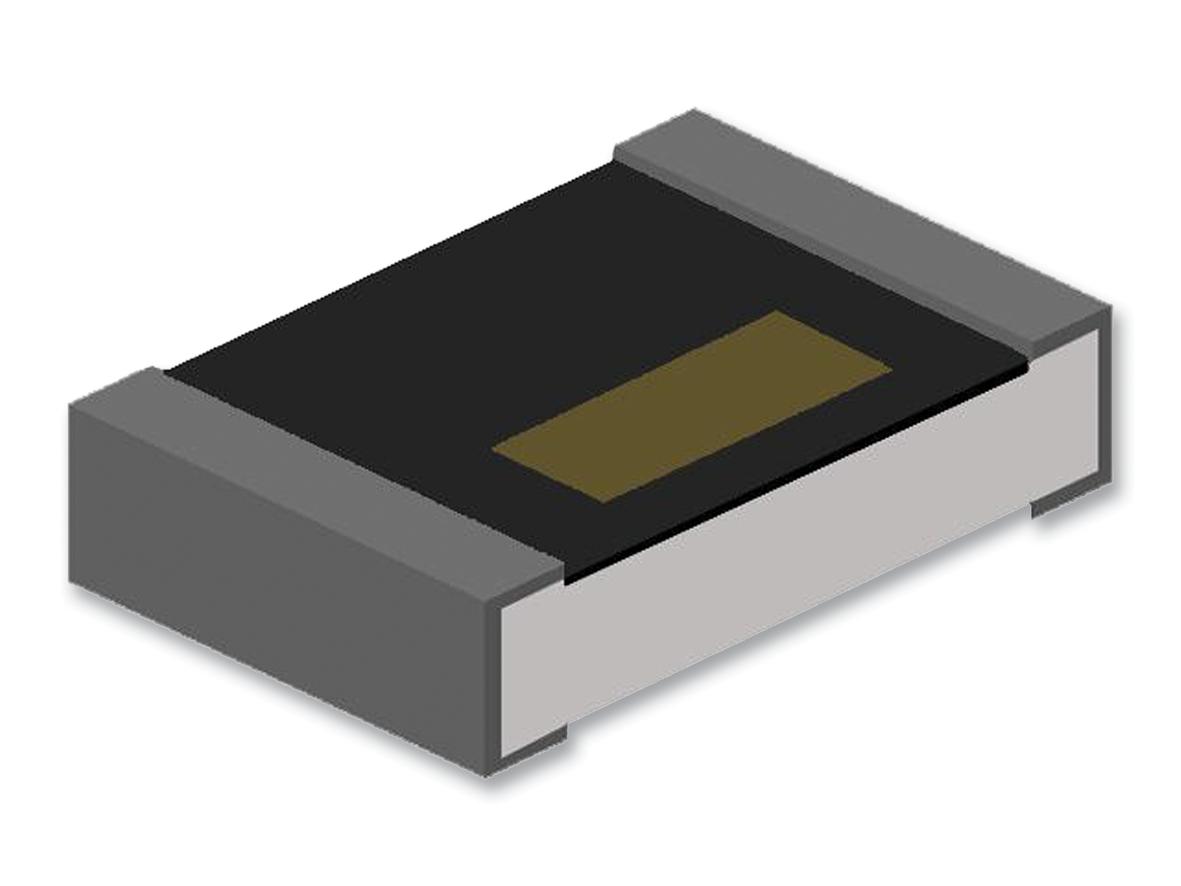

MULTICOMP-PRO MCFT0BT2N501 Thin Film Chip Inductor
The Thin Film Chip Inductor from the AL Series offers high precision, RoHS compliance, and stability for advanced RF applications. Featuring a photolithographic single-layer ceramic chip design, it provides high SRF, excellent Q, and superior temperature stability with tight tolerances of +1% or +0.1nH. Designed to maintain stable inductance at high frequencies, it's ideal for cellular, GPS, VCO, TCXO, RF transceiver, wireless LAN, Bluetooth modules, and communication devices. Its construction involves alumina substrate, Ni-based electrodes, and Sn marking, with dimensions suitable for 0201 and 0402 packages, supporting high current and frequency stability.
MULTICOMP-PRO MCFT0BT2N501 Thin Film Chip Inductor Specifications:
- Type: Thin Film Ceramic Chip Inductor
- Series: AL Series
- RoHS Compliant
- Construction: Alumina substrate, Ni-graphite electrodes, Cu circuits, Sn marking
- Package Sizes: 0201 and 0402
- Dimensions (mm): 0201 - 0.6 x 0.3 x 0.23, 0402 - 1.0 x 0.5 x 0.32
- Inductance Range: 0.1nH to 20.8nH
- Tolerance: ±1% or ±0.1nH
- Self Resonant Frequency: Controlled within 10%
- Maximum Current: Up to 500mA depending on inductance
- Reflow Temperature: Peak 265°C, 260°C for 1-2 reflow cycles
- Environmental Resistance: Insulation resistance > 1000MQ, vibration, heat, and humidity tested
- Applications: Cellular phones, GPS, VCO, RF transceivers, Bluetooth, wireless LAN
Buy the Buy Multicomp AL Series Thin Film Chip Inductor Part Number MCFT0BT2N501 Online
Enhance your RF and communication projects with the high precision, RoHS compliant Thin Film Chip Inductor from the AL Series. Designed with photolithographic ceramic technology, it offers exceptional high SRF, tight tolerances, and superior temperature stability, making it perfect for cellular, GPS, VCO, and Bluetooth modules. Available in 0201 and 0402 sizes, these inductors support high current applications while maintaining stable inductance at high frequencies. Purchase online today for dependable performance and quick delivery.
Order your Multicomp AL Series MCFT0BT2N501 high frequency ceramic chip inductor today and ensure your RF circuits have reliable, stable inductance performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCFT0BT2N501?
You can click on the BUY or RFQ button to purchase MCFT0BT2N501 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT0BT2N501?
You can download the MCFT0BT2N501 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCFT0BT2N501?
MULTICOMP-PRO
