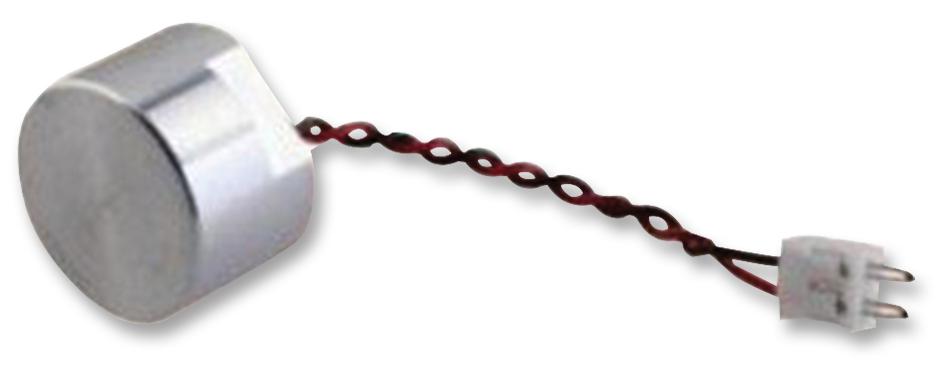

MULTICOMP-PRO MCUSD14A48S09RS30C Ultrasonic Transducer
This waterproof ultrasonic ceramic transducer is designed for receiver and transmitter applications, featuring high sensitivity, low power consumption, and high reliability. With a center frequency of 48 kHz, sound pressure level of 290 dB at 30cm/10V rms, and an operating temperature range of -40°C to 85°C, it is ideal for ultrasonic sensing in diverse environments. Constructed with an aluminum housing, it offers durability, dual-use functionality, and a compact, lightweight form factor suitable for various industrial and automation applications. Its beam pattern measures 110 x 50°, ensuring precise ultrasonic wave transmission and reception.
MULTICOMP-PRO MCUSD14A48S09RS30C Ultrasonic Transducer Specifications:
- Construction: Water Proof
- Using Method: Dual Use
- Centre Frequency: 48 + 1kHz
- Sound Pressure Level: 290 dB (30cm/10V rms)
- Sensitivity: >-90dB/V/pbar
- Beam pattern: 110 x 50°
- Capacitance: 2,500 + 25% pF at 1kHz
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Allowable Input Voltage: 160Vp-p
- Housing Material: Aluminum
Buy the Multicomp Series Ultrasonic Transducer: MCUSD14A48S09RS30C
Enhance your ultrasonic sensing projects with the waterproof Multicomp ultrasonic transducer. Featuring high sensitivity, a broad temperature range, and a durable aluminum housing, it provides precise transmission and reception of ultrasonic waves. Compact and lightweight, this transducer is suitable for industrial, automation, and sensing applications. Its 48 kHz center frequency ensures reliable performance, while the 290 dB sound pressure level at 30cm and sensitivity over -90dB make it ideal for demanding environments. Easy to integrate into various systems for optimal results.
Buy Multicomp MCUSD14A48S09RS30C now and experience unmatched reliability and performance in ultrasonic sensing applications.
