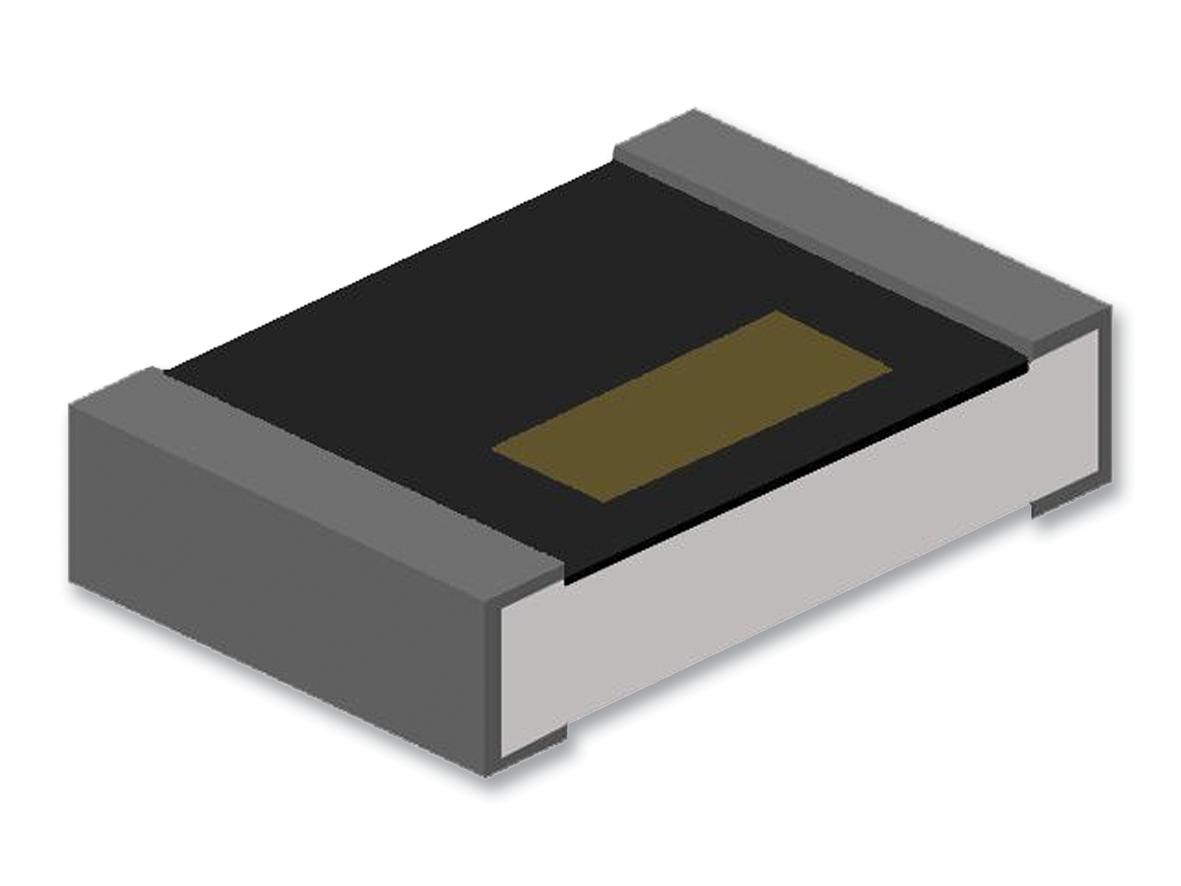

MULTICOMP-PRO MCFT0BT2N9 Thin Film Chip Inductor
The thin film chip inductor in the AL Series offers high self-resonant frequency, excellent Q factor, and superior temperature stability, making it ideal for RF and high-frequency applications such as cellular phones, GPS devices, and wireless modules. Constructed on alumina substrates with nickel and copper electrodes, this compact inductor features tight tolerance of ±1% or 0.1nH. Its stable inductance in high-frequency circuits ensures reliability in VCO, TCXO, RF transceivers, and Bluetooth modules, providing consistent performance in demanding electronic environments.
MULTICOMP-PRO MCFT0BT2N9 Thin Film Chip Inductor Specifications:
- Construction: Alumina substrate with inner Ni-Cr electrode, Cu circuits, Ni barrier layer, Sn overcoat, external Sn electrode
- Dimensions: 0201 - 0.6 ± 0.05 mm x 0.3 ± 0.05 mm; 0402 - 1 ± 0.05 mm x 0.5 ± 0.05 mm
- Inductance Range: 0.1nH to 20.8nH with tight tolerance of ±1% or ±0.1nH
- Self-Resonant Frequency: Controlled within 10%, minimum SRF from 10 GHz
- Maximum DC current: 500mA to 90mA depending on inductance value
- Reflow Temperature Peak: 265°C, with up to 2 reflow cycles allowed
- Environmental Resistance: Insulation resistance > 1 GΩ, withstand damp heat, solder heat, and temperature cycling
- Impedance: High SRF, low DCR
- Standards: Meets MIL-STD-202F, JIS-C 5201-1
Buy the Buy AL Series Multicomponent Thin Film Chip Inductor Part Number MCFT0BT2N9 Online
Purchase the AL Series Thin Film Chip Inductor MCFT0BT2N9 online for superior performance in RF and high-frequency circuits. Crafted on alumina substrates with high SRF, outstanding Q, and temperature stability, this compact component is ideal for cellular, GPS, Bluetooth, and wireless communication modules. Its precise tolerance of ±1% or 0.1nH ensures consistent inductance. Built to withstand high reflow temperatures with minimal stress, it delivers reliable operation in critical electronic applications. Buy now to ensure your RF circuits perform flawlessly with this stable, durable, and RoHS compliant inductor.
Get AL Series thin film chip inductor MCFT0BT2N9 today—designed for precision, reliability, and high-frequency stability in RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCFT0BT2N9?
You can click on the BUY or RFQ button to purchase MCFT0BT2N9 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT0BT2N9?
You can download the MCFT0BT2N9 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCFT0BT2N9?
MULTICOMP-PRO
