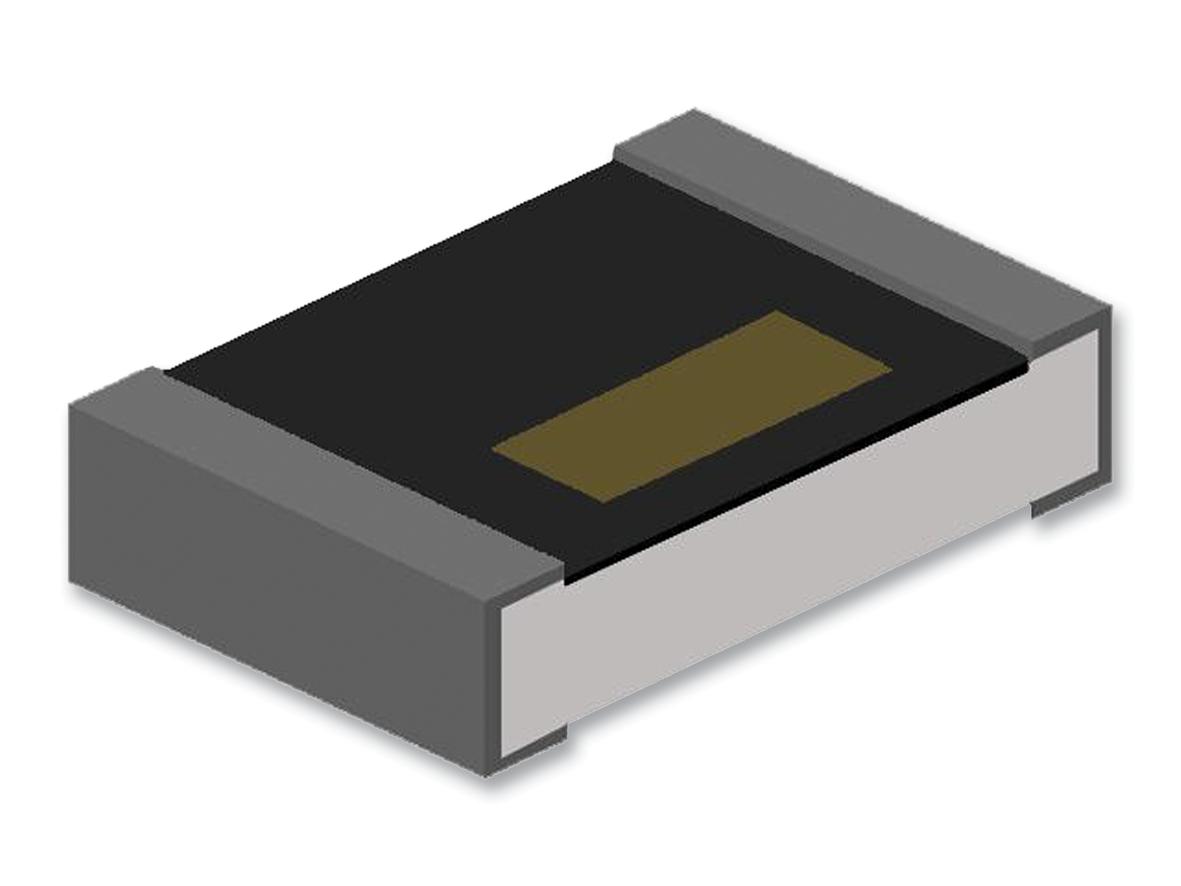

MULTICOMP PRO MCFT0BT3N1 Thin Film Chip Inductor
The Thin Film Chip Inductor from the AL Series offers high performance with tight tolerance and excellent RF stability. Designed on alumina substrates with photolithographic single-layer ceramic construction, it features high SRF, superior temperature stability, and stable inductance in high-frequency circuits. Suitable for cellular, GPS, VCO, TCXO, RF transceiver, wireless LAN, and Bluetooth applications, these inductors provide reliable electrical characteristics, RoHS compliance, and precise inductance control for critical RF and high-frequency designs.
MULTICOMP PRO MCFT0BT3N1 Thin Film Chip Inductor Specifications:
- Construction: Alumina substrate, Ni-electrode inner electrode, Cu circuits, Ni barrier layer, Sn overcoat, external electrode
- Dimensions: 0201: 0.6 x 0.3 x 0.23 mm, 0402: 1.0 x 0.5 x 0.32 mm
- Inductance Range: 0.1nH to 27nH with ±1% or ±0.1nH tolerance
- SRF: min. 10 GHz for small values, up to 45 GHz for larger values
- Current Rating: up to 500mA depending on inductance
- RoHS Compliant: Yes
- Reflow Temperature Peak: 265°C, 260°C for 1 cycle
- Environmental Resistance: Insulation resistance > 1000MΩ, Solderability 95% min., withstand high temperature and humidity
- Packaging: Reel with 10,000 units for 0201 size, 0402 size compatibility
- Standards: MIL-STD-202F, JIS-C 5201-1
Buy the AL Series Thin Film Inductor: MCFT0BT3N1
Order the AL Series Thin Film Chip Inductor MCFT0BT3N1 online now to ensure high RF stability, accurate inductance, and reliable performance in your critical RF and wireless applications. Designed with state-of-the-art ceramic technology and RoHS compliance, these inductors deliver excellent frequency stability and thermal reliability. Suitable for cellular, GPS, VCO, TCXO, RF transceiver, and Bluetooth modules, they meet strict environmental and industry standards. Purchase today to upgrade your high-frequency electronic systems with precision-engineered inductors that guarantee consistent results and long-term durability.
Get AL Series MCFT0BT3N1 today—built for high RF stability and precise inductance control in critical electronic modules.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT0BT3N1?
You can click on the BUY or RFQ button to purchase MCFT0BT3N1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT0BT3N1?
You can download the MCFT0BT3N1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT0BT3N1?
MULTICOMP PRO
