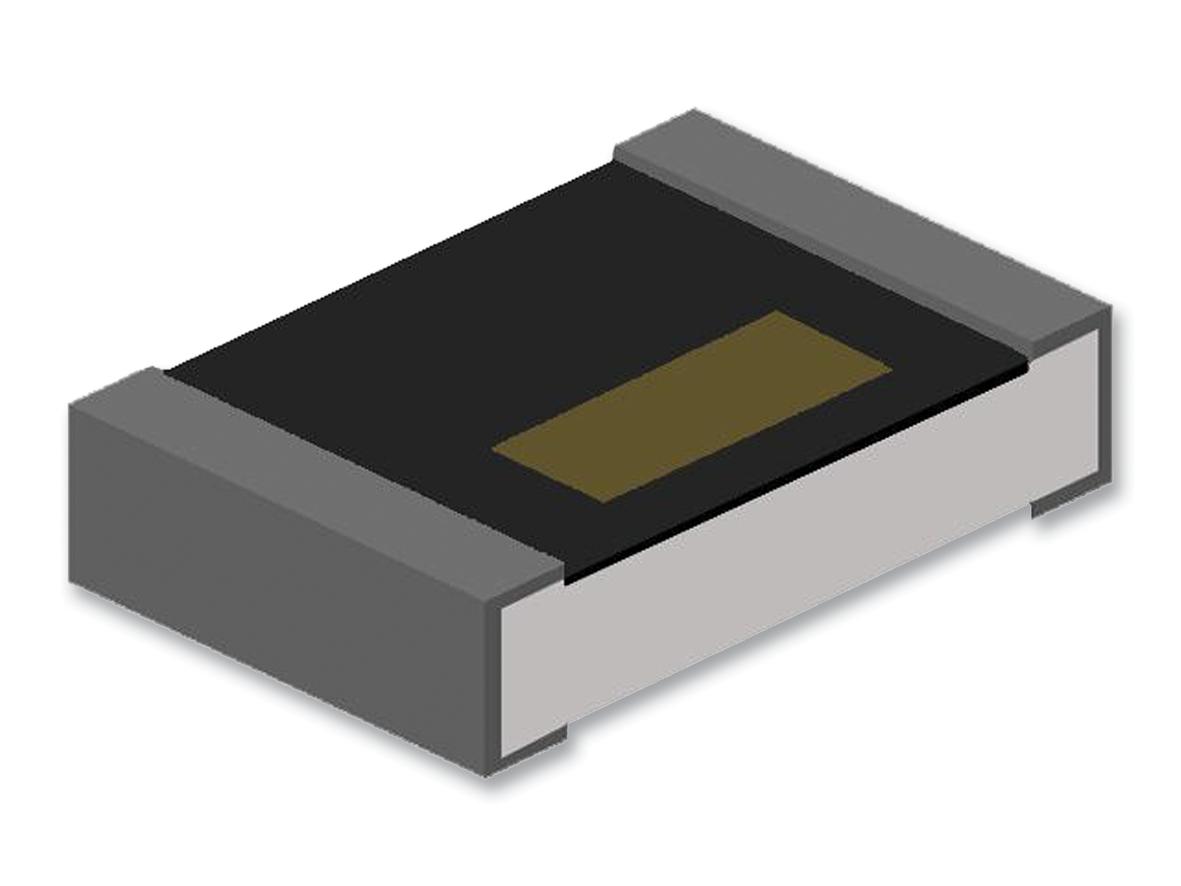

MULTICOMP PRO MCFT0BT3N9 Thin Film Chip Inductor
The Ultra-High Frequency Thin Film Chip Inductor series offers precise inductance values, high SRF, and excellent thermal stability. Constructed on alumina substrates with nickel and copper electrodes, these inductors feature tight tolerances of ±1% or ±0.1nH, making them ideal for RF applications such as cellular, GPS, wireless LAN, Bluetooth, and RF transceivers. Designed for high current, these inductors support critical needs in VCO, TCXO circuits, and communication modules. They are RoHS compliant, with specifications verified through rigorous testing procedures, ensuring reliable performance in demanding electronic environments.
MULTICOMP PRO MCFT0BT3N9 Thin Film Chip Inductor Specifications:
- Construction: Alumina substrate with Ni-electrode inner layer, Cu circuits, Sn-overcoat external electrode
- Dimensions: 0402 size 1.0 × 0.5 mm, weight varies with size
- Inductance range: 0.1nH to 20.8nH, tolerance ±1%, ±0.2, ±0.3nH
- SRF: 10 GHz to 500 MHz for high current types, various models with detailed SRF values
- Maximum DC current: 90-500 mA depending on inductance value
- Temperature range: -40°C to +85°C, with high temperature exposure up to +1000 hours
- Reflow temp: Peak 265°C, allows for three reflow cycles
- Insulation resistance: >1000 MΩ at 100V DC for 1 minute
- Solderability: Coverage >95% at 245°C for 3 seconds
- Environmental compliance: RoHS, tested for damp heat, temperature cycling, and dielectric withstand
Buy the Buy Multicomp Thin Film Chip Inductor Part Number MCFT0BT3N9 Online
Discover the high-performance Thin Film Chip Inductor suitable for RF applications, GPS, Bluetooth, and wireless communication modules. This precision component features tight tolerances, high SRF, and exceptional thermal stability, ensuring optimal performance in demanding environments. RoHS compliant, it supports high current and has been tested for environmental durability. Whether designing mobile devices, RF transceivers, or communication modules, purchase this reliable inductor online and enhance your electronic design's robustness and signal integrity effortlessly.
Buy Multicomp MCFT0BT3N9 high-frequency inductor now and ensure reliable signal stability in RF modules and communication devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT0BT3N9?
You can click on the BUY or RFQ button to purchase MCFT0BT3N9 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT0BT3N9?
You can download the MCFT0BT3N9 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT0BT3N9?
MULTICOMP PRO
