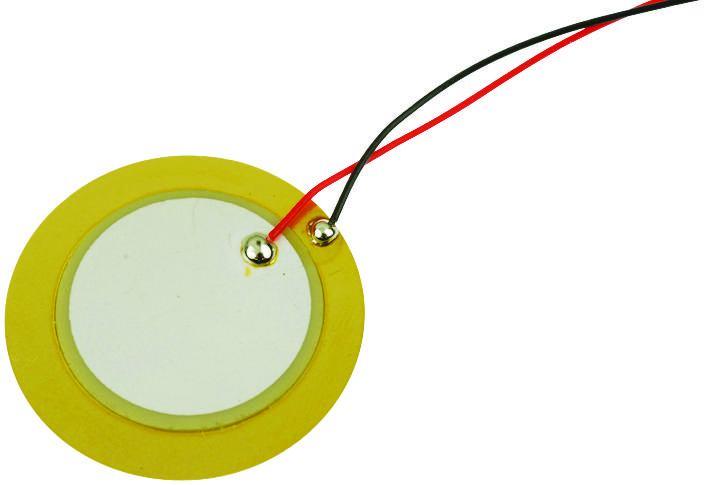

MULTICOMP PRO MCFT27T42AL127 Piezoelectric Transducer
The MCFT-27T-4.2AL-127 is a high-quality piezoelectric transducer element ideal for diaphragm-based applications such as audio devices and sensors. It operates at a resonant frequency of approximately 4.2 kHz, with a capacitance of 25,000 pF (+30%) at 100Hz. The device can withstand input voltages up to 30Vp-p and performs reliably within a temperature range of -20°C to +60°C. Its compact dimensions and robust ceramic and brass construction ensure durability and precision in various electronic applications.
MULTICOMP PRO MCFT27T42AL127 Piezoelectric Transducer Specifications:
- Resonant Frequency: 4.2 kHz ±0.5 kHz
- Resonant Resistance: 300 ohms max.
- Capacitance: 25,000 pF +30% at 100Hz
- Input Voltage: 30Vp-p max.
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Material: Ceramic with Ag Electrode, Brass
- Dimensions: Millimetres (specific dimensions not provided, typically compact)
- RoHS compliant
Buy the Multicomp Series Piezoelectric Transducer: MCFT-27T-4.2AL-127
Purchase the Multicomp Series piezoelectric transducer MCFT-27T-4.2AL-127 online today to ensure precise sound and sensor performance in your electronic projects. Featuring a resonant frequency of 4.2 kHz, capacitance of 25,000 pF, and operating voltage of 30V, it is suitable for diaphragm applications requiring durability and high reliability. Its temperature range from -20°C to +60°C makes it versatile for various environments. The compact design with ceramic and brass materials guarantees long-lasting performance for industrial and consumer electronics. Get yours now and benefit from fast delivery and excellent quality assurance.
Order your Multicomp Series MCFT-27T-4.2AL-127 piezoelectric transducer today and enhance your diaphragm-based audio and sensing projects with reliable performance.
