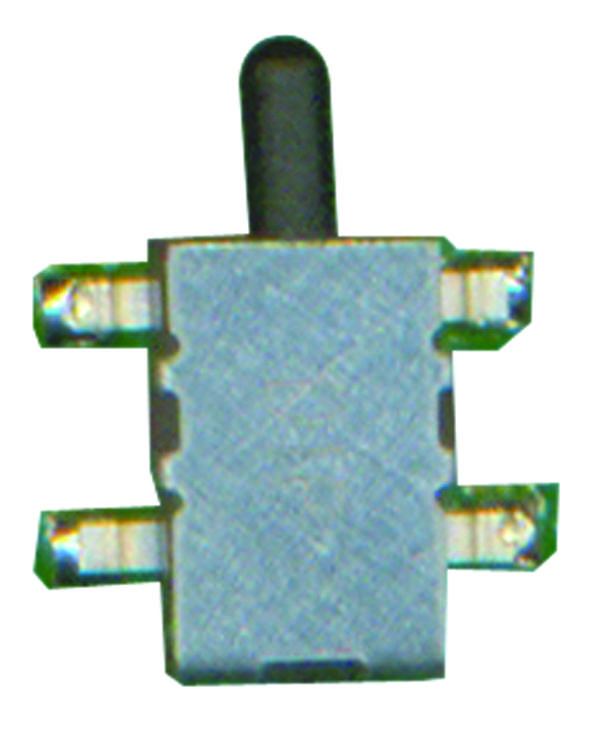

MULTICOMP PRO MCFTE3CV Micro Detector Switch
The MCFTE-3C-V is a single-pole, single-throw SPST micro detector switch with a solder terminal, normally closed contact, and a piano wire stem. Made with stainless steel contacts, brass terminals, and a durable high-temperature nylon stem and base, it is engineered for industrial use. It offers a maximum contact resistance of 2 ohms, insulation resistance of 100 megaohms, and dielectric strength of 100VAC for one minute. Suitable for automation and control panels, it ensures reliable switching performance in demanding environments.
MULTICOMP PRO MCFTE3CV Micro Detector Switch Specifications:
- Maximum Operating Force: 50gf
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +70°C
- External Height: 2mm
- External Width: 4mm
- External Depth: 5.55mm
- Electrical Life: 100,000 cycles
- Rating: 1mA, 5V DC
- Maximum Contact Resistance: 2Ω
- Minimum Insulation Resistance: 100MQ
- Dielectric Strength: 100V AC/1minute
- Number of Poles: 1
- Contact Configuration: SPST
- Material (Cover): Nylon high-temperature thermoplastic, Black
- Material (Base): Nylon high-temperature thermoplastic, Black
- Material (Stem): Stainless steel
- Contact Material: Stainless steel with silver or gold plating
- Terminal Material: Brass with silver or gold plating
- Spring Material: Piano wire
Buy the Multicomp Micro Detector Switch – Reliable SPST for Industrial Applications
Purchase the multicomp series MCFTE-3C-V micro detector switch online now and enhance your control systems with a reliable SPST switch. Featuring stainless steel contacts, a high-temperature nylon stem, and robust construction, this switch provides consistent performance in industrial environments. Its compact size, high insulation resistance, and extensive electrical lifespan ensure durability and safety. Ideal for automation, control panels, and instrumentation, it guarantees dependable switching in demanding conditions. Order today and give your projects the quality and reliability they deserve.
Order your multicomp series MCFTE-3C-V micro detector switch today and ensure your industrial projects benefit from dependable and precise switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFTE3CV?
You can click on the BUY or RFQ button to purchase MCFTE3CV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFTE3CV?
You can download the MCFTE3CV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFTE3CV?
MULTICOMP PRO
