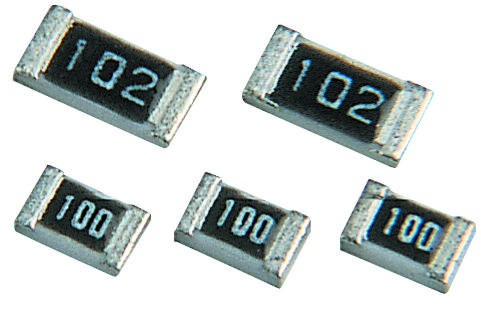

MULTICOMP PRO MCHP06W2F2203T5E High Power Thick Film Resistor
The Multicomp Pro HP06 series surface-mount high-power thick film resistors are designed in the standard 1206 size, offering resistance from 1Ω to 10MΩ with ±1% and ±5% tolerances. They feature a 0.5W power rating, maximum voltage of 200V, and temperature coefficients of ±200ppm/°C for low resistance values and ±100ppm/°C for higher resistance ranges. These resistors ensure excellent solderability, are suitable for both wave and reflow soldering, and operate reliably from -55°C to +155°C—making them ideal for power applications, voltage division, and current sensing in electronic circuits.
MULTICOMP PRO MCHP06W2F2203T5E High Power Thick Film Resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±1%, ±5%
- Power Rating: 0.5W
- Maximum Working Voltage: 200V
- Temperature Coefficient: ±200ppm/°C for 1Ω-10Ω, ±100ppm/°C for 11Ω-10MΩ
- Operating Temperature: -55°C to +155°C
- Soldering: Suitable for wave and reflow soldering
- Material: Thick film resistive element on high purity alumina substrate
- Termination: Inner Ag, Middle Ni, Outer Sn
- RoHS Compliant
- Rated at 500mW for high power applications
Buy the Buy multicomp high power thick film resistor Part Number MCHP06W2F2203T5E Online
Order the multicomp high power thick film resistor MCHP06W2F2203T5E online today to ensure high efficiency and stability in your electronic projects. These surface-mount, 1206 resistors deliver resistance from 1Ω to 10MΩ with ±1% tolerance and operate reliably at voltages up to 200V. Rated at 0.5W, they are compatible with wave and reflow soldering techniques and withstand temperatures from -55°C to +155°C. Perfect for power management, voltage dividers, and current sensing throughout various electronic applications, offering excellent performance and durability.
Buy multicomp high power thick film resistor MCHP06W2F2203T5E now and experience unmatched reliability and performance in electronic power circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHP06W2F2203T5E?
You can click on the BUY or RFQ button to purchase MCHP06W2F2203T5E from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHP06W2F2203T5E?
You can download the MCHP06W2F2203T5E datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHP06W2F2203T5E?
MULTICOMP PRO
