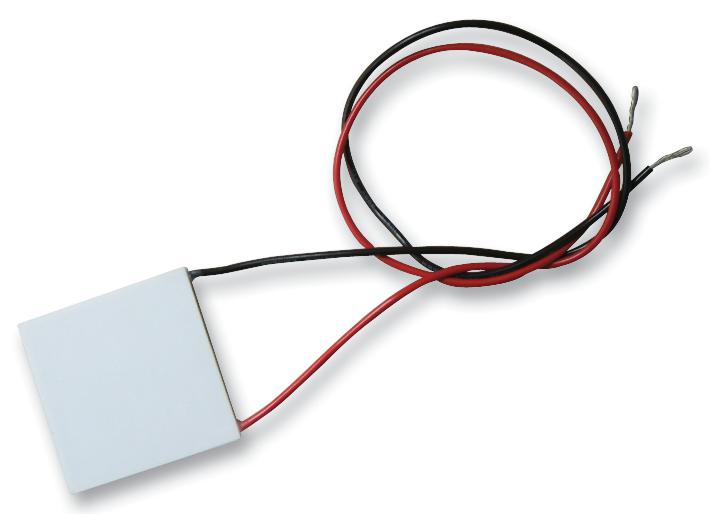

MULTICOMP PRO MCHPE0711008E Thermoelectric Cooler
The MCHPE-071-10-08-E is a high-power density Peltier cooler capable of handling 6A and 8.9V with a power rating of 30W. It features thermoelectric cooling transducer functionality, has an internal resistance of 1.21 ohms, and can achieve a maximum temperature difference of 69°C. Designed for high reliability, it includes high-integrity nickel diffusion barriers on its elements, rugged construction for demanding environments, and a porched style for enhanced lead wire strength. The module is sealed and lapped for multi-module applications and complies with RoHS and Reach standards. Commonly used in HVAC applications, this Peltier cooler offers robust performance and durability.
MULTICOMP PRO MCHPE0711008E Thermoelectric Cooler Specifications:
- Power Rating: 30W
- Current Handling: 6A
- Voltage: 8.9V
- Internal Resistance: 1.21 ohms (+10%)
- Maximum Temperature Difference: 69°C
- Operating Temperature Range: -90°C to +100°C
- External Dimensions: Length 20mm, Depth 3.1mm
- Max Solder Melting Point: 138°C
- Maximum Compression: 1 MPa
- Sealed and lapped for multi-module use
- Material: Nickel diffusion barriers on elements
- Standards: RoHS and Reach compliant
Buy the Multicomp Pro 071-10-08 E – Reliable Thermoelectric Cooler for Industrial Applications
Order the multicomp:ro Peltier Cooler capable of delivering 30W of cooling power, handling 6A at 8.9V, with robust construction for demanding environments. Ideal for HVAC, precision cooling, and thermal management, this module features high reliability, sealed design, and nickel diffusion barriers for long-term durability. Its rugged construction withstands high temperatures up to 100°C, offers a maximum temperature difference of 69°C, and conforms to RoHS and Reach standards. Purchase online today for high-performance cooling solutions that ensure efficiency and longevity.
Buy multicomp:ro Peltier Cooler 30W now and experience unmatched reliability and performance in your cooling projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHPE0711008E?
You can click on the BUY or RFQ button to purchase MCHPE0711008E from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHPE0711008E?
You can download the MCHPE0711008E datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHPE0711008E?
MULTICOMP PRO
