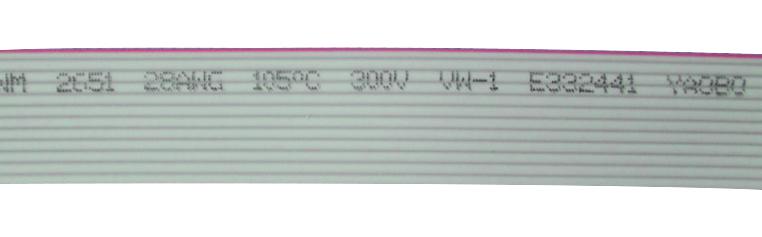

MULTICOMP PRO R2651DTSY16SC85 Ribbon Cable
This 28AWG grey ribbon cable features a 1.27mm pitch, ideal for internal wiring of appliances and electronic equipment. Made of tinned copper conductors with UL-rated PVC insulation, it offers a temperature rating of 105°C and a voltage capacity of 300V. Available in multiple core configurations, each cable provides excellent electrical properties including low resistance, high tensile strength, and reliable voltage withstand capability, making it suitable for various electronic and appliance wiring applications with RoHS compliance ensuring environmental safety.
MULTICOMP PRO R2651DTSY16SC85 Ribbon Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.38 mm
- Insulation Material: PVC
- Insulation Temperature Rating: 105°C
- Voltage Rating: 300V
- Minimum Insulation Thickness: 0.26 mm
- Pitch: 1.27 mm
- Core Configurations: 6,10,14,16,20,26,40,50,64 cores
- Maximum Resistance: 237Ω/kM at 20°C
- Insulation Resistance: Minimum 100MQ/kM at 20°C
- Tensile Strength: Rated for 1500PSI (unaged) and 1290PSI (aged at 85%)
- Voltage-Withstand: 2500V for 1 minute
- RoHS Compliant
Buy the Pro-Power Series Ribbon Cable: R2651DTSY16SC85
Enhance your electronic and appliance wiring with the high-quality Pro-Power Ribbon Cable, 28AWG, 1.27mm pitch, available in various core counts. Manufactured with tinned copper conductors and UL-rated PVC insulation, it guarantees excellent electrical performance and safety. The flexible design ensures easy handling and reliable connections. Ideal for internal wiring of appliances and electronic equipment, this RoHS-compliant ribbon cable offers lasting durability, low resistance, and consistent performance to meet your project needs. Order online now for fast delivery and trusted quality.
Order your Pro-Power Series Ribbon Cable R2651DTSY16SC85 today and ensure reliable connections for your electronic projects with high-quality wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R2651DTSY16SC85?
You can click on the BUY or RFQ button to purchase R2651DTSY16SC85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R2651DTSY16SC85?
You can download the R2651DTSY16SC85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R2651DTSY16SC85?
MULTICOMP PRO
