MULTICOMP PRO MP002683 industrial connectors

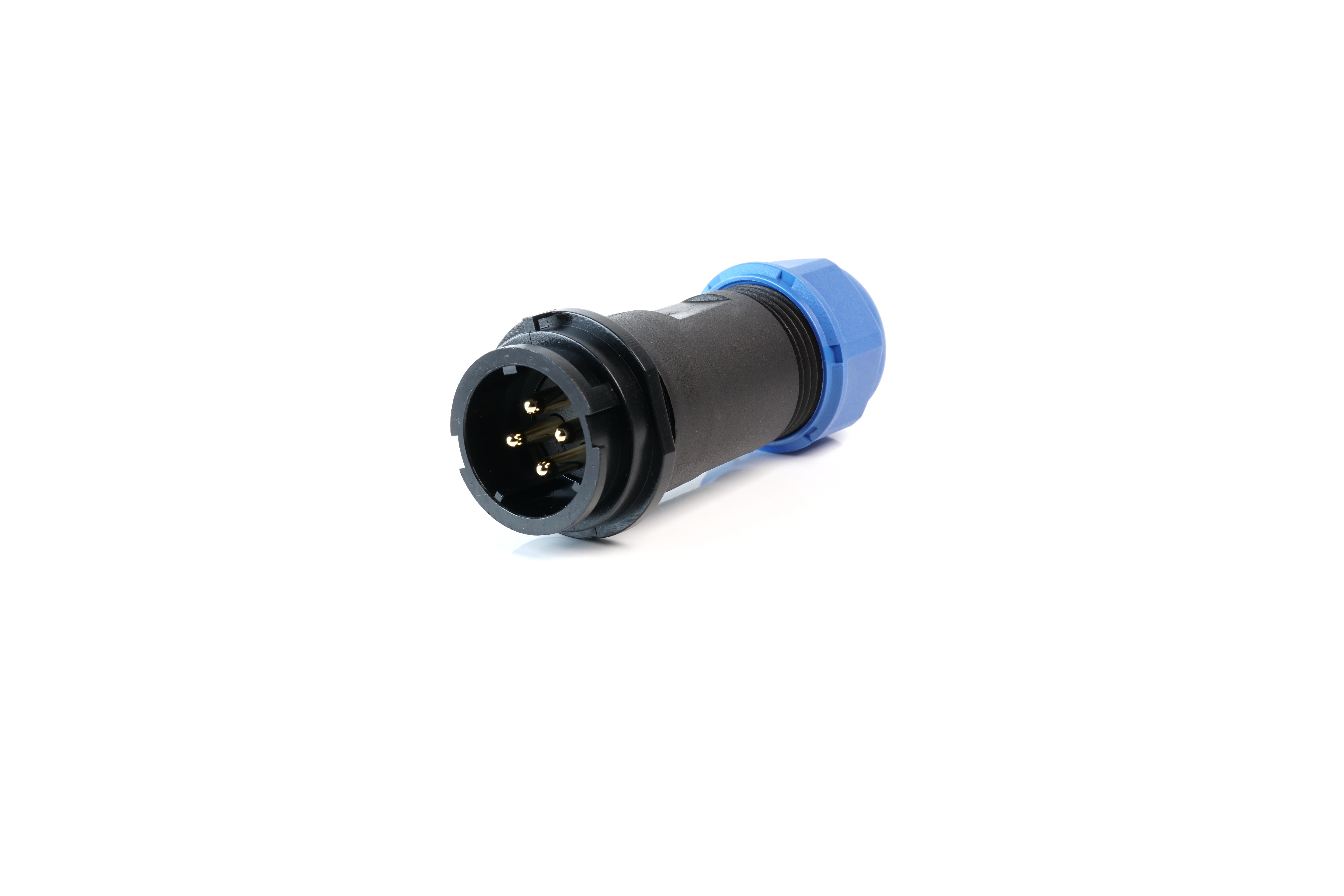

The MP-T21 IP67 series is a robust collection of connectors with bayonet couplings that enable quick, secure connections suitable for harsh environments. Designed for indoor and outdoor use, these connectors are available in diverse configurations including panel mount, cable mount, and inline options, accommodating cable-to-panel or cable-to-cable setups. Rated IP67 for excellent weather resistance, they support various poles and termination types such as solder and screw, with optional protective caps for connection safety. They are ideal for automation, process control, industrial automation, security, and medical applications, fitting a 21mm cut-out.
MULTICOMP PRO MP002683 industrial connectors Specifications:
- Material: Nylon66 shell, insert made of PPS with max. temperature 260°C, brass contacts with gold plating
- IP Rating: IP67 for water and dust resistance
- Coupling: Bayonet type for quick connection/disconnection
- Configurations: Panel mount, cable mount, inline cable mount
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder and screw options available
- Rated Current: Up to 30A depending on contacts
- Rated Voltage: Up to 500V AC
- Test Voltage: 1500V AC, 1 min
- Temperature Range: -40°C to +80°C
- Contacts: Brass with gold plating, contact resistance approximately 1 mΩ
- Mating Cycle: 500 times
- Physical: Fits 21mm panel cut-outs, outer diameter range up to 12mm
- Additional: Rubber sealing rings, retention nuts included, RoHS compliant
Buy the Multicomp IP67 – Reliable Connectors for Industrial Applications
Enhance your industrial and outdoor applications with Multicomp IP67 connectors designed for durability and quick installation. Featuring bayonet coupling for secure, easy connection, these connectors are suitable for harsh environments and support multiple configurations including panel, cable, and inline mountings. With solder and screw terminations, rated IP67 for water and dust resistance, and capable of withstanding temperatures from -40°C to +80°C, they are perfect for automation, process control, medical, security, testing, and measurement sectors. Ensure reliable connectivity today!
Buy Multicomp IP67 connectors now and experience durable, weather-resistant connectivity for industrial automation and outdoor use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002683?
You can click on the BUY or RFQ button to purchase MP002683 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002683?
You can download the MP002683 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002683?
MULTICOMP PRO
