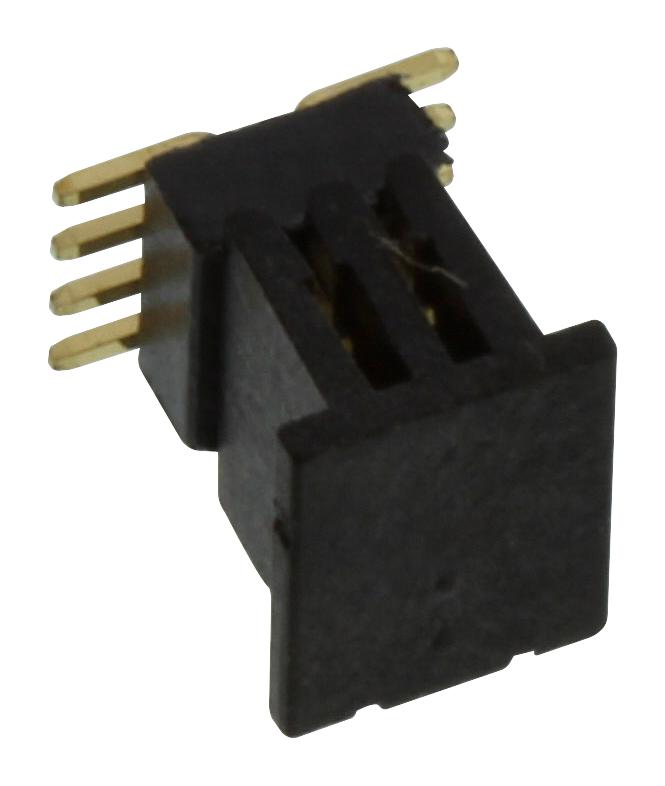

MULTICOMP PRO MCHVS1D08G Vertical Pin Header

This double-row, vertical, surface-mount pin header with cap from the Multicomp Pro series offers reliable connectivity for electronic projects. Constructed with high-temp plastic insulators and gold-plated copper alloy contacts, it features a 1mm pitch with options up to 40 positions and a height of 3.7mm. Boasting a current rating of 1A and voltage rating of 50V AC/DC, it withstands 500V for one minute and operates between -25°C to +105°C. The header ensures low contact resistance of 20mΩ and high insulation resistance of 1000MΩ, making it ideal for compact, robust electronic assemblies.

View MCHVS1D08GDatasheet [pdf]

Buy the Multicomp Series Vertical Pin Header: MC-HVS1-D08-G

Enhance your electronic assemblies with the versatile vertical pin header from Multicomp Pro. Designed with 1mm pitch, 2-row configuration, and multiple positions, it provides a secure connection solution for PCB applications. The high-temp plastic insulator and gold-plated copper contacts deliver durability and corrosion resistance. Rated for 1A and 50V, with an excellent withstand voltage of 500V for one minute, it operates efficiently from -25°C to +105°C. Ideal for compact, reliable, and high-performance electronic systems. Purchase online today for top-quality connectivity solutions.

Order your Multicomp Series MC-HVS1-D08-G vertical pin header with cap today and secure reliable, easy-to-assemble connections for your electronic projects.
