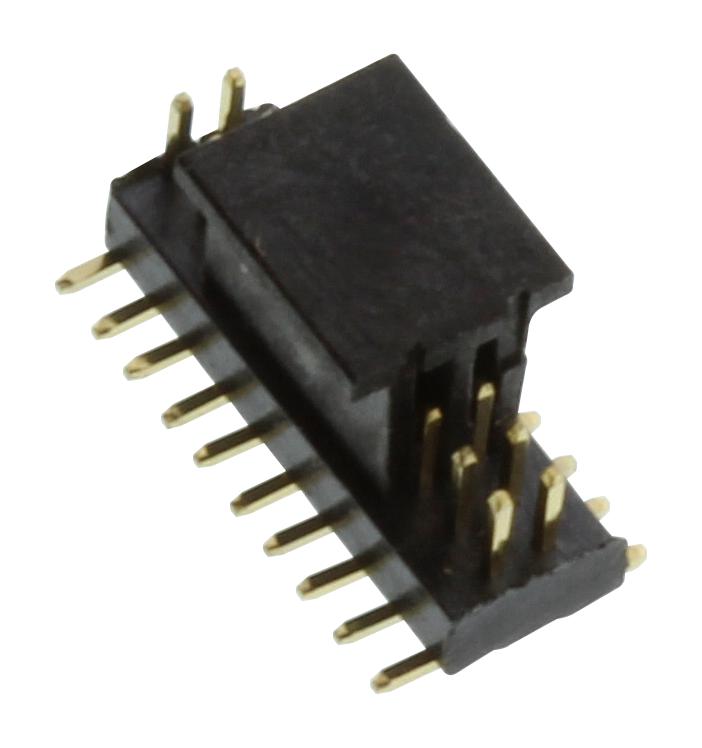

MULTICOMP-PRO MCHVS1D20G Pin Header
The Imm Pin Header with Cap is a double-row, vertical, SMD type connector designed for reliable connection in electronic assemblies. It features a RoHS-compliant high-temperature plastic insulator, gold-plated copper alloy contacts, and a compact 1mm pitch with a height of 3.7mm. The connector supports a current rating of 1A and a voltage rating of 50V, with a contact resistance of 20mΩ maximum. It withstands 500V for one minute, operates between -25°C and +105°C, and offers a robust insulation resistance of 1000MΩ minimum, ideal for space-efficient circuitry.
MULTICOMP-PRO MCHVS1D20G Pin Header Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Insulator Material: High temp. plastic (LCP UL94V-0)
- Contact Material: Copper alloy, gold plated
- Color: Black
- Dimensions: 1mm pitch, 3.7mm height, 6 to 40 positions, millimeter measurements vary
- RoHS compliant
Buy the Multicomp Series SMD Pin Header: MCHVS1D20G
Enhance your electronic assemblies with the high-quality Multicomp Pin Header designed for optimal space efficiency and reliability. Featuring a 1mm pitch, gold-plated contacts, and robust insulation, this connector supports currents up to 1A and voltages up to 50V, making it ideal for compact and sensitive devices. Its robust construction ensures excellent performance in a wide temperature range from -25°C to 105°C. Available in multiple sizes from 6 to 40 positions, it’s perfect for diverse circuit configurations and demanding applications. Order online now for fast delivery and unmatched quality.
Get Multicomp Series MCHVS1D20G today—built for precise electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHVS1D20G?
You can click on the BUY or RFQ button to purchase MCHVS1D20G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVS1D20G?
You can download the MCHVS1D20G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHVS1D20G?
MULTICOMP-PRO
