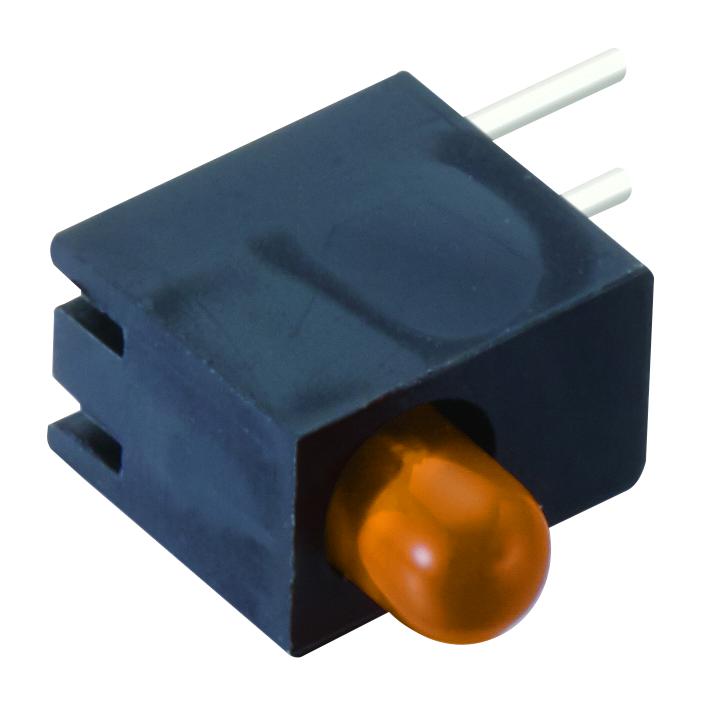

MULTICOMP PRO L514HAD Round Orange-Red LED
The 3mm Round Type Flangeless and Housing LED produces an orange-red emission at 635 nm with a wide viewing angle of 50°. It features GaAsP on GaP dice material, allowing for reliable, high-brightness output suitable for indicator and illumination applications. With a peak luminous intensity of up to 40 mcd and forward voltage between 1.8V and 2.6V at 20mA, it operates efficiently over a temperature range of -40°C to +85°C. The LED is designed for easy soldering at 260°C for 5 seconds, ensuring durability and consistent performance in various environments.
MULTICOMP PRO L514HAD Round Orange-Red LED Specifications:
- Peak Wavelength: 635 nm
- Viewing Angle: 50°
- Luminous Intensity: 20-40 mcd
- Forward Voltage: 1.8-2.6 V at 20 mA
- Reverse Current: 10 pA at 5 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Max Power Dissipation: 85 mW
- Peak Forward Current: 100 mA (duty 1/10 @ 1kHz)
- Recommended Operating Current: 20 mA
- Lead Soldering Temp: 260°C for 5 seconds
- Dimensions: 3.0 mm diameter, flangeless with housing
Buy the Multicomp Series 3mm LED: L514HAD
Enhance your electronic projects with the reliable 3mm round orange-red LED. Featuring a 635 nm wavelength and a wide 50° viewing angle, it provides bright, consistent illumination suitable for indicators and backlighting. Its GaAsP on GaP dice material ensures optimal efficiency and durability. Designed for easy soldering at 260°C for 5 seconds, this LED operates effectively from -40°C to +85°C, making it ideal for various industrial, commercial, and DIY applications. Purchase online today for quality and performance you can trust.
Get Multicomp Series 3mm LED L514HAD today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO L514HAD?
You can click on the BUY or RFQ button to purchase L514HAD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part L514HAD?
You can download the L514HAD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of L514HAD?
MULTICOMP PRO
