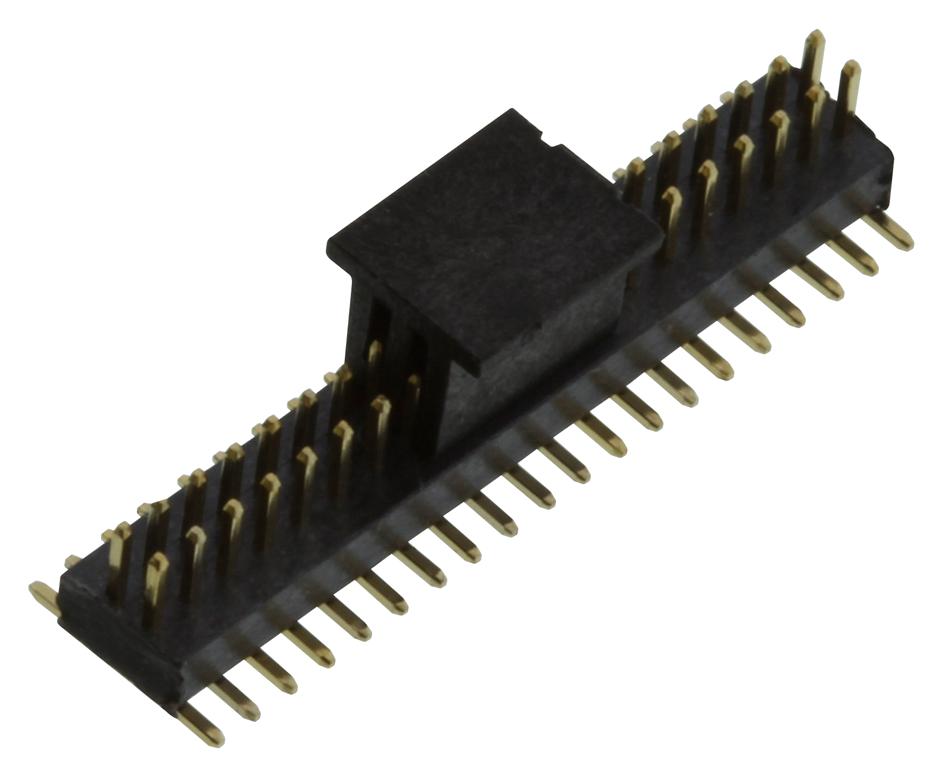

MULTICOMP-PRO MCHVS1D40G Vertical Pin Header
This is a vertical, surface-mount double-row pin header with cap, designed for industrial and electronic applications requiring reliable connections. It features a 1mm pitch with a height of 3.7mm, available in various configurations from 6 to 40 positions. Made with high-temperature plastic insulators (LCP UL94V-0) and gold-plated copper alloy contacts, it offers excellent electrical performance, including a 1A current rating, 50V voltage rating, 20mΩ contact resistance, and 500V withstand voltage. Suitable for compact, high-density circuit designs, it ensures durability and reliable performance under operating temperatures from -25°C to +105°C.
MULTICOMP-PRO MCHVS1D40G Vertical Pin Header Specifications:
- Pitch: 1mm
- Height: 3.7mm
- Positions: 6 to 40 in various configurations
- Material: High-temp plastic (LCP UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold-plated
- Current Rating: 1A
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Dimensions: Based on length and number of positions, typical height 3.7mm
Buy the Multicomp Pro MC-HVS1D40G – Reliable Vertical Pin Header for Industrial Applications
Order the Multicomp Pro vertical pin header MC-HVS1D40G online now to ensure reliable, high-quality connections for your electronic projects. Featuring a 1mm pitch, high-temperature plastic insulators, gold-plated contacts, and a versatile range of configurations from 6 to 40 positions, this SMD component is designed for durability in demanding industrial and manufacturing applications. With a current rating of 1A and voltage compatibility up to 50V, it ensures safe operation under extreme temperatures, making it ideal for compact, high-density circuitry. Purchase today for fast delivery and technical support.
Get Multicomp Pro MC-HVS1D40G today—built for high-density, durable, and reliable electronic connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHVS1D40G?
You can click on the BUY or RFQ button to purchase MCHVS1D40G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVS1D40G?
You can download the MCHVS1D40G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHVS1D40G?
MULTICOMP-PRO
