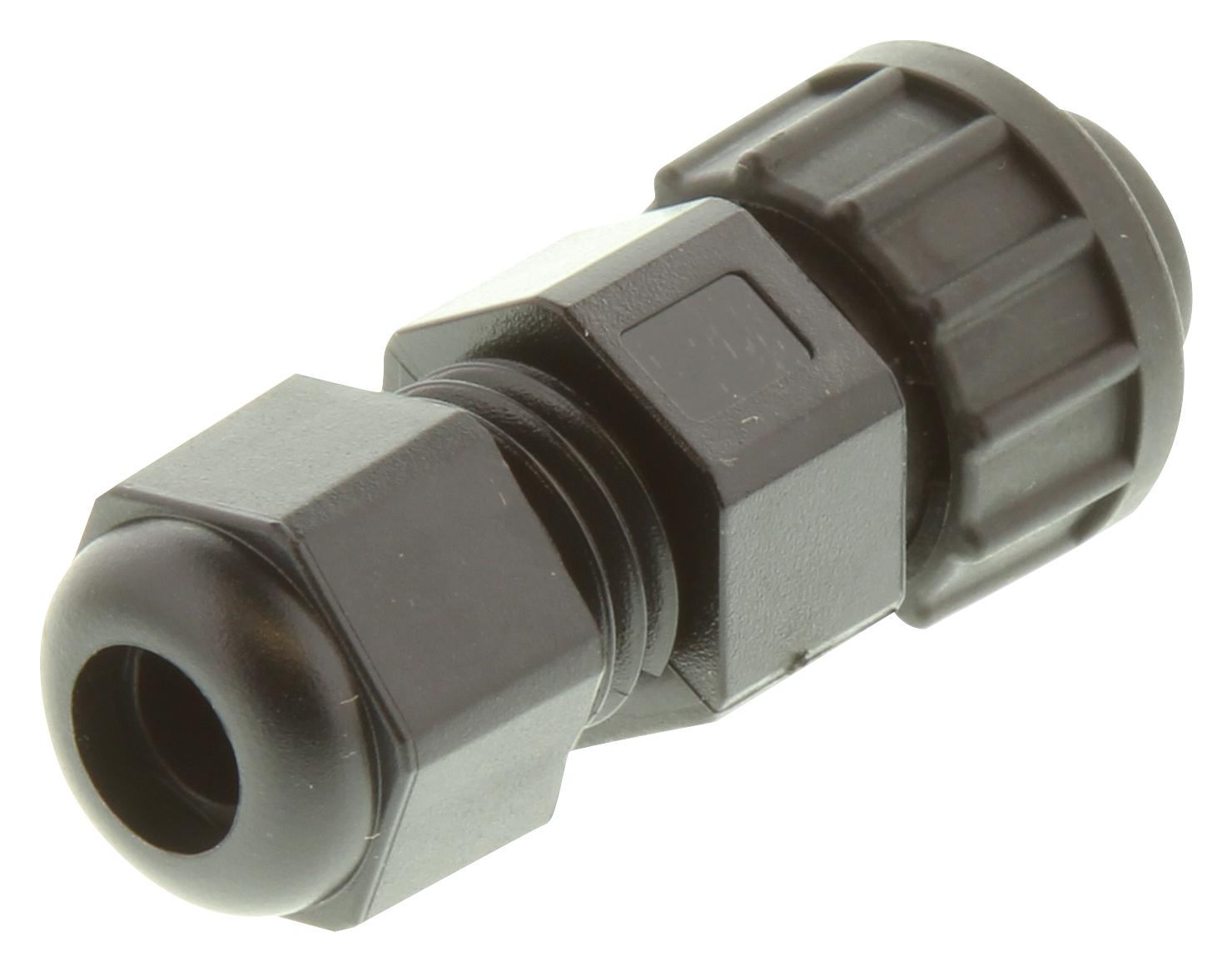

MULTICOMP PRO 2CT3032W02300 Industrial Female Connector
The 2CT3032-W02300 from Multicomp is a two-way, 5A field wiring female connector featuring solder pin termination. It is an IP67-rated circular in-line connector with a lock-type mating style, suitable for industrial applications. The connector body is made of nylon with glass fill and polybutylene terephthalate. It has a contact resistance of less than or equal to 30 milliohms, and an insulation resistance of at least 100 megaohms at 500V DC. The connector is durable for up to 500 mating cycles and operates within a temperature range of -40°C to +100°C. Copper alloy pin contacts are gold-plated, and the connector withstands salt spray corrosion tests for 48 hours. It supports wire gauges from 22 AWG to 24 AWG, with a cable outer diameter of 4mm to 6.5mm. Multicomp products are rated highly, with a 4.6 out of 5-star rating, and come with a 12-month limited warranty. Suitable for industrial applications.
MULTICOMP PRO 2CT3032W02300 Industrial Female Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable Outer Diameter: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ at DC 500V
- Insulation Resistance: ≥100MΩ at 500V
- Durability: 500 cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: Salt spray contact 48 hours
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 30 min)
Buy the Multicomp 2CT3032-W02300 – Reliable Industrial Female Connectors for Industrial Applications
Order the Multicomp 2CT3032-W02300 online today and secure a high-quality, waterproof female connector designed for industrial environments. With solder pin termination, gold-plated contacts, and a robust IP67 rating, this connector guarantees durability, corrosion resistance, and high electrical performance. Its support for 22-24 AWG wires, temperature tolerance up to 100°C, and ability to withstand 500 mating cycles make it ideal for complex industrial wiring projects. Purchase online now for fast delivery and reliable connection solutions.
Buy Multicomp 2CT3032-W02300 now and experience unmatched reliability and performance in industrial wiring and automation systems.
