MULTICOMP-PRO MCKPIG1410B Piezo Buzzer
The multicomp Piezo Buzzer operates at 12V DC with a sound pressure level of 85dB at 10cm, featuring a resonant frequency of 4.3 kHz. It measures 14mm in diameter and 8.3mm in height, made from durable PBT material in black. The buzzer handles maximum ratings of 16V DC and 8mA current, with an operating temperature from -20°C to +80°C. It is RoHS compliant, suitable for various electronic alert systems, and produces a continuous tone with a loud, clear sound suitable for industrial and consumer applications.
MULTICOMP-PRO MCKPIG1410B Piezo Buzzer Specifications:
- Maximum Input Voltage: 1.5V DC to 16V DC
- Operating Temperature Range: -20°C to +80°C
- Sound Pressure Level: 85dB at 12VDC/10CM
- Resonant Frequency: 4.3 kHz ±0.5
- Max Rated Current: 8mA at 12V DC
- Dimensions: Diameter 14mm, Height 8.3mm
- Material: PBT/Black
- RoHS: Compliant
- Tone Nature: Continuous

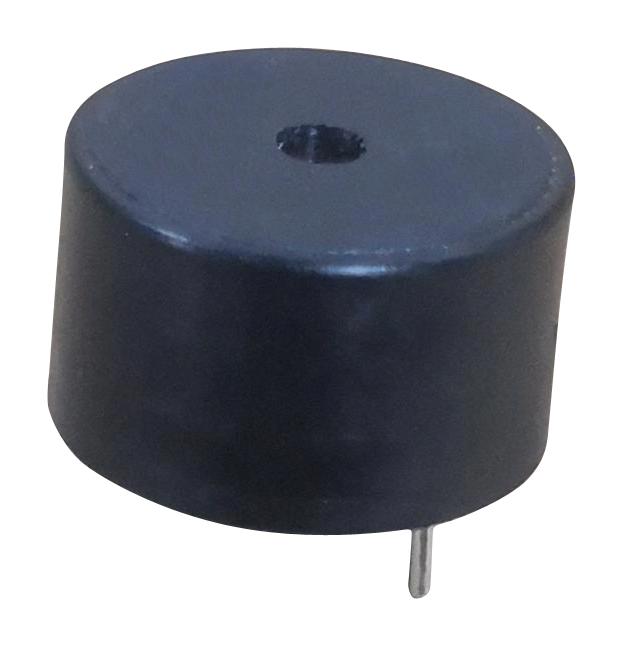

Buy the Buy multicomp Piezo Buzzer Part Number MCKPI-G1410B Online
Order the multicomp Piezo Buzzer MCKPI-G1410B online now and ensure your electronic projects or alarm systems benefit from high sound pressure and durability. This 12V device delivers an 85dB sound level at 10cm, with a resonant frequency of 4.3 kHz for clear, continuous tone alerts. Its compact size of 14mm diameter and 8.3mm height makes it ideal for space-constrained applications. Made from sturdy PBT material, it is RoHS compliant and designed for long-term operation in temperatures ranging from -20°C to +80°C. Purchase online today for fast shipping and reliable performance.
Get multicomp Piezo Buzzer MCKPI-G1410B today—built for reliable alert signaling and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKPIG1410B?
You can click on the BUY or RFQ button to purchase MCKPIG1410B from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPIG1410B?
You can download the MCKPIG1410B datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKPIG1410B?
MULTICOMP-PRO
