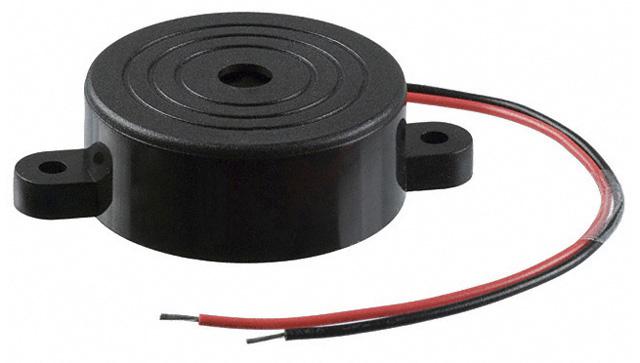

MULTICOMP PRO MCKPIG2313L3967 Piezo Buzzer
The piezo buzzer offers an efficient sound signaling solution with a resonant frequency of approximately 3.3 ±0.5kHz and a sound pressure level of 88dB at 12V DC, ensuring clear audible alerts. Constructed with durable ABS case material, it operates within a temperature range of -30°C to +70°C, making it suitable for various industrial environments. The buzzer draws a maximum current of 15mA at 12V DC and is RoHS compliant. Compact and lightweight at 18g, it is ideal for applications requiring reliable, continuous sound output with a rated voltage of 12V DC and an operating voltage of 8-15V DC.
MULTICOMP PRO MCKPIG2313L3967 Piezo Buzzer Specifications:
- Rated Voltage: 12V DC
- Operating Voltage: 8V DC to 15V DC
- Max. Rated Current: 15mA at 12V DC
- Resonant Frequency: 3.3 ±0.5kHz
- Min. Sound Pressure Level: 88dB at 12V DC / 30cm
- Tone Nature: Continuous
- Case Material: ABS
- Operating Temperature: -30°C to +70°C
- Store Temperature: -30°C to +70°C
- Weight: 18g
Buy the Multicomp Ro – Reliable Piezo Buzzer for Industrial Applications
Order the Multicomp Pro piezo buzzer now for reliable sound signaling in industrial environments. With a resonant frequency of approximately 3.3kHz and an 88dB sound level at 12V, this durable ABS-encased device operates between 8V and 15V DC, drawing only 15mA at 12V. Its compact, lightweight design of 18g makes it suitable for various applications, ensuring clear alerts and long-lasting performance. Purchase online today to enhance your signaling systems with a trusted, RoHS-compliant product.
Get Multicomp Pro piezo buzzer today—built for durability with a clear 88dB sound output at 12V DC.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKPIG2313L3967?
You can click on the BUY or RFQ button to purchase MCKPIG2313L3967 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPIG2313L3967?
You can download the MCKPIG2313L3967 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKPIG2313L3967?
MULTICOMP PRO
