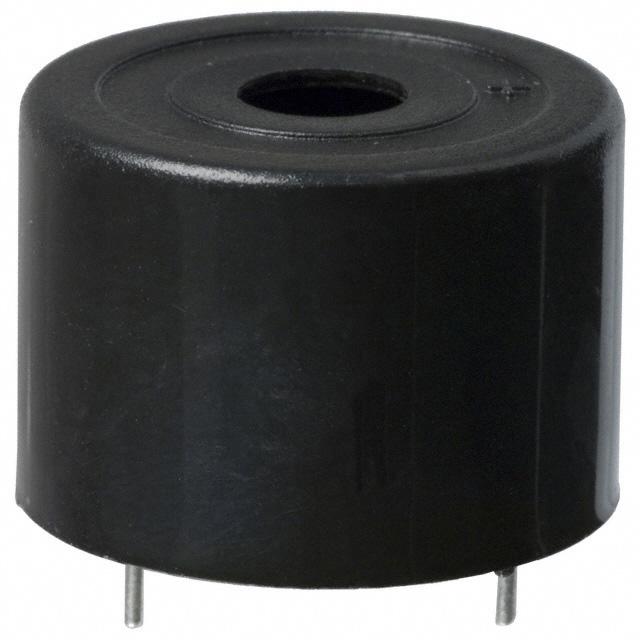

MULTICOMP-PRO MCKPMG1606A3708 Magnetic Transducer Buzzer
The MCKPM-G1606A-3708 is a magnetic transducer and buzzer housed in a black molded plastic shell. It operates at a rated voltage of 6V. The coil resistance is approximately 50 ohms with a coil impedance of 110 ohms. The device is suitable for use in temperature ranges from -40°C to 85°C. It is used in sensing, instrumentation, and audio applications. High market demand may cause extended lead times, and delivery dates are subject to fluctuation. Comes with a 12-month warranty, making it reliable for various electronic projects.
MULTICOMP-PRO MCKPMG1606A3708 Magnetic Transducer Buzzer Specifications:
- Rated Voltage: 6V
- Operating Voltage: 3V to 12V
- Max. Rated Current: 50mA
- Coil Resistance: 50Ω
- Coil Impedance: 110Ω
- Sound Pressure Level: Min. 90dB / 10cm
- Resonant Frequency: 12,048 Hz
- Shell Material: MPPO
- Color: Black
- Operating and Storage Temperature: -40°C to +85°C
- Weight: 18g
Buy the Multicomp Series Magnetic Transducer Buzzer: MCKPM-G1606A-3708
Purchase the Multicomp Magnetic Transducer and Buzzer MCKPM-G1606A-3708 online today for your sensing, instrumentation, and audio needs. This robust device features a 6V rated voltage, a black molded shell, 50Ω coil resistance, and operates within a temperature range of -40°C to 85°C. Its high sound pressure level of at least 90dB / 10cm ensures clear sound output. Ideal for various electronic projects, it offers dependable performance and comes with a 12-month warranty. Order now for fast, reliable delivery.
Get Multicomp Magnetic Transducer and Buzzer MCKPM-G1606A-3708 today—designed for reliable sensing and audio applications with excellent durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKPMG1606A3708?
You can click on the BUY or RFQ button to purchase MCKPMG1606A3708 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPMG1606A3708?
You can download the MCKPMG1606A3708 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKPMG1606A3708?
MULTICOMP-PRO
