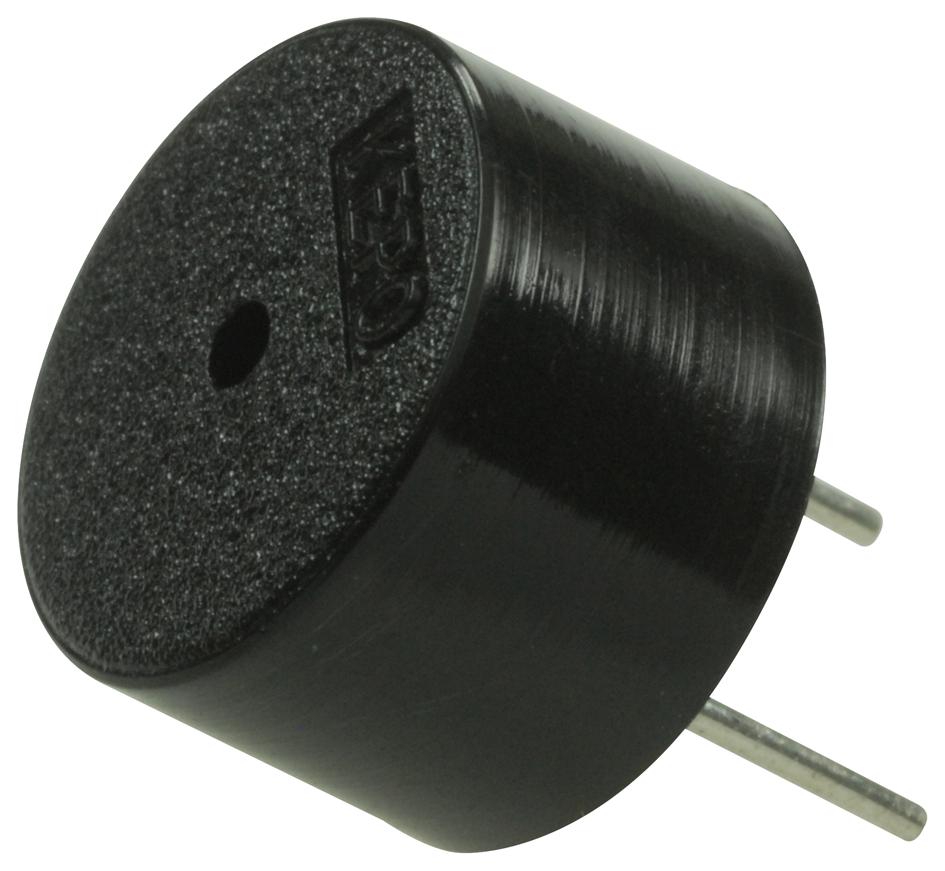

MULTICOMP PRO MCKPTG12103916 Piezo Buzzer
The MCKPT-G1210-3916 is a high-quality, black piezo buzzer designed for audio signaling applications. It features a resonant frequency of 4.5 kHz, delivering a sound pressure level of 80 dB at 10 cm. Operating at a rated voltage of 12 Vp-p square wave, it consumes less than 2mA current and includes a 750 pF capacitance at 100Hz. Encased in a durable PC shell, it performs reliably within temperatures from -20°C to +80°C and -30°C to +100°C storage. Ideal for electronic alarms, alert systems, and industrial signaling, this compact buzzer ensures clear sound output and long-lasting operation.
MULTICOMP PRO MCKPTG12103916 Piezo Buzzer Specifications:
- Rated Voltage: 12Vp-p square wave
- Operating Voltage: 3 to 30Vp-p square wave
- Max. Rated Current: < 2mA
- Min. Sound Pressure Level: 80dB at 10cm, 4.5kHz
- Capacitance at 100Hz: 750 pF
- Resonant Frequency: 4.5 kHz
- Shell Material / Colour: PC / Black
- Operating Temperature: -20°C to +80°C
- Store Temperature: -30°C to +100°C
- Weight: 21.59 grams
Buy the Buy Multicomp Piezo Buzzer Part Number MCKPTG12103916 Online
Enhance your electronic projects with the reliable Multicomp Piezo Buzzer. Featuring an 80dB sound level at 4.5kHz, it operates efficiently at 12V, consuming less than 2mA current. Its durable PC shell ensures longevity, and it performs across temperatures from -20°C to 80°C, with storage up to -30°C to 100°C. Ideal for alarms, alert systems, and industrial signaling, this compact, high-performance buzzer provides clear sound output and easy integration for various applications.
Order your Multicomp SeriesMCKPT-G1210-3916 piezo buzzer today and enjoy reliable sound signaling for your electronic projects and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKPTG12103916?
You can click on the BUY or RFQ button to purchase MCKPTG12103916 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPTG12103916?
You can download the MCKPTG12103916 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKPTG12103916?
MULTICOMP PRO
