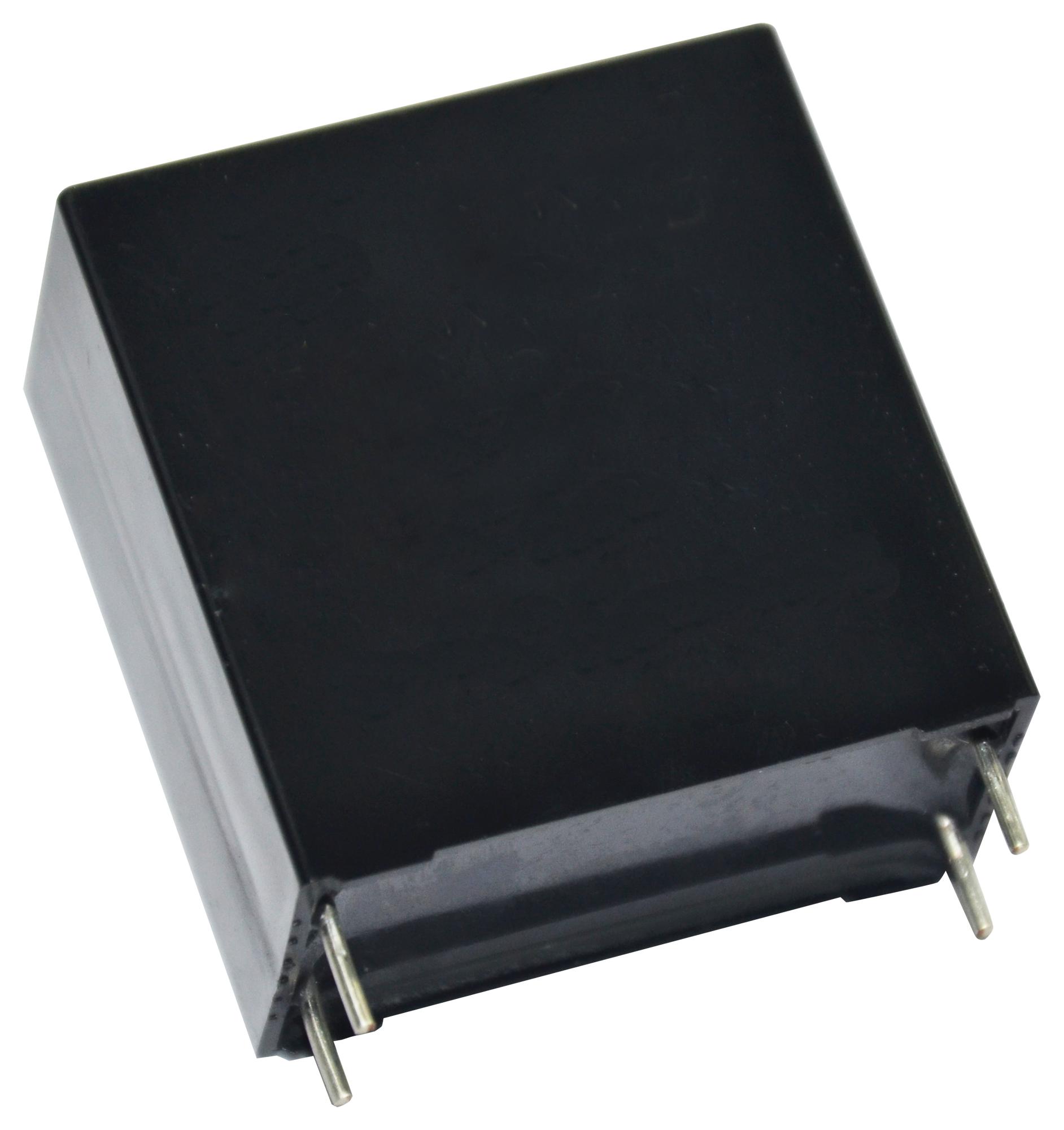

MULTICOMP PRO MPDPB800A50K4Y050 DC-Link Film Capacitor
The DC-Link Film Capacitor from the MPDPB series features metallized polypropylene film construction, ideal for high-performance DC filtering applications such as frequency converters, industrial power supplies, and solar inverters. It operates at temperatures from -40°C to +105°C, with rated voltages up to 1100V DC and capacitance values between 8uF and 80uF. Its robust plastic case (UL94 V-0) filled with resin ensures durability and reliability for demanding industrial environments, with an expected lifetime of 100,000 hours at rated voltage and temperature.
MULTICOMP PRO MPDPB800A50K4Y050 DC-Link Film Capacitor Specifications:
- Construction: Metallized polypropylene film
- Temperature Range: -40°C to +105°C
- Rated Voltage: Up to 1100V DC
- Capacitance Range: 8uF to 80uF
- Capacitance Tolerance: ±10% (K)
- Insulation Resistance: 210000s at 20°C, 100V DC for 1 min
- Self-Inductance: <1nH per mm of lead spacing
- Peak Current: 1=C.dV/dt
- Expected Lifetime: 100,000 hours at +70°C
- Climatic Category: 40/105/56
- Rated Temperature: +85°C
Buy the Multicomp Series DC-Link Film Capacitor: MPDPB800A50K4Y050
Enhance your power system with the reliable DC-Link Film Capacitor from the MPDPB series. Designed for high-performance DC filtering, this capacitor operates at voltages up to 1100V DC with capacitance options from 8uF to 80uF, ensuring optimal energy management. Its robust construction and long lifespan of 100,000 hours at +70°C make it ideal for industrial applications such as frequency converters, solar inverters, and high-end power supplies. Easy to integrate, this durable capacitor ensures stable performance and energy efficiency in demanding environments.
Get Multicomp Series MPDPB800A50K4Y050 today—built for precision, durability, and industrial-grade filtering in your power applications.
