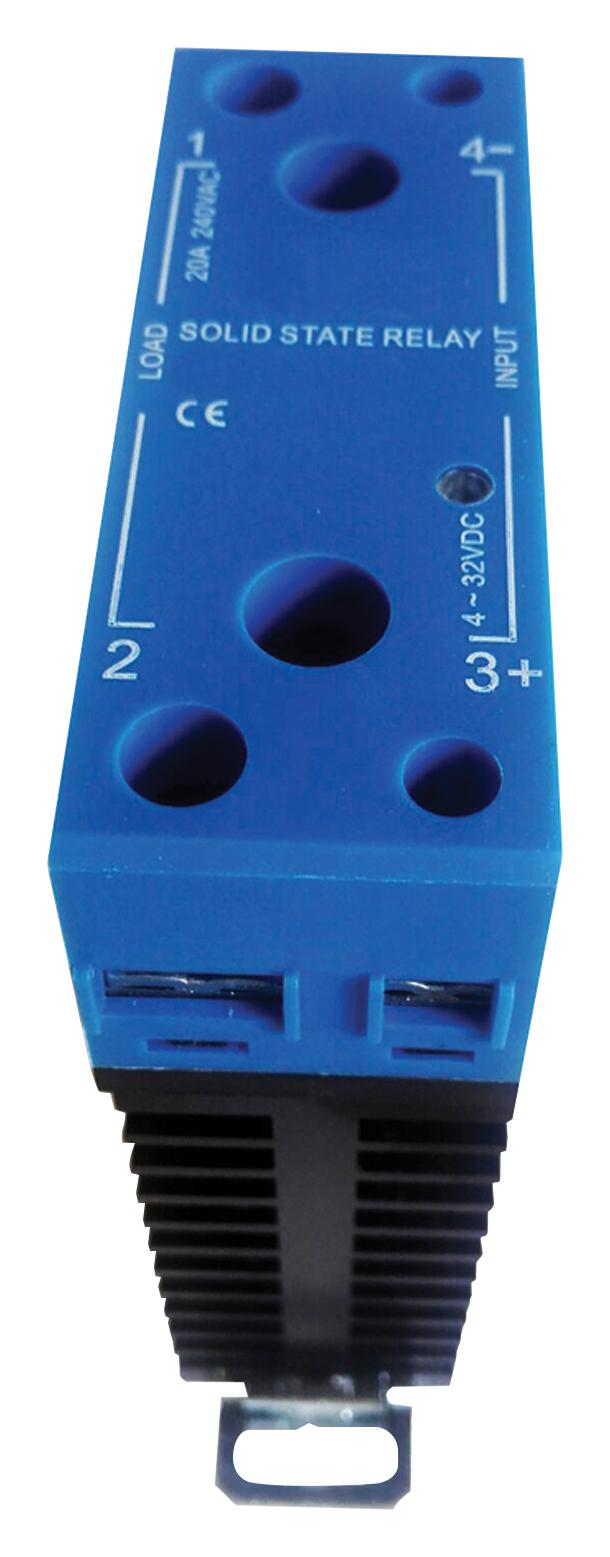

MULTICOMP-PRO MCKSV240D20LM Industrial Solid State Relay
This industrial solid state relay features an integrated heatsink, suitable for DIN rail or panel mounting with a load capacity from 10A to 40A at voltages 24-280VAC. Equipped with zero-cross switching, MOV protection, LED indicator, and built-in RC snubber, it ensures reliable operation in high-temperature chambers, machinery, lighting, and more. The relay supports control voltages 4-32V DC, with a dielectric strength of 4000VAC. Compact dimensions vary by model, with robust surge handling and a maximum load voltage range of 124 to 280VAC, making it ideal for industrial automation and control applications.
MULTICOMP-PRO MCKSV240D20LM Industrial Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Load Voltage Range: 124V to 280V AC
- Load Current: 10A, 20A, 30A, 40A
- Surge Current: Up to 520A @10ms
- Dielectric Strength: 4000VAC rms
- Dimensions: 100mm x 30mm x 112mm (10A-30A); 122mm x 50mm x 110mm (40A)
- Thermal Resistance: varies with model and mounting conditions
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 355g (10A/20A/30A), 540g (40A)
Buy the Multicomp Reliable Solid State Relay for Industrial Applications
Discover the powerful and reliable industrial solid state relay from Multicomp Pro, capable of handling up to 40A load current with integrated heatsink and protective features. Designed for DIN rail or panel mounting, it ensures efficient performance in demanding environments such as high-temperature chambers, machinery, and lighting systems. With zero-cross switching, MOV protection, LED indicator, and a robust dielectric strength, this relay provides seamless control and outstanding durability. Purchase online today to enhance your automation system with a trusted industry-leading component.
Buy Multicomp Pro solid state relay now and experience unmatched reliability, fast switching, and robust protection for industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKSV240D20LM?
You can click on the BUY or RFQ button to purchase MCKSV240D20LM from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKSV240D20LM?
You can download the MCKSV240D20LM datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKSV240D20LM?
MULTICOMP-PRO
