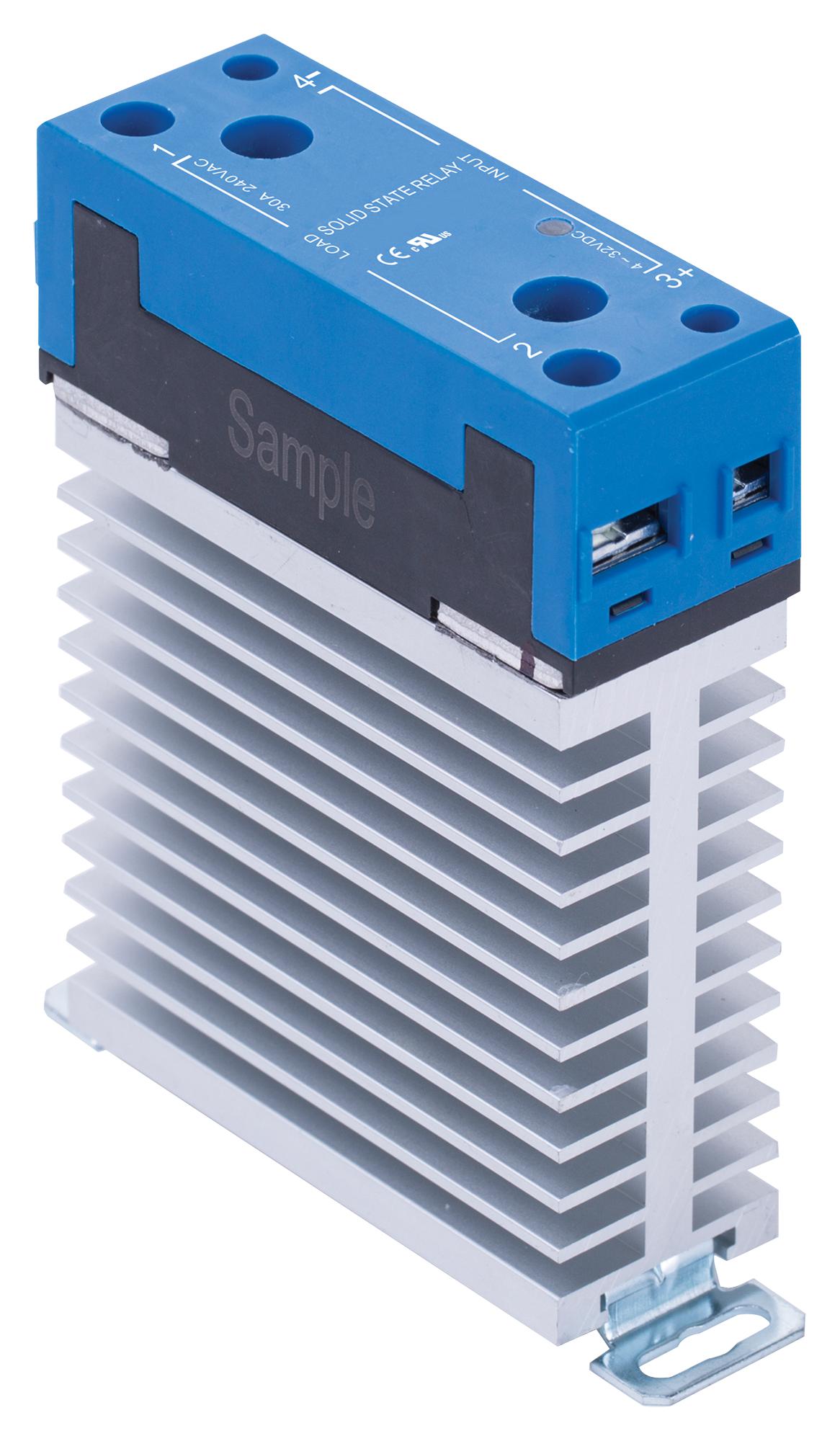

MULTICOMP-PRO MCKSV240D30LM Industrial Solid State Relay
This industrial solid state relay features an integrated heatsink and supports multiple load currents up to 40A, with a load voltage range of 124 to 280VAC. It has zero crossing switching, MOV protection circuit, LED indication, and built-in RC snubber circuit. Suitable for controlling high-power loads in applications such as high-temperature chambers, machinery, lighting, and elevator systems, it is mounted on a 35mm DIN rail or panel. It ensures reliable switching, excellent dielectric strength, and is RoHS compliant, offering robust performance for demanding industrial environments.
MULTICOMP-PRO MCKSV240D30LM Industrial Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Load Voltage Range: 124 to 280VAC
- Load Current: 10A, 20A, 30A, 40A
- Max Surge Current: 200A to 520A (10ms)
- Dielectric Strength: 4000VAC rms
- Temperature Range: -30°C to +80°C
- Dimensions: 100mm x 30mm x 112mm (10A-30A) or 122mm x 50mm x 110mm (40A)
- Weight: 355g (10A-30A), 540g (40A)
- Features include zero crossing switching, MOV protection circuit, LED indicator, built-in RC snubber circuit
- Mounting: DIN rail or panel mounting
Buy the Buy Multicomp Industrial Solid State Relay Part Number MCKSV240D30LM Online
Order the Multicomp industrial solid state relay MCKSV240D30LM online now. With current ratings up to 40A, zero crossing switching, integrated heatsink, and robust protection circuits, it ensures dependable operation for demanding automation and control applications. Suitable for high-power loads in machinery, lighting, and elevator systems, it is easy to install on DIN rails or panels. Improve your system's reliability and efficiency by purchasing this high-quality relay directly from authorized distributors today.
Get Multicomp industrial solid state relay MCKSV240D30LM today—designed for reliable high-current control with integrated heatsink and safety features.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKSV240D30LM?
You can click on the BUY or RFQ button to purchase MCKSV240D30LM from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKSV240D30LM?
You can download the MCKSV240D30LM datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKSV240D30LM?
MULTICOMP-PRO
