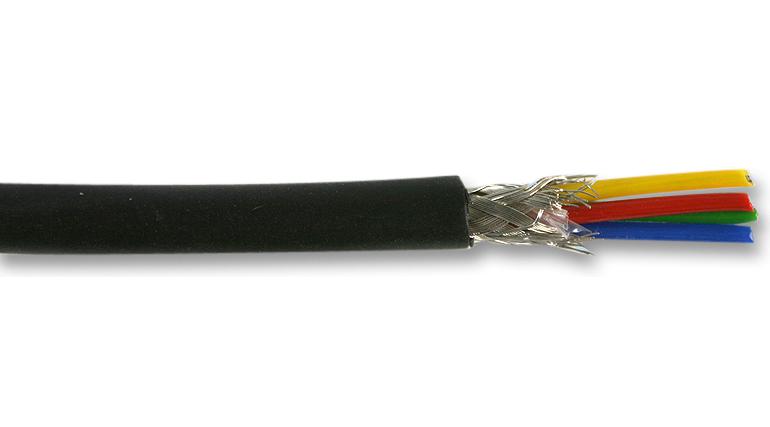

MULTICOMP PRO PP000353 Screened Multicore Cable
This screened multicore cable is designed to meet Defence Standard 61-12 Part 5, suitable for high-density wiring within electronic equipment and instruments. It features electrolytic annealed tinned copper conductors, PVC insulation, and a braid screen for effective electromagnetic interference shielding. With a black or grey PVC outer jacket rated for temperatures from 10°C to +70°C, it ensures reliable performance up to 440V AC. Its construction includes color-coded cores, a minimum bending radius of 6 times the cable diameter, and a test voltage of 2000V.
MULTICOMP PRO PP000353 Screened Multicore Cable Specifications:
- Conductor Material: Electrolytic annealed tinned copper
- Conductor Size: 16/0.2mm (0.5mm diameter) per core
- Core Resistance: 40.10/km at 20°C
- Core Insulation: PVC to BS676, radial thickness 0.45mm
- Insulation Resistance: Min. 200MO/km
- Outer Sheath: Black or grey PVC to BS6746 Type 6
- Braid Screen: 0.2mm, fill factor 70%
- Operating Temperature Range: 10°C to +70°C
- Nominal Voltage: 440V AC rms at 1600Hz
- Minimum Bending Radius: 6 x cable diameter
- Test Voltage (core to core): 2000V
- Jacket Diameter: 47mm (for 4 cores, over cores), 54mm (for 4 cores, over screen), varies with number of cores
- Reel Length: 25 meters per reel
- Color Coding: As per DEF. STAN. 61-12 Part 4
Buy the Premier Series Multicore Cable: PP000353
Order the Premier Series screened multicore cable online today and experience dependable high-density wiring solutions. With robust tinned copper conductors, PVC insulation, and effective braid shielding, it ensures optimal electromagnetic interference protection and flexible installation. Suitable for electronic instrument wiring, it offers a temperature range from 10°C to +70°C, and a voltage rating of 440V AC. This cable features color-coded cores, a minimum bending radius of 6x diameter, and comes in 25-meter reels for convenience. Perfect for demanding electronic applications, buy now for quick delivery and peace of mind.
Get Premier Series PP000353 today—designed for high-density electronic wiring with reliable EMI shielding and temperature resistance.
