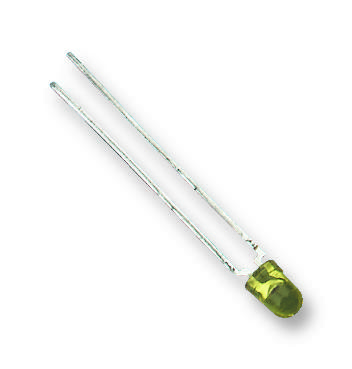

MULTICOMP PRO MCL034LYD Yellow LED
This yellow 3mm round LED from Multicomp Pro features GaAsP on GaP dice material, providing a peak wavelength of 587nm and a viewing angle of 176°. It operates within -40°C to +85°C temperature range, with a forward voltage of approximately 1.85V at 20mA. Designed for reliable electrical and optical performance, it is RoHS compliant, suitable for various indicator applications, and can be soldered at 260°C for 5 seconds. Its luminous intensity reaches up to 3.5 millicandelas, making it a dependable choice for LED displays and signaling devices.
MULTICOMP PRO MCL034LYD Yellow LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow
- Lens Colour: Yellow Diffused
- Peak Wavelength: 587nm
- Viewing Angle: 176°
- Luminous Intensity: 3.5mcd (typical)
- Forward Voltage: 1.85V at 20mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Peak Forward Current: 100mA (pulsed)
- Reverse Voltage: 5V
- Reverse Current: 10μA
- RoHS Compliant: Yes
Buy the Multicomp Series Yellow LED: MCL034LYD
Purchase the yellow 3mm round LED from Multicomp Pro online to ensure quick delivery, reliable performance, and competitive pricing. Perfect for indicator lights, signaling devices, and electronic displays, this LED offers a peak wavelength of 587nm, a wide viewing angle of 176°, and luminous intensity of 3.5mcd for clear visibility. Its robust construction supports operation in temperatures from -40°C to +85°C, with a maximum soldering temperature of 260°C. Trust this RoHS-compliant LED to enhance your electrical and electronic projects efficiently and reliably.
Buy Multicomp Series Yellow LED MCL034LYD now and experience unmatched reliability and performance in your electronic indicator projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034LYD?
You can click on the BUY or RFQ button to purchase MCL034LYD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034LYD?
You can download the MCL034LYD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034LYD?
MULTICOMP PRO
