MULTICOMP PRO 2CT3032W08300 Industrial female connector

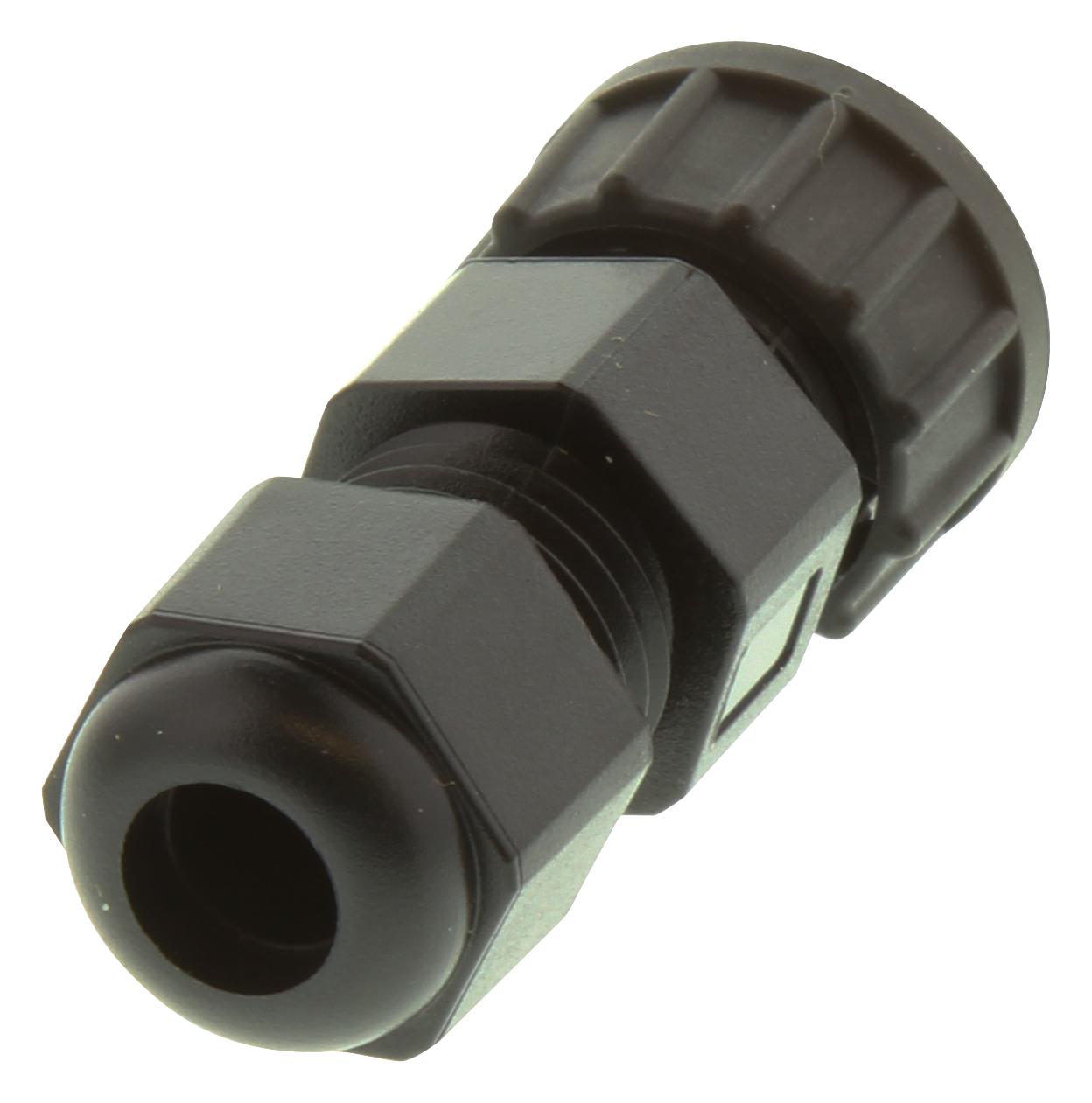

The 2CT3032-W08300 from Multicomp is an 8-way, 5A field-wiring female connector with solder pin termination. It features an IP67-rated circular in-line design with a lock-type mating style. The connector body is made from nylon reinforced with glass fiber and polybutylene terephthalate. It offers a contact resistance of 30 milliohms or less, an insulation resistance of at least 100 megaohms at 500V DC, and durability for up to 500 mating cycles. Operating within a temperature range of -40°C to +100°C, it uses copper alloy pin contacts with gold plating to ensure reliable connectivity. The connector withstands a 48-hour salt spray corrosion test and is suitable for wire gauges from 22AWG to 24AWG, with cable outer dimensions between 4mm and 6.5mm. Multicomp products are rated 4.6 out of 5 stars, with a 12-month limited warranty. This product is ideal for industrial applications. Note: Due to high market demand, lead times may be extended and delivery dates can fluctuate. The product is not eligible for discounts.
MULTICOMP PRO 2CT3032W08300 Industrial female connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30mΩ (without cable)
- Insulation Resistance: 100MΩ at 500V DC
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 30 minutes)
Buy the Buy multicomp IP67 Female Connector Part Number 2CT3032-W08300 Online
Order the multicomp 2CT3032-W08300 online today to ensure secure, durable, and waterproof connections for your industrial wiring needs. With high resistance to corrosion and a robust design rated IP67, it guarantees reliable performance in harsh environments. Suitable for various wire gauges from 22AWG to 24AWG with a cable outer dimension between 4mm and 6.5mm, this connector is ideal for professional applications. Enjoy fast delivery, easy ordering, and quality assured for all your electrical connection requirements.
Buy multicomp 2CT3032-W08300 now and experience unmatched reliability and performance in industrial wiring and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3032W08300?
You can click on the BUY or RFQ button to purchase 2CT3032W08300 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3032W08300?
You can download the 2CT3032W08300 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3032W08300?
MULTICOMP PRO
