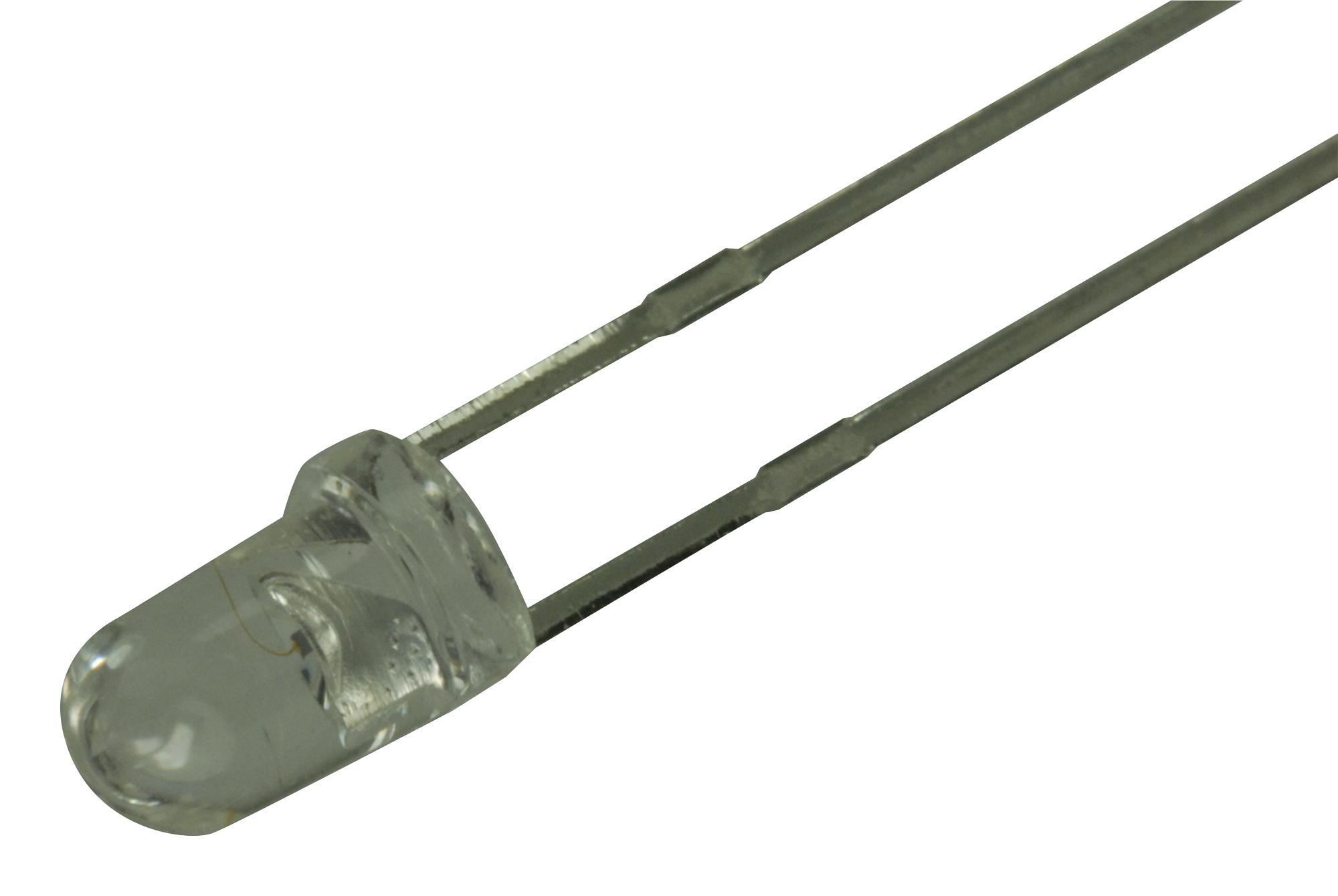

MULTICOMP PRO MCL034SBC Super Amber LED
The MCL034SBC is a high-quality, through-hole LED designed for industrial applications, featuring a super amber color with a water-clear lens. It uses AllnGaP die technology, emits at a wavelength of 610nm, and offers a viewing angle of 36°, making it suitable for various indicator and illumination purposes. Operating efficiently within a temperature range of -40°C to 85°C, it has a maximum reverse voltage of 5V, reverse current of 10μA, and forward voltage typically between 1.7V and 2.6V at 20mA. This reliable LED ensures long-lasting performance in demanding environments, supported by robust electrical and optical characteristics.
MULTICOMP PRO MCL034SBC Super Amber LED Specifications:
- Dice Material: AllnGaP
- Emitted Colour: Super Amber
- Lens Colour: Water Clear
- Peak Wavelength: 610nm
- Viewing Angle: 36°
- Luminous Intensity: 1,600 med (at 20mA)
- Reverse Voltage: 5V
- Reverse Current: 10μA at VR = 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 2.4mm from body
- Forward Voltage: 1.7V - 2.6V (at 20mA)
- Power Dissipation: up to 85mW
- Peak Forward Current: 100mA (duty cycle 1/10, 1kHz)
- Recommended Operating Current: 20mA
- Dimensions: 3mm diameter, 36° viewing angle
- Certifications: RoHS Compliant
Buy the Multicomp Super Amber 3mm – Reliable Indicator LED for Industrial Applications
Enhance your industrial indicator and illumination systems with the reliable Super Amber LED. Featuring a water-clear lens and AllnGaP die, it offers excellent brightness at 610nm with a 36° viewing angle. Operating efficiently from -40°C to 85°C, this 3mm LED provides outstanding durability and performance for demanding environments. Whether for indicator lights, status displays, or control panels, this high-quality LED ensures long-lasting, efficient operation. Order online today and benefit from fast delivery and competitive pricing.
Buy Multicomp Super Amber 3mm LED now and experience unmatched reliability and performance in industrial indicator solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034SBC?
You can click on the BUY or RFQ button to purchase MCL034SBC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034SBC?
You can download the MCL034SBC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034SBC?
MULTICOMP PRO
