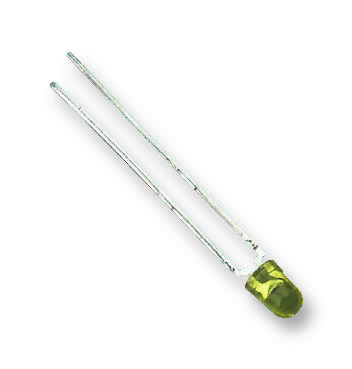

MULTICOMP PRO MCL034SYC Yellow LED
The MCL034SYC is a high-quality 3mm Yellow LED with a water-clear lens, optimized for industrial applications. Constructed with AllnGaP die, it emits super yellow light at 590nm with a viewing angle of 36°. It operates safely within a temperature range of -40°C to 85°C, with a maximum reverse voltage of 5V. Suitable for various electronic and lighting projects, this LED offers a luminous intensity of up to 2,350 mcd at 20mA. Its robust construction ensures long-lasting performance in demanding environments, making it ideal for indicator lights and display systems.
MULTICOMP PRO MCL034SYC Yellow LED Specifications:
- Lens color: Water Clear
- Dice material: AllnGaP
- Emitted color: Super Yellow
- Peak wavelength: 590nm
- Viewing angle: 36°
- Luminous intensity: 750 to 2,350 mcd at IF=20mA
- Forward voltage: 1.7V to 2.6V at IF=20mA
- Reverse voltage: 5V
- Reverse current: 10µA at VR=5V
- Operating temperature range: -40°C to 85°C
- Storage temperature range: -40°C to 100°C
- Lead soldering: 260°C for 5 seconds at 2-4.6mm from body
Buy the Farnell MCL034SYC – Reliable Yellow LED for Industrial Applications
Purchase the Yellow LED now from our online store to ensure quick delivery and reliable performance. Designed with AllnGaP technology, this 3mm LED offers a super yellow emission at 590nm with a wide viewing angle of 36°. It is ideal for industrial, electronic, and lighting applications, providing luminous intensity up to 2,350 mcd at 20mA. With a robust construction and operating temperature range from -40°C to 85°C, this LED guarantees long-term durability in demanding environments. Order now for prompt processing and fast shipping.
Get Farnell MCL034SYC today—built for precision and long-lasting durability in industrial lighting and indicator systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034SYC?
You can click on the BUY or RFQ button to purchase MCL034SYC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034SYC?
You can download the MCL034SYC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034SYC?
MULTICOMP PRO
