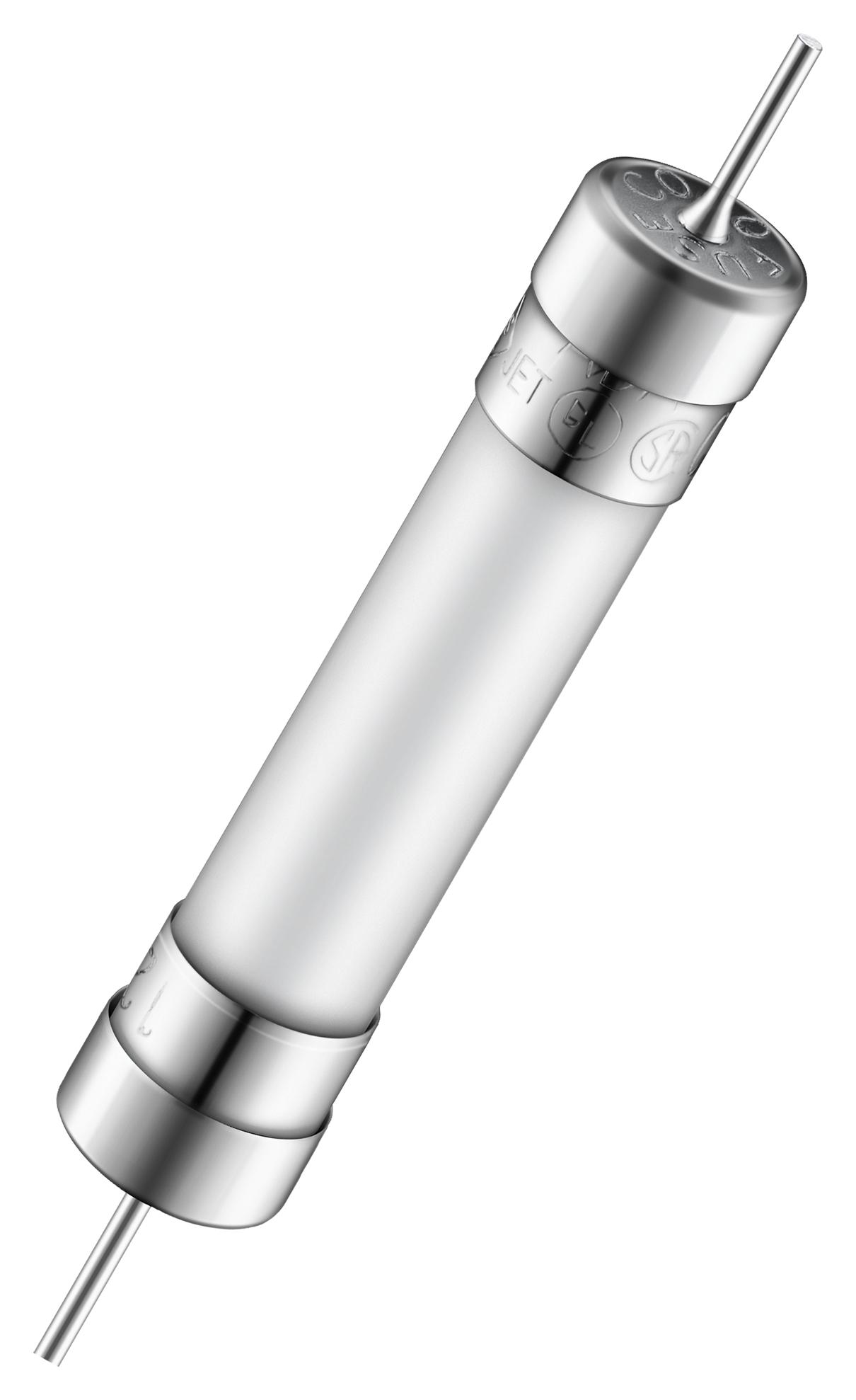

MULTICOMP PRO MP004330 Ceramic Cartridge Fuse
The Time-Lag Ceramic Cartridge Fuse is an axial leaded fuse measuring 6.3mm by 32mm, designed for circuit protection in electrical systems. It features a ceramic body with nickel-plated brass caps and different lead wire thicknesses based on current ratings, ensuring reliable performance at temperatures from -55°C to 125°C. Suitable for a range of amperages from 800mA to 30A, this fuse offers high interrupting ratings up to 10,000 amperes at 125V AC, complying with UL, CSA, and PSE safety standards. Ideal for electronics, industrial equipment, and electrical appliances needing precise overcurrent protection, the fuse's robust construction ensures durability and consistent operation in demanding environments.
MULTICOMP PRO MP004330 Ceramic Cartridge Fuse Specifications:
- Dimensions: 6.3mm diameter x 32mm length
- Body Material: Ceramic
- Caps Material: Nickel-plated brass
- Lead Wire Diameter: 0.8 mm for 12A and below, 1.0 mm for 13A to 19A, 1.2 mm for above 20A
- Operating Temperature: -55°C to 125°C
- Interrupting Rating: Up to 10,000 amperes at 125V AC
- Rating Range: 800mA to 30A
- Standards: UL Listed, CSA Certified, PSE approved
- Rated Voltage: 125V AC / 250V AC
- Rated Current: 0.8A to 30A
- Part Numbers: MP004317 to MP004338
- Dimensions of Cap: 6.35mm diameter, height 6.45mm
- Ceramic Diameter: 5.72mm +0.2mm
- Lead Length: 38mm +2mm
Buy the Buy Multicomp Time-Lag Ceramic Cartridge Fuse Part Number MP004330 Online
Purchase the Multicomp Time-Lag Ceramic Cartridge Fuse MP004330 online for reliable circuit protection across a wide current range from 800mA up to 30A. Featuring high interrupting ratings up to 10,000 amperes and UL, CSA, and PSE safety approvals, this fuse is ideal for industrial, electronic, and electrical applications. Its ceramic body with brass caps ensures durability in harsh environments, while its precise specifications make it perfect for safeguarding sensitive equipment. Buy now to ensure your electrical systems are protected with high-quality, compliant fuses that guarantee performance and safety.
Get Multicomp Time-Lag Ceramic Cartridge Fuse MP004330 today—built for precise circuit protection and long-lasting durability in electrical systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004330?
You can click on the BUY or RFQ button to purchase MP004330 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004330?
You can download the MP004330 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004330?
MULTICOMP PRO
