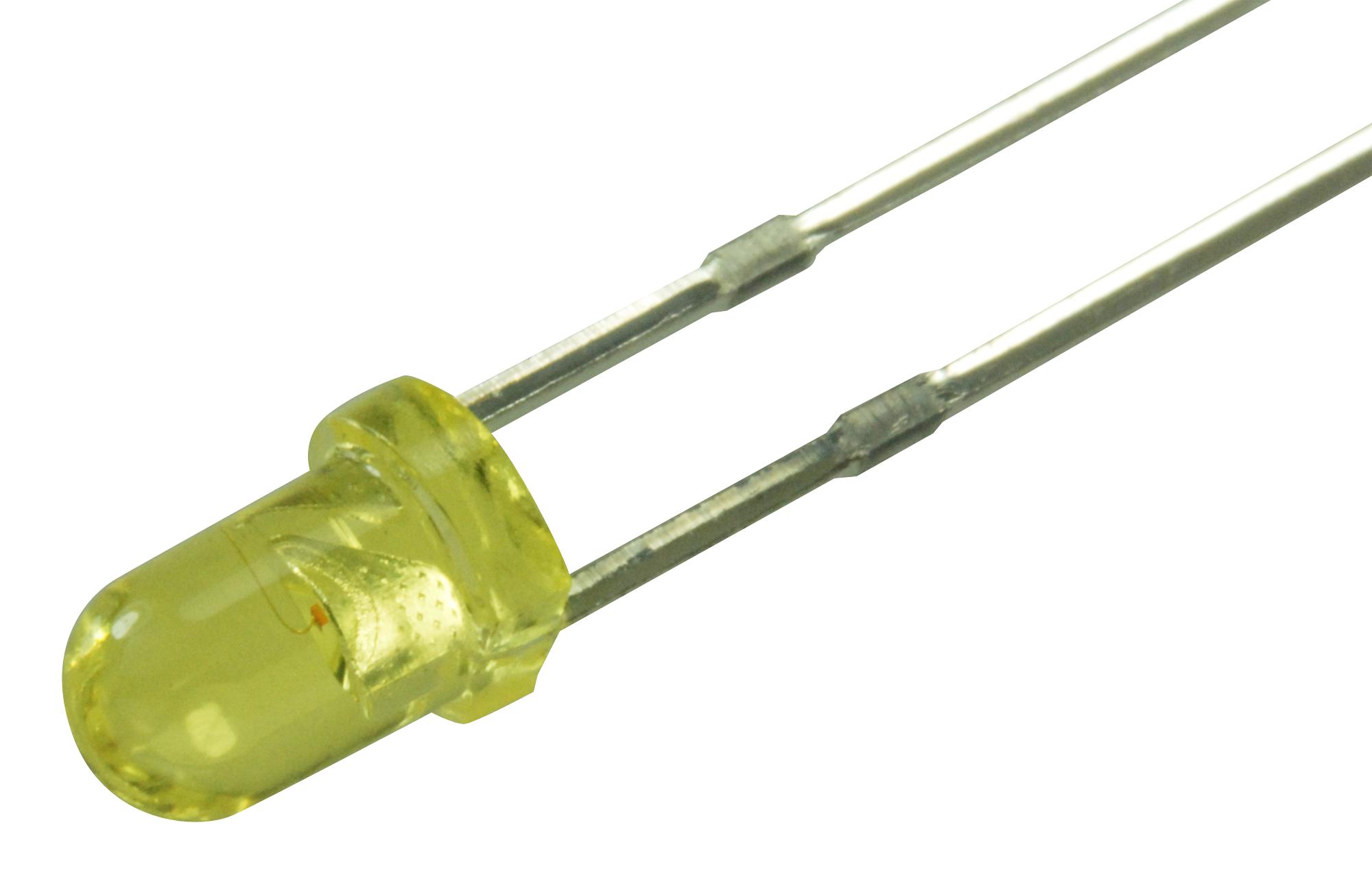

MULTICOMP PRO MCL034YT Yellow 3mm LED
The MCL034YT is a through-hole yellow LED featuring a transparent lens, constructed with GaAsP on GaP die. It has a reverse voltage rating of 5V and a reverse current of 10 µA at 5V. The device operates within a temperature range of -40°C to 85°C. This component is suitable for industrial applications. Please note that market demand may lead to extended lead times, and delivery dates could fluctuate. The product is not eligible for discounts. Multicomp Pro products have a rating of 4.6 out of 5 stars, and 96% of customers would recommend it to a friend.
MULTICOMP PRO MCL034YT Yellow 3mm LED Specifications:
- Diameter: 3 mm
- Color: Yellow
- Lens Color: Yellow Transparent
- Peak Wavelength: 587 nm
- Viewing Angle: 36°
- Luminous Intensity: 32 mcd (typical), 17–50 mcd (range at IF=20mA)
- Forward Voltage: 1.7V (typical), 2.6V (max) at 20mA
- Forward Current: Recommended 20mA, Peak 100mA at 1/10 duty cycle
- Reverse Voltage: 5V
- Reverse Current: 10 µA at 5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds, 4.6 mm from body
- Dimensions: Millimeters (Inches): Length varies, typical lens diameter 3 mm
- Material: GaAsP on GaP
- RoHS Compliant
Buy the Multicomp Series LED: Yellow 3mm: MCL034YT
Order the Multicomp Series Yellow 3mm LED MCL034YT online today and experience high-quality illumination for your projects. Designed with durable GaAsP on GaP die, it features a transparent yellow lens, a 36° viewing angle, and operates efficiently from -40°C to 85°C. With a luminous intensity of 32 mcd at 20mA and a forward voltage of 1.7V, it guarantees excellent performance. Easy to solder with a maximum temperature of 260°C for 5 seconds, this LED is ideal for industrial and electronic applications, ensuring reliable operation in various environments.
Get Multicomp Series Yellow 3mm LED MCL034YT today—built for precision and long-lasting durability.
