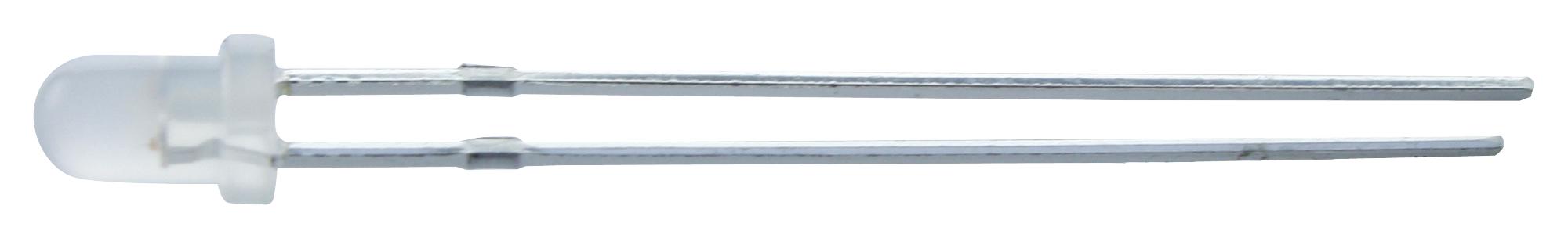

MULTICOMP-PRO MCL036YGW LED Indicator
This 3mm LED from the Multicomp Pro range offers bright yellow and green emission with a wide viewing angle of 76° and high luminous intensity, making it ideal for indicator and display applications. It features GaAsP on GaP die material, operates safely within -40°C to +85°C, and has RoHS compliance. With a peak wavelength of approximately 587/568nm and a typical forward voltage of 2.1V at 20mA, this LED ensures optimal electrical and optical performance for professional electronic projects and industrial equipment.
MULTICOMP-PRO MCL036YGW LED Indicator Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow / Green
- Lens Colour: White Diffused
- Peak Wavelength: approximately 587/568nm
- Viewing Angle: 76°
- Luminous Intensity: 11/10 med
- Reverse Voltage: 5V
- Reverse Current: 10uA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 2.4mm from body
- Forward Voltage (V): Typical 2.1V at 20mA
- Peak Forward Current: 100mA
- Recommended Operating Current: 20mA
Buy the Buy Multicomp LED Part Number MCL036YGW Online
Purchase the Multicomp LED indicator online today with confidence. Designed for professional electronic projects, this high-brightness yellow and green LED offers reliable performance, wide viewing angles, and RoHS compliance. Ideal for indicators, displays, and industrial equipment, it ensures consistent luminous intensity at 20mA, with a peak wavelength of roughly 587nm. Its robust design withstands operating temperatures from -40°C to +85°C, making it the perfect choice for demanding applications and long-term use in various environments.
Get Multicomp LED MCL036YGW today—built for bright illumination and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL036YGW?
You can click on the BUY or RFQ button to purchase MCL036YGW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL036YGW?
You can download the MCL036YGW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL036YGW?
MULTICOMP-PRO
