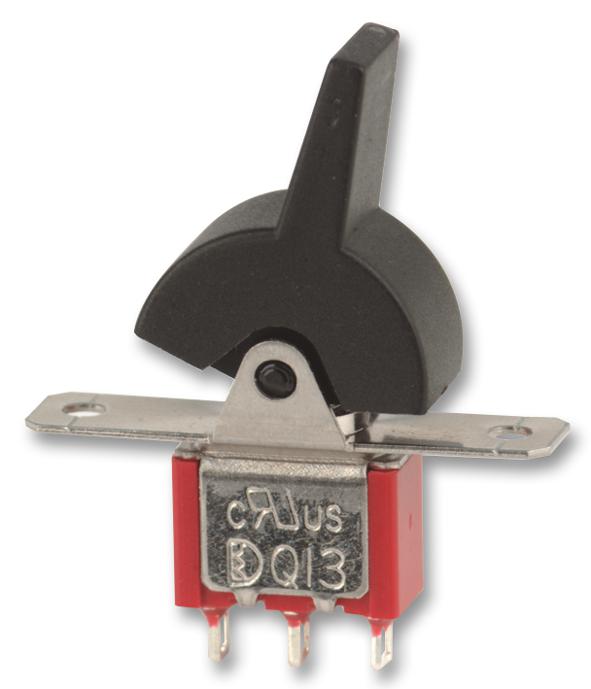

MULTICOMP-PRO 3MD1R2M1QE Toggle Switch
This SPDT toggle switch features reliable 2A contact rating at 250 V AC and a mechanical life span of 50,000 cycles, making it ideal for industrial and control applications. Constructed with durable nylon housing, brass contacts, and epoxy seals, it withstands temperatures from -30°C to 85°C. The switch offers various actuator options, including long rocker and lever styles, with solder lug terminations for secure wiring. Suitable for panel mounting, it ensures consistent performance with minimal contact resistance and robust insulation resistance, fulfilling common safety and quality standards.
MULTICOMP-PRO 3MD1R2M1QE Toggle Switch Specifications:
- Contact Rating: 2A at 250 V AC, resistive load
- Mechanical Life: 50,000 cycles
- Max. Contact Resistance: 10 mΩ initial at 2-4 V DC 100 mA for silver contacts
- Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Nylon housing, brass contacts, epoxy seal, stainless steel actuator
- Case Material: Nylon
- Actuator: Long rocker or lever options
- Bushing: Brass, nickel plated
- Housing: Nylon, black
- Switch Support: Brass, tin-plated
- Terminal: Solder lug
- Switch Function: SPDT (Single Pole Double Throw), DPDT options available
- RoHS Compliant
Buy the Buy Multicomp Series 3MS1R2M1QE SPDT Toggle Switch Part Number 3MD1R2M1QE Online
Purchase the highly reliable Multicomp Series SPDT toggle switch online today. Designed for industrial and control applications, it features a 2A contact rating at 250 V AC, with a lifespan of 50,000 cycles. Its durable nylon housing, brass contacts, and epoxy seals ensure consistent performance in temperatures from -30°C to 85°C. Available with long rocker or lever actuators and solder lug terminals, this switch guarantees secure wiring and excellent insulation resistance, making it perfect for automation and machinery control panels.
Order your Multicomp Series 3MS1R2M1QE SPDT toggle switch today and ensure reliable switching performance for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 3MD1R2M1QE?
You can click on the BUY or RFQ button to purchase 3MD1R2M1QE from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 3MD1R2M1QE?
You can download the 3MD1R2M1QE datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 3MD1R2M1QE?
MULTICOMP-PRO
