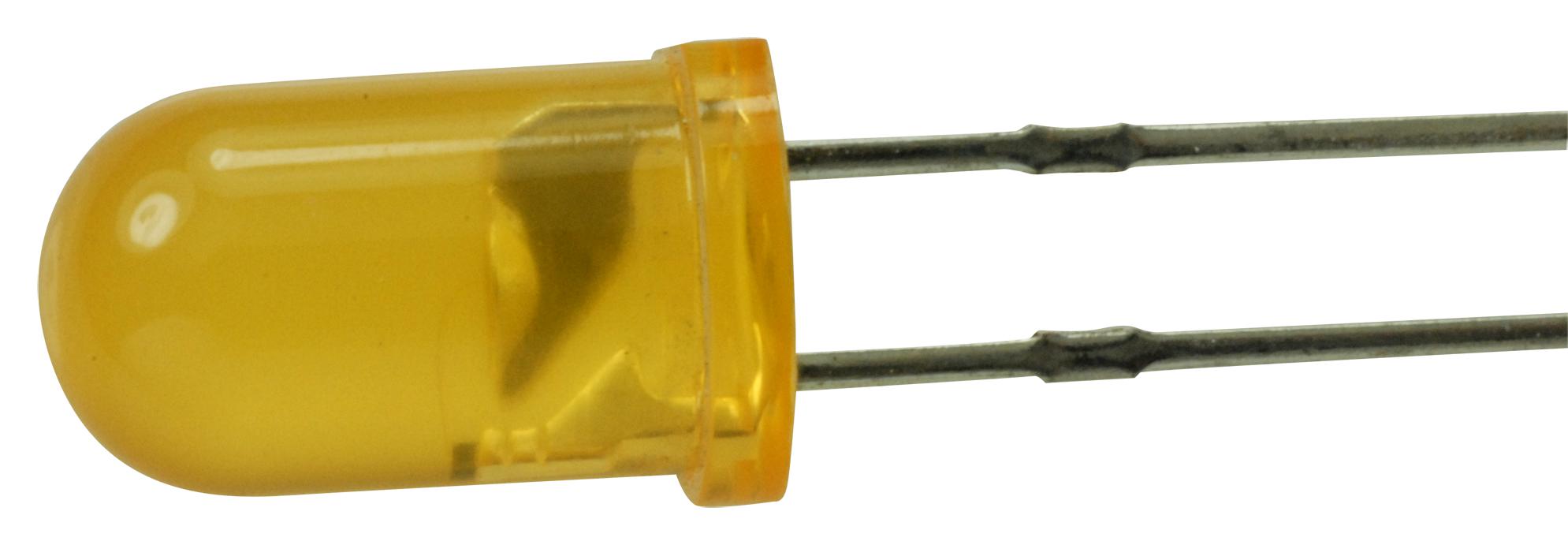

MULTICOMP PRO MCL053HAD12 Orange LED
This 5mm orange round LED from Multicomp Pro features GaAsP on GaP dice material, emitting at 635nm with an orange diffused lens. It has a luminous intensity of 16mcd at 20mA, a viewing angle of 245°, and operates within -40°C to +85°C. Suitable for various electronic projects, this LED ensures reliable performance, easy soldering, and RoHS compliance. Its compact size, low forward voltage of approximately 2V, and high durability make it ideal for indicator lights, illumination, and signage in industrial and consumer electronics.
MULTICOMP PRO MCL053HAD12 Orange LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Orange
- Lens Colour: Orange Diffused
- Peak Wavelength: 635nm
- Viewing Angle: 245°
- Luminous Intensity (IV): 16mcd at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10µA at 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 2.4mm from body
- Forward Voltage: approximately 2V at 20mA
- Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Rated Power Dissipation: up to 85mW
- Peak Wavelength: 635nm
- Spectral Line Half-Width: 45nm
- Certification: RoHS compliant
Buy the Multicomp Pro MCL053HAD12 – Reliable Orange LED for Industrial Applications
Purchase the Multicomp Pro orange 5mm LED online today and enjoy reliable performance in indicator lighting, displays, and electronic projects. Its proven durability, low forward voltage, and wide viewing angle ensure optimal visibility and energy efficiency. This RoHS compliant LED is easy to solder and suitable for high-volume manufacturing or DIY applications, providing consistent brightness at 635nm with a luminous intensity of 16mcd. Shop now for quick delivery and enhance your electronic designs with industry-grade lighting solutions designed for demanding environments.
Order your Multicomp Pro MCL053HAD12 orange 5mm LED today and enhance your electronic projects with dependable, high-performance illumination components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053HAD12?
You can click on the BUY or RFQ button to purchase MCL053HAD12 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053HAD12?
You can download the MCL053HAD12 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053HAD12?
MULTICOMP PRO
