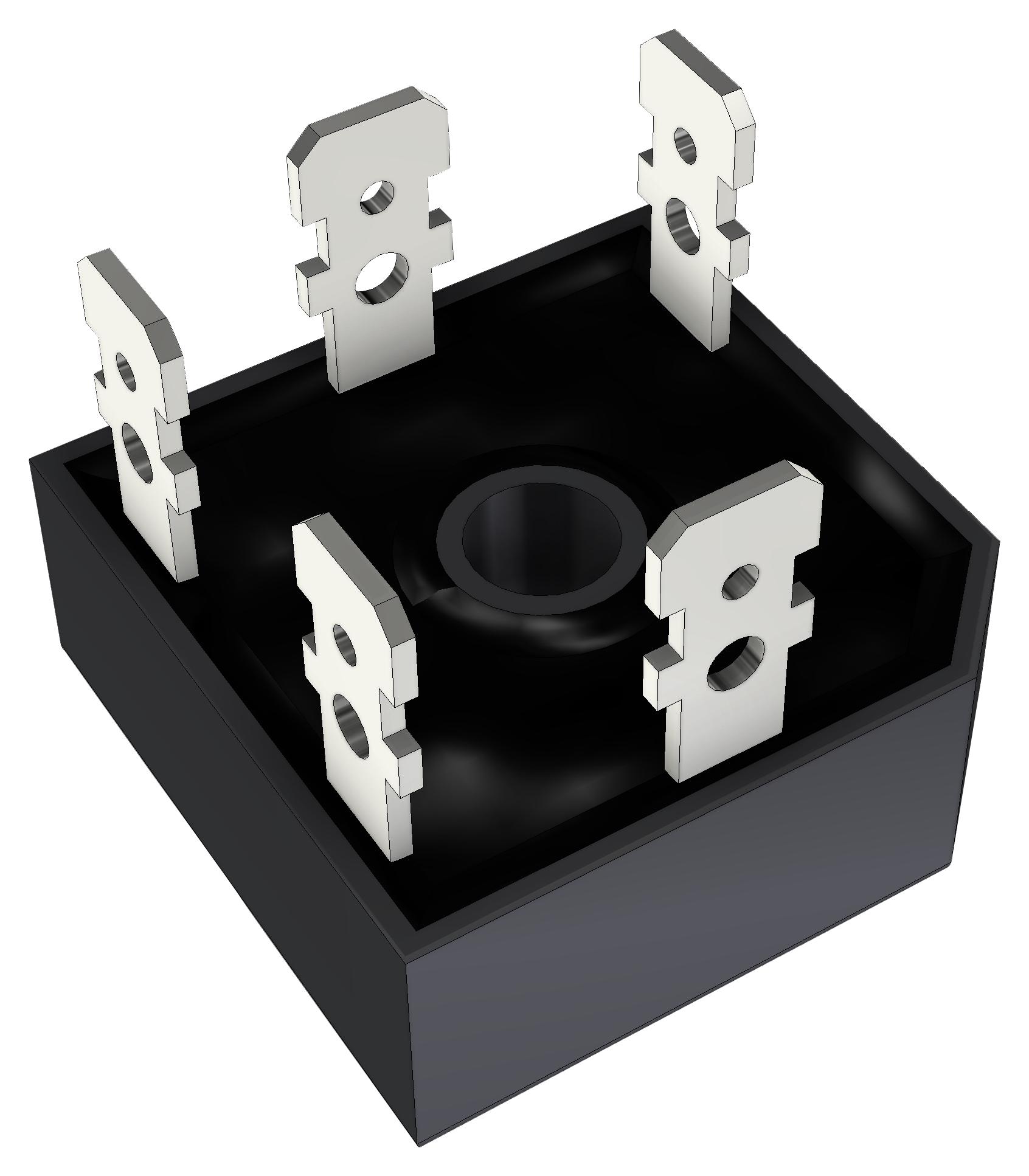

MULTICOMP PRO SBR3516 Three Phase Bridge Rectifier
The three-phase bridge rectifier is silicon passivated, designed for high current capability and reliability. Suitable for industrial applications, it features diffused junctions, low forward voltage drop, and high surge current capacity. Mounted on a heat sink, it handles resistive and inductive loads with maximum peak repetitive voltages up to 1600V and continuous operation from -55°C to +160°C. It is ideal for converting AC to DC in power supplies, motor drives, and industrial automation systems, ensuring efficient, reliable performance in demanding environments.
MULTICOMP PRO SBR3516 Three Phase Bridge Rectifier Specifications:
- Maximum Repetitive Voltage VRRM: 1600 V
- Working Peak Reverse Voltage VRWM: 50V to 1600V
- Peak Non-Repetitive Reverse Voltage VrsM: 75V to 1700V
- Peak Surge Current: 450A
- Maximum Average Forward Current: 35A
- Peak Forward Voltage Drop: 12V at 12.5A/17.5A
- Reverse Current at 25°C: 10 pA
- Isolation Voltage from Case to Lead: 2,500 V
- Operating Temperature Range: -55°C to +160°C
- Storage Temperature Range: -55°C to +160°C
- Thermal Resistance Junction to Case: 1.16 kW
- Thermal Resistance Case to Heatsink: 0.2 °C/W
- Dimensions: Diameter 4.9 inches (approximately 124 mm), height 23.8 inches (approximately 603 mm)
- Mounting: Bolt down on heatsink with thermal compound, torque max 20 in-lbs
- Material: Epoxy case with heat sink, plated leads solderable per MIL-STD-202
Buy the Multicomp Three Phase Bridge Rectifier – Reliable Power Conversion for Industrial Applications
Purchase the high-performance three-phase bridge rectifier today for industrial power conversion needs. This silicon passivated component is built for high reliability, withstanding voltages up to 1600V and currents of 35A. It operates efficiently across a wide temperature range from -55°C to +160°C and features low forward voltage drop for energy-efficient conversions. Engineered with diffused junctions and high surge current capacity, it is suitable for motor drives, power supplies, and automation systems, ensuring long-lasting, dependable service for demanding industrial environments.
Get Multicomp three-phase bridge rectifier today—designed for high current and long-lasting durability in industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR3516?
You can click on the BUY or RFQ button to purchase SBR3516 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR3516?
You can download the SBR3516 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR3516?
MULTICOMP PRO
