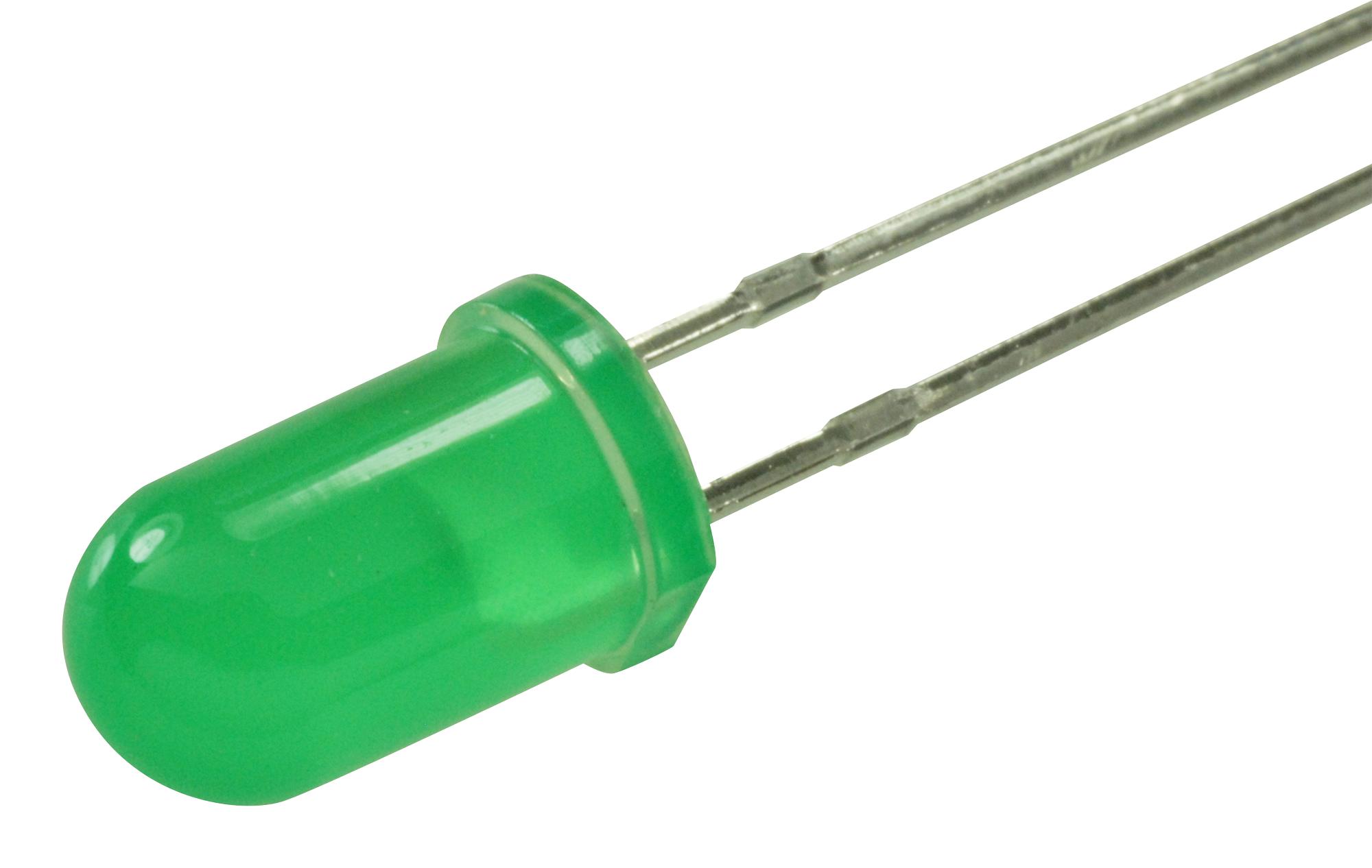

MULTICOMP PRO MCL053LGD Green 5mm LED
The MCL053LGD is a green, 5mm through-hole LED with a diffused lens, designed with Gallium Phosphide (GaP) die. It features a peak wavelength of 568nm, a viewing angle of 145°, and luminous intensity of 7 med at 20mA. Operating within a temperature range of -40°C to 85°C, it supports up to 5V reverse voltage, with a maximum reverse current of 10µA. The LED has a forward voltage of approximately 1.9V at 20mA and can handle peak currents of 100mA at 1/10 duty cycle, making it ideal for industrial indicator applications.
MULTICOMP PRO MCL053LGD Green 5mm LED Specifications:
- Dice Material: GaP
- Emitted Colour: Green
- Lens Colour: Green Diffused
- Peak Wavelength: 568nm
- Viewing Angle: 145°
- Luminous Intensity: 7 med at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10µA at 5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds at 2.4mm from body
- Forward Voltage: approximately 1.9V at 20mA
- Peak Forward Current: 100mA at 1/10 duty cycle
- Spectral Line Half-Width: 30nm
Buy the Multicomp Series LED: Green 5mm Diffused GaP Part Number MCL053LGD
Order the Multicomp Series Green 5mm LED MCL053LGD online now for industrial indicator lighting. Featuring a diffused lens, GaP die, and wide temperature range, this LED offers high luminous intensity, excellent durability, and precise emission at 568nm wavelength. Its 145° viewing angle ensures uniform visibility, making it suitable for various industrial, status indicator, and illumination applications. With reliable electrical ratings, easy soldering, and RoHS compliance, buy this high-quality LED online to enhance your projects with consistent performance and long-lasting brightness.
Get Multicomp Series LED MCL053LGD today—bright green illumination with reliable performance for industrial LEDs and indicator applications.
